9.21 PF roller holder ASSY
(1) Push the link arm in the direction of the arrow A, and turn the PF roller holder ASSY to
remove the boss.
(2) Slide the PF roller holder ASSY in the direction of the arrow B to remove it from the
shaft, and remove the PF roller holder ASSY.

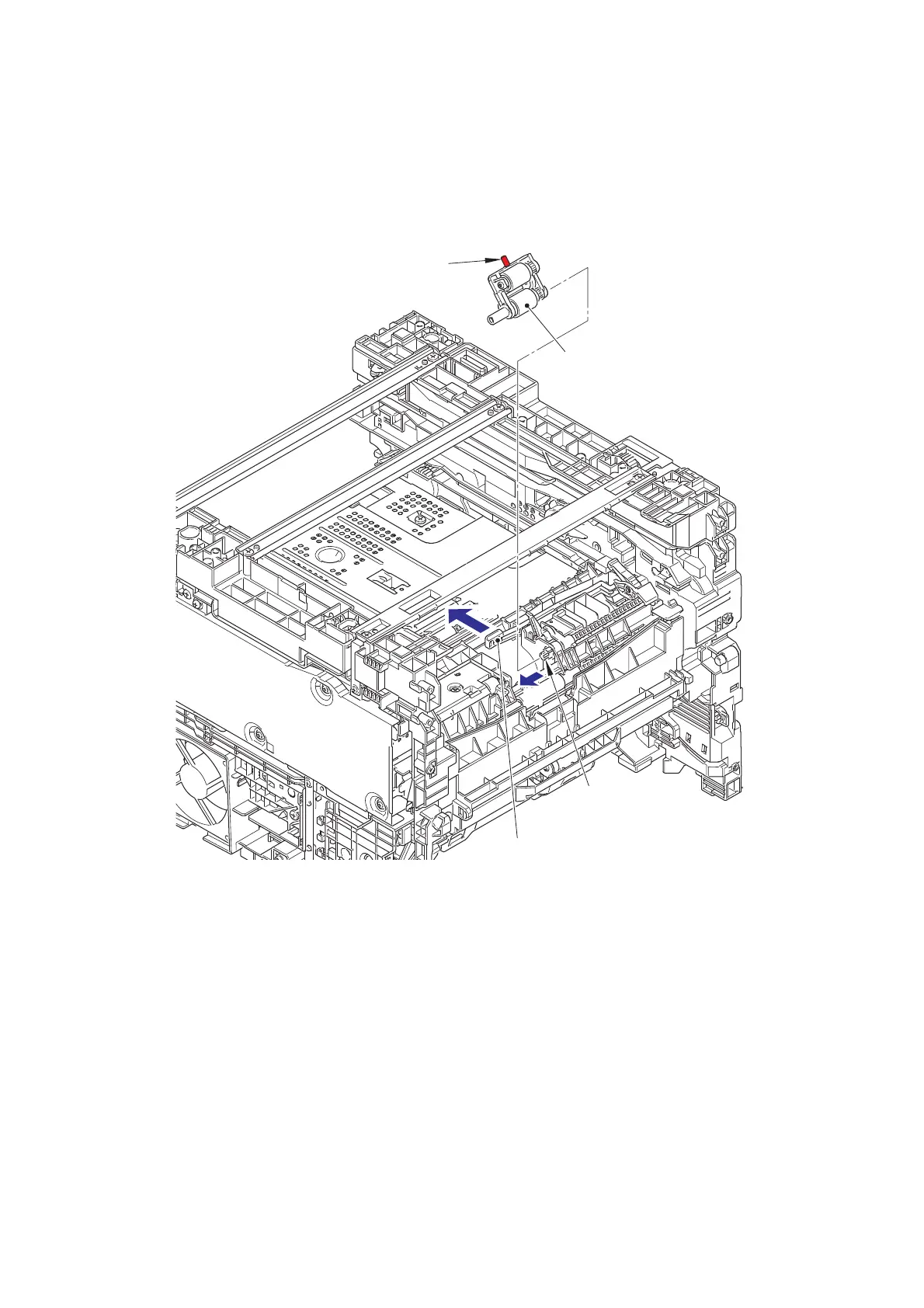

Fig. 3-81
PF roller holder ASSY
Boss
Shaft
Link arm
A
B
<Front side>
<Back side>
