Confidential
5-43
- When assembling each of the SB roller ASSY, LF roller 2/3/4 ASSYs and Exit roller
ASSY, make sure to assemble it onto the correct position.

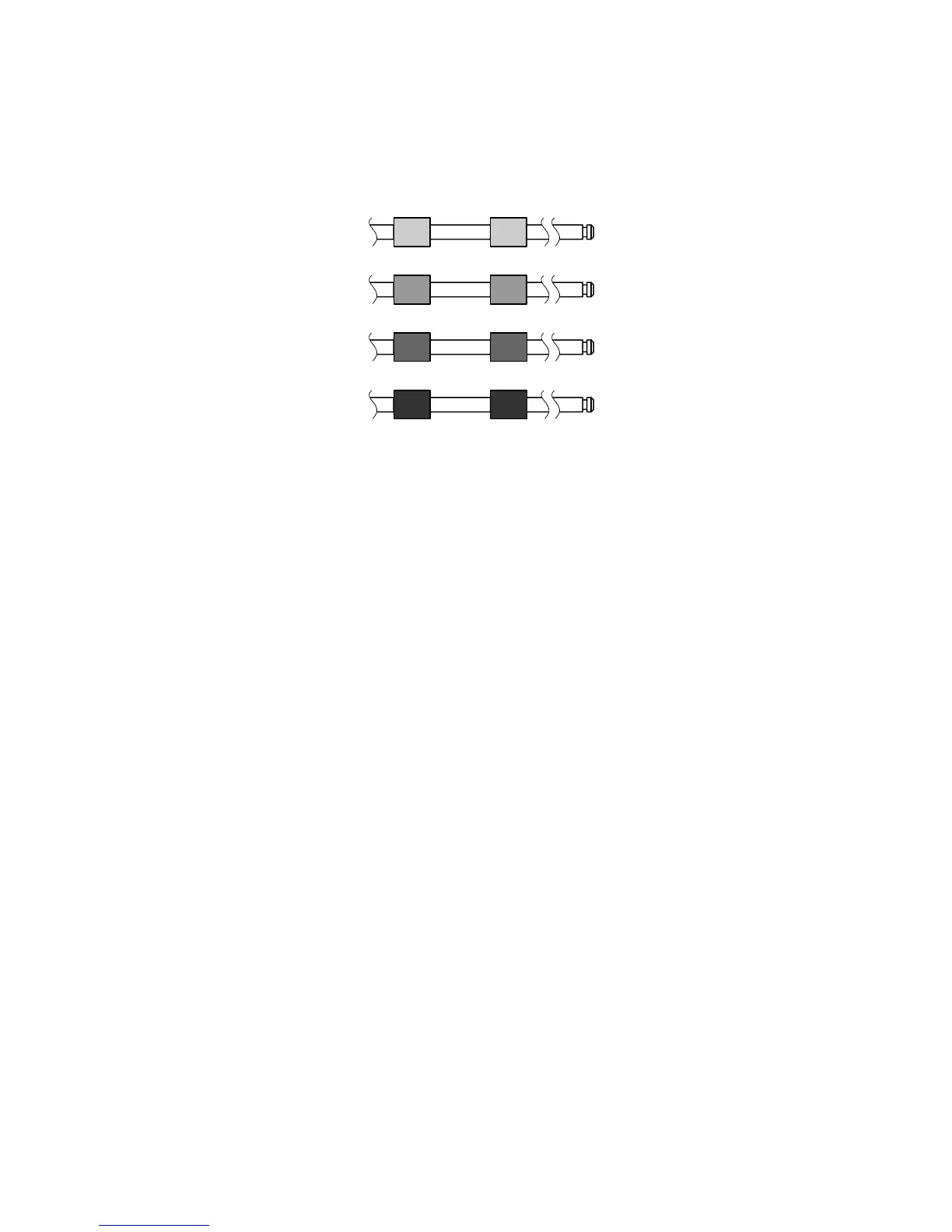

Four degrees of the color gradation of the roller allow you to identify each roller.
Fig. 5-40
* The LF roller 2 ASSY and Exit roller are the same.
* It is recommended to mark each of the roller ASSYs when disassembling them.
Failure to assemble each roller ASSY onto the correct position may cause paper jam
or stretching image.
Lighte
r
Darke
r
LF roller 3 ASSY
SB roller ASSY
(For the models with the DX only)
LF roller 2 ASSY, Exit roller ASSY
LF roller 4 ASSY
