Brother DPC-8060 - Side Cover R; Thermistor ASSY

Confidential
5-100

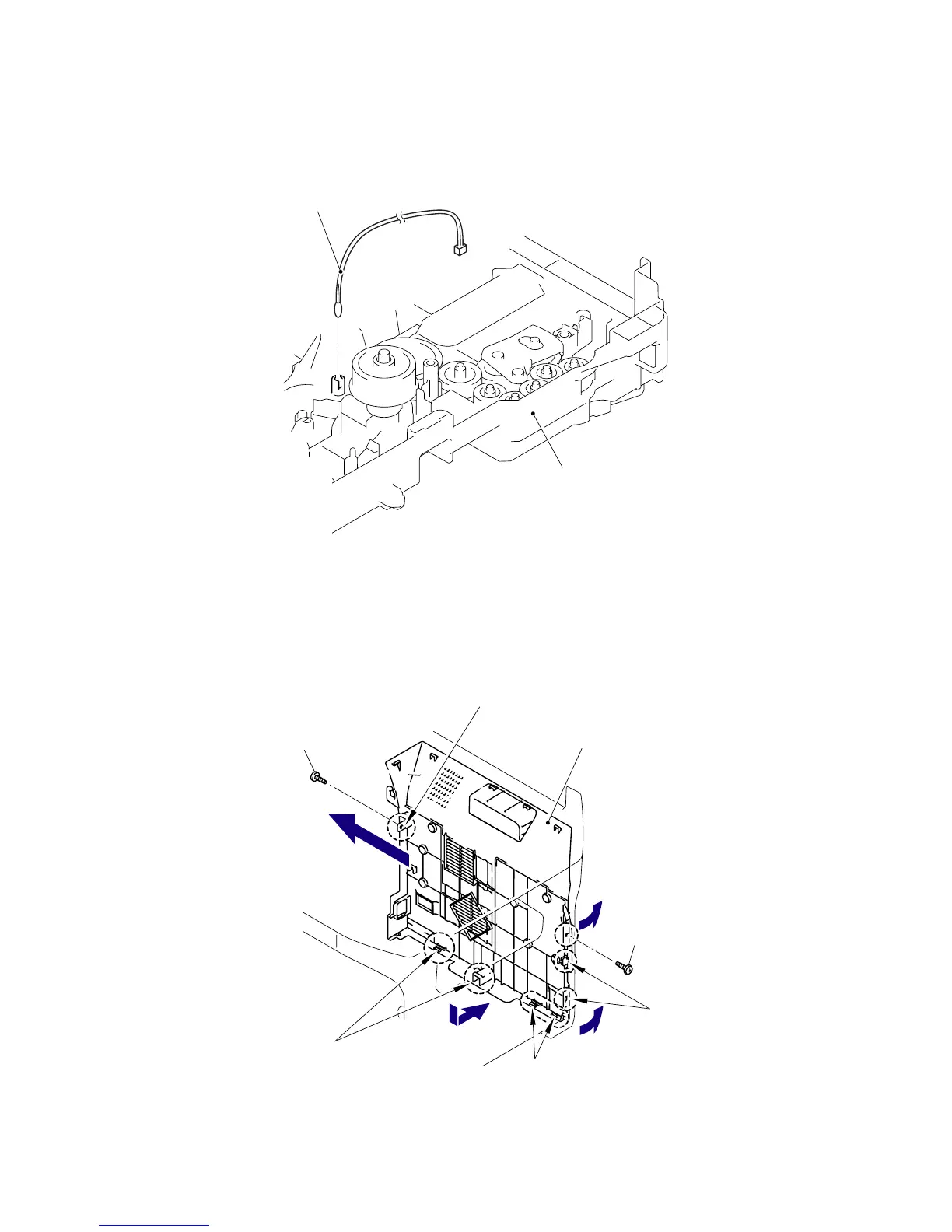

5.1.79 Thermistor ASSY
(1) Remove the Thermistor ASSY from the Frame L.
Fig. 5-150
5.1.80 Side Cover R
(1) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 1a to 1d.
Fig. 5-151
Taptite, bind B M4x12
Taptite, bind B M4x12
Side cover R
Hooks
Hooks
Hooks
Hoo
k
1a
1b
1c
1d
Frame L
Thermistor ASSY
<Front side>
