Brother DPC-8060 - Gear 24 LT

Confidential
5-133
5.2.9 Gear 24 LT

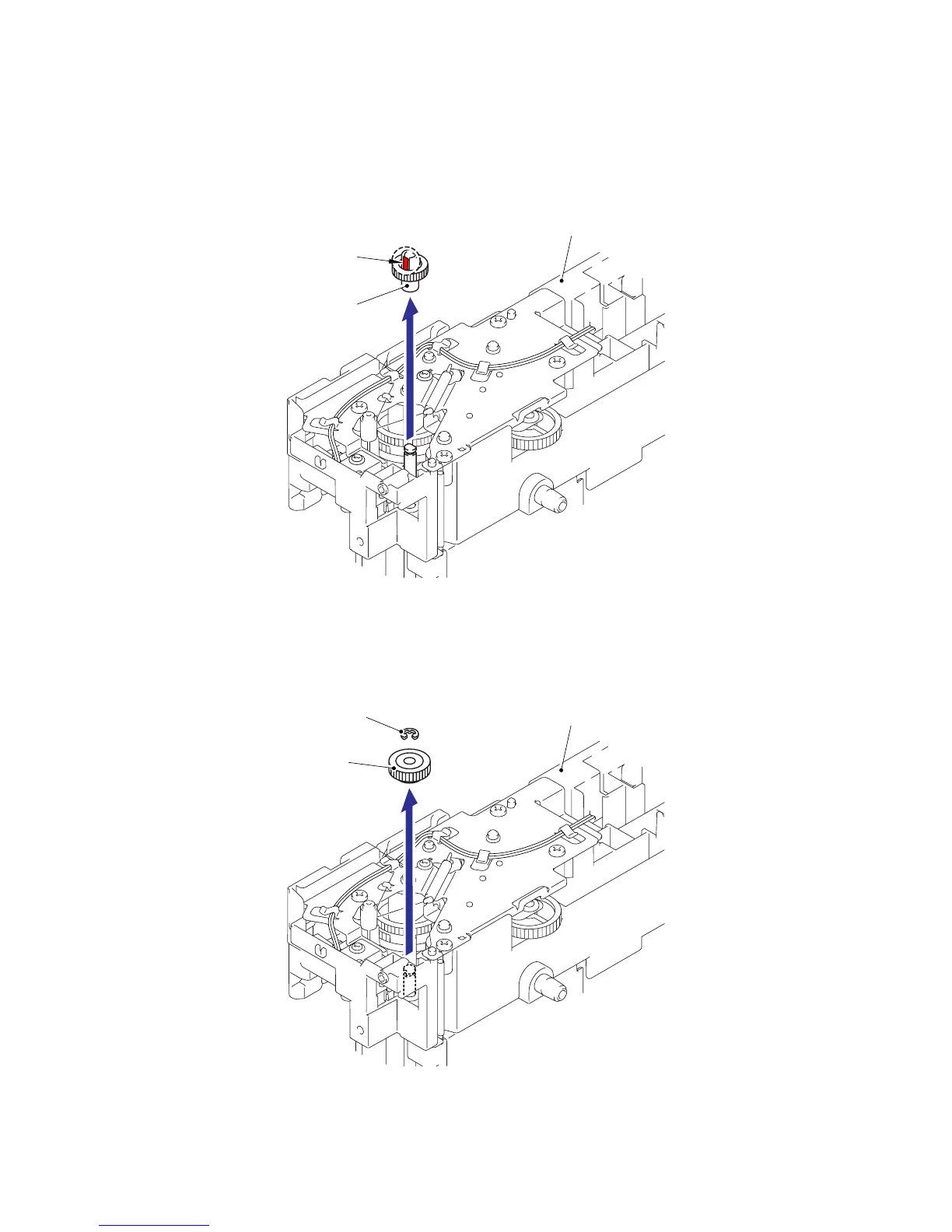

(1) Place the LT so that the LT frame L is at the top.
(2) Release the Hook to remove the Gear 20 T1 roller drive from the LT frame L.
Fig. 5-212
(3) Remove the Retaining ring E4.
(4) Remove the Gear 24 LT from the LT frame L.
Fig. 5-213
LT frame L
Hoo
k
Gear 20 T1 roller drive
LT frame L
Gear 24 LT
Retaining ring E4
<Left side>
