Brother DPC-8060 - ADF Motor

Confidential
5-44

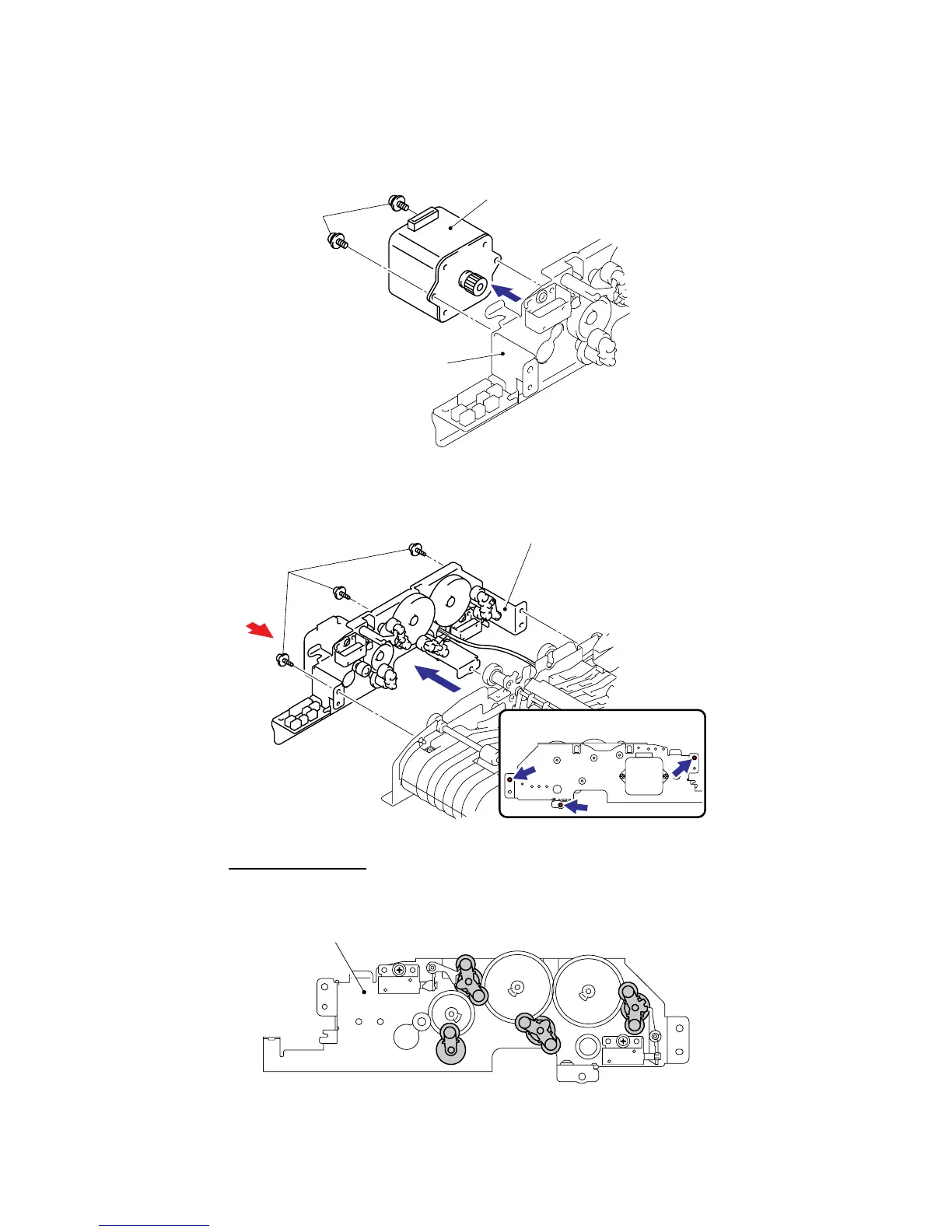

5.1.23 ADF Motor
(1) Remove the two screw pan (S/P washer) M3x6, and then remove the ADF motor.
Fig. 5-41
(2) Remove the three cup S M3x8 Taptite screws, and then remove the Motor frame ASSY.
Fig. 5-42

Assembling Notes
When assembling the Motor frame ASSY, ensure that the gears (indicated with gray)
are placed in the positions as shown in the figure below.
Fig. 5-43
Motor frame ASSY
Taptite, cup S M3x8
Motor frame ASSY
ADF moto
r
Motor frame ASSY
Screw pan (S/P
w
asher)
M3x6
<Back side>
View A
Screw positions
<View A>
