Brother DPC-8060 - Exit Roller ASSY

Confidential
5-52
5.1.33 Exit Roller ASSY
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Exit roller ASSY from the
ADF chute ASSY.

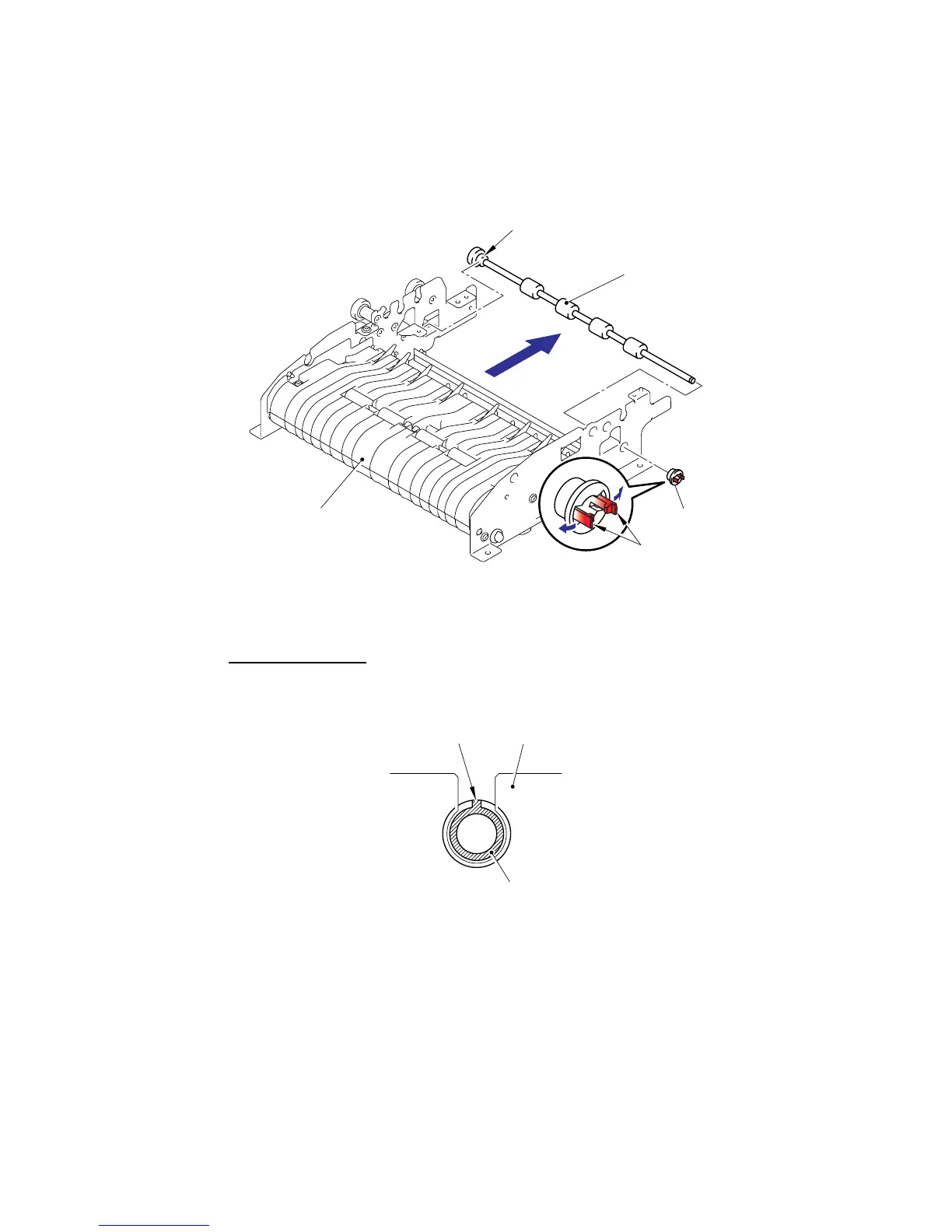

Fig. 5-57

Assembling Notes
When assembling the Exit roller ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Fig. 5-58
Conductive bushing A
Exit
r
oller ASSY
Hooks
<Front side>
ADF chute ASSY
Bushing
Boss
Bushing
ADF chute ASSY
