5.1.30 ADF Film/Spring Plate ADF Front A ASSY/Separation Rubber/Rubber Holder/
Separation Spring
(1) Remove the ADF film.
(2) Remove the B M3x6 Taptite screw, and then remove the Spring plate ADF front A ASSY.
(3) Remove the Separation rubber.
(4) Remove the Rubber holder.
(5) Remove the Separation spring.

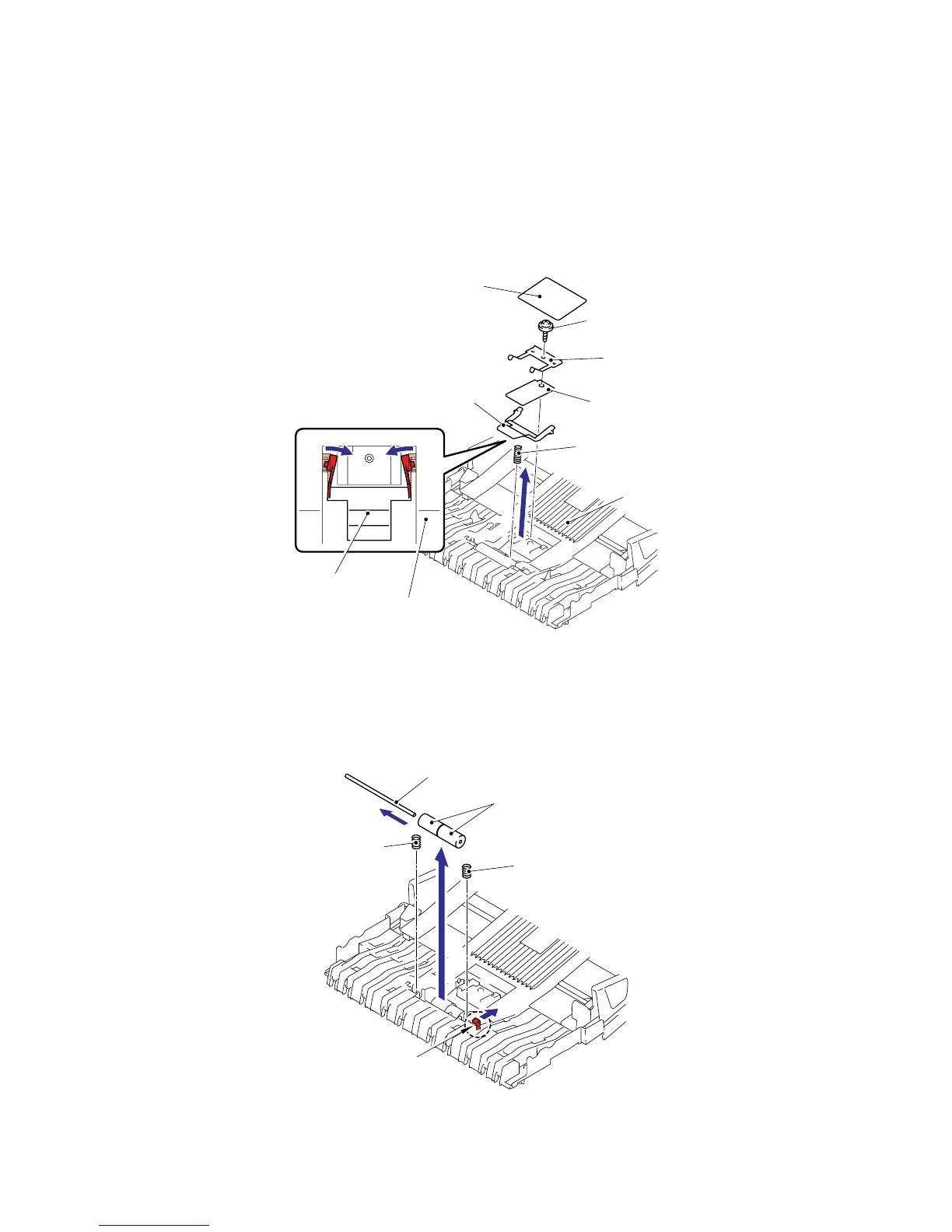

Fig. 5-53
5.1.31 Presser Roller/LF Spring
(1) Push the Hook to the direction of the arrow (1a) as shown in the figure below while holding
the Presser roller, and remove the Presser roller shaft from the hook.
(2) Pull the Presser roller shaft out of the Presser roller.
(3) Remove the two LF springs.
Fig. 5-54
ADF fil
To Next Page
