5.1.34 LF Roller 3 ASSY
(1) Turn the ADF chute ASSY upside down. Release the Hooks of the Conductive bushing A
to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the LF roller 3 ASSY from
the ADF chute ASSY.

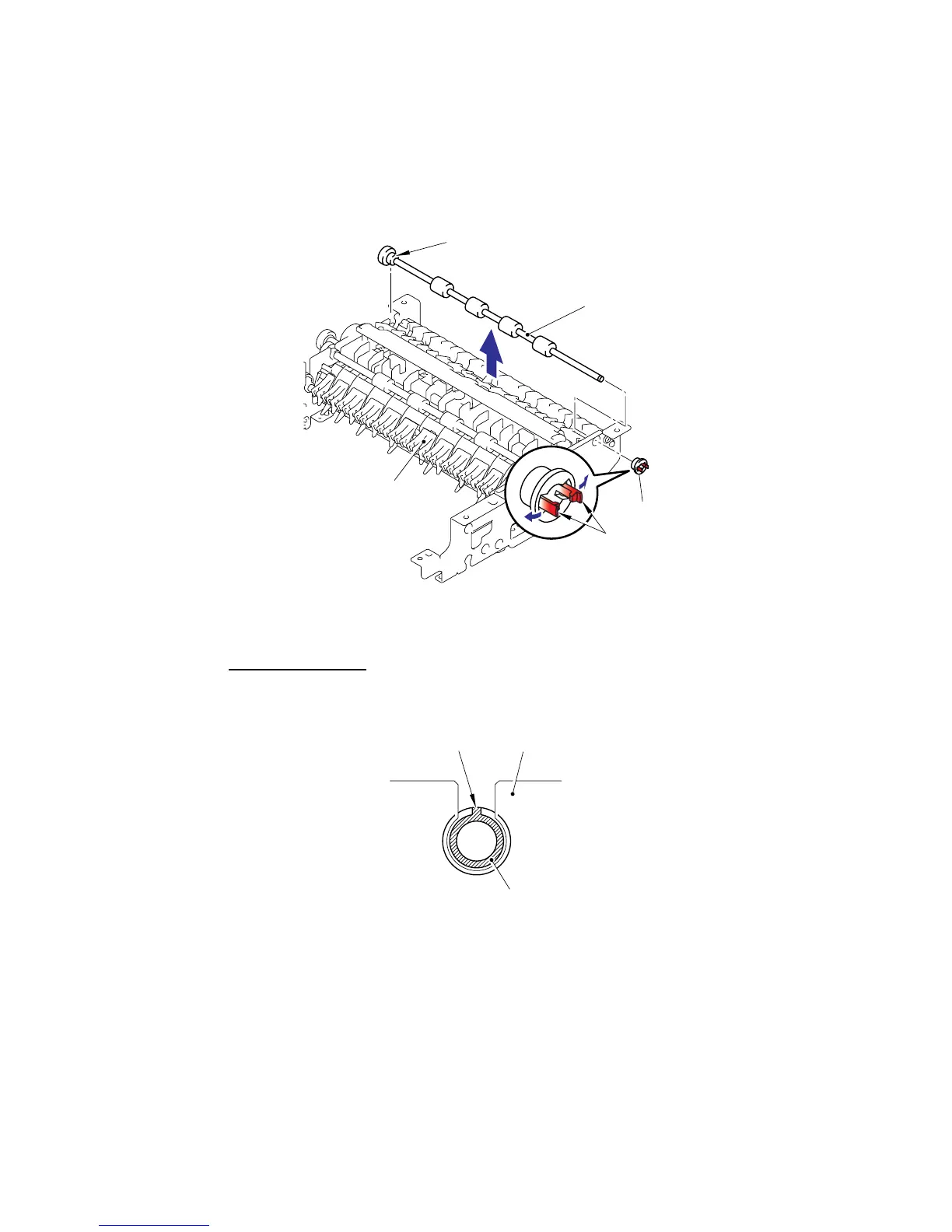

Fig. 5-59

Assembling Notes
When assembling the LF roller 3 ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Fig. 5-60
LF roller 3 ASSY
Conductive bushing A
Hooks
<Front side>
Bushing
ADF chute ASSY
Bushing
Boss
ADF chute ASSY
