3-8

Confidential

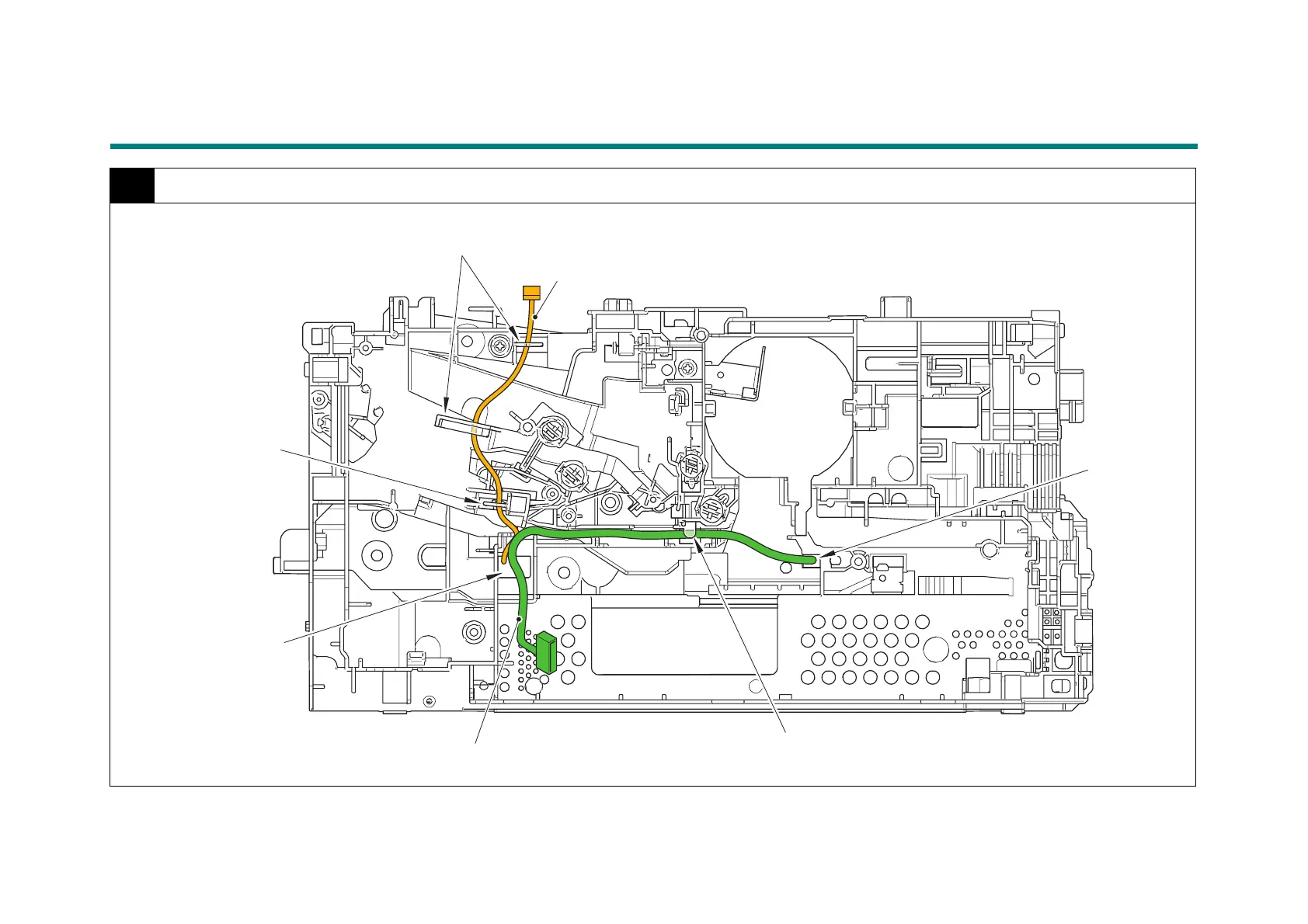

7. HARNESS ROUTING

1 Right side of the machine

Harness colors are subject to change for some reason.

Registration front/rear sensor PCB harness (RD, BL, WH, BK)

Guide

LVPS harness (WH)

Guide

Guides

Hole

Hole
