Brother HL-2260D - Roller Holder ASSY

3-36
Confidential
9.17 Roller Holder ASSY
(1) Push the link arm in the direction of arrow A. Rotate the roller holder ASSY, and release
the boss.
(2) Slide the roller holder ASSY in the direction of arrow B, and remove it from the shaft.
Remove the roller holder ASSY.

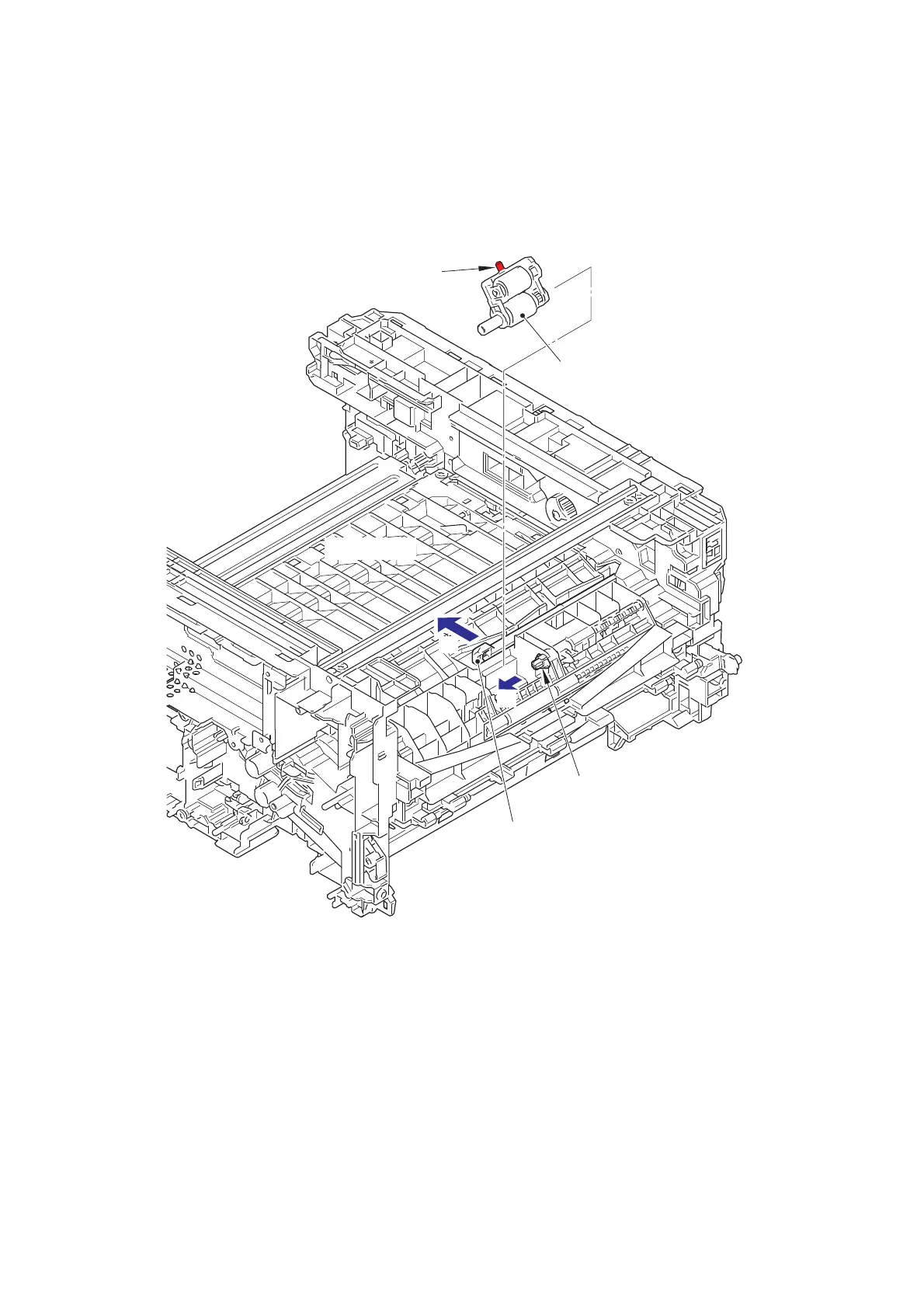

Fig. 3-35
Roller holder ASSY
Boss
Shaft
Link arm
A
B
<Front side>
<Bottom side>
