Assembling Note:

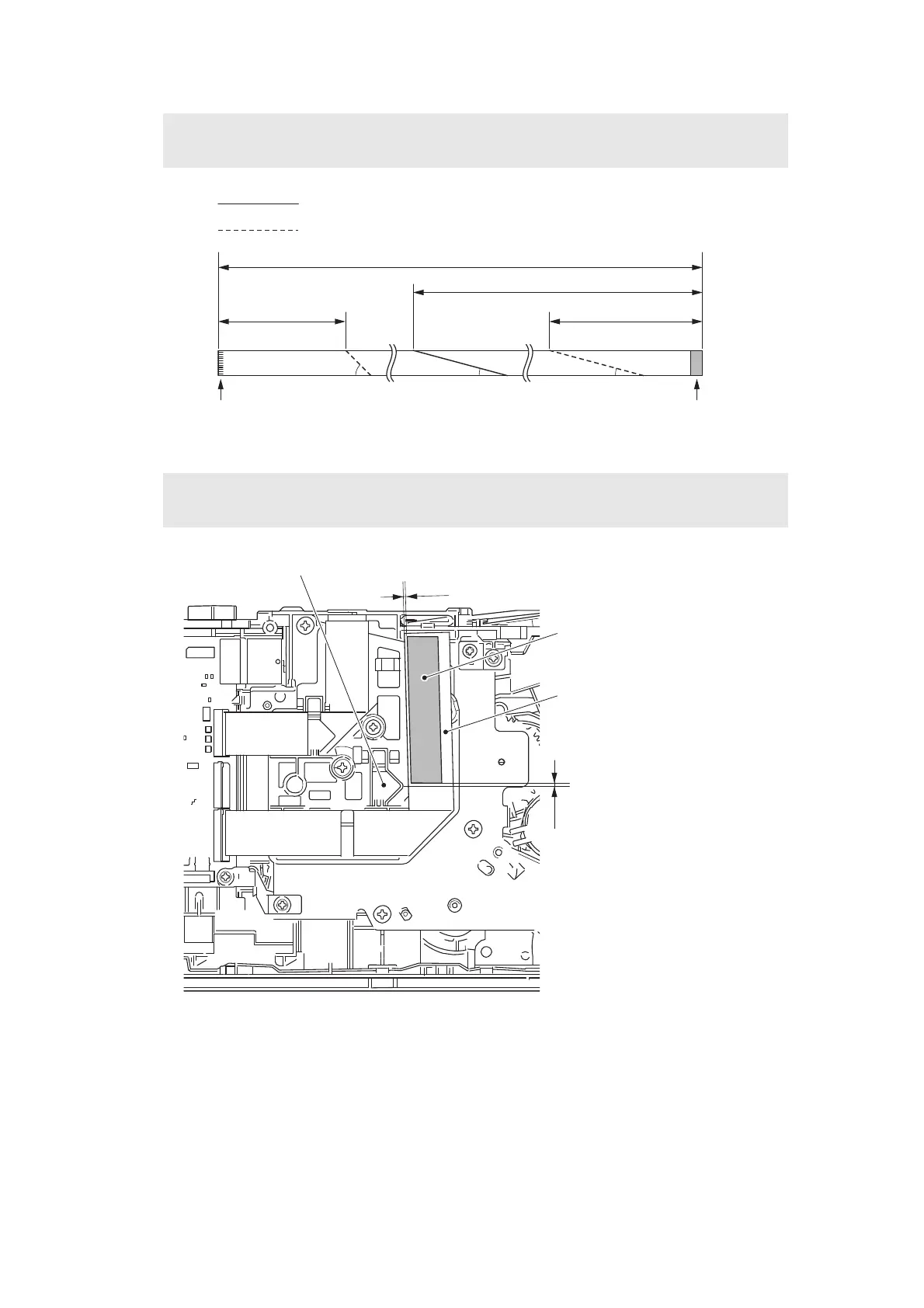

• Fold the HVPS flat cable at the positions described below.
Assembling Note:
• Attach the flat cable sponge to the location shown in the figure below.
Mountain fold
Valley fold
590
10 mm
297
1 mm
133
1 mm
15°15°45°
1111 mm
Electrode Reinforcing plate
Main PCB side HVPS side
03 mm from triangle vertex
0 to 2 mm from flat cable edge
Flat cable sponge
HVPS flat cable
Flat cable guide
