HL-5030/5040/5050/5070N SERVICE MANUAL
4-25

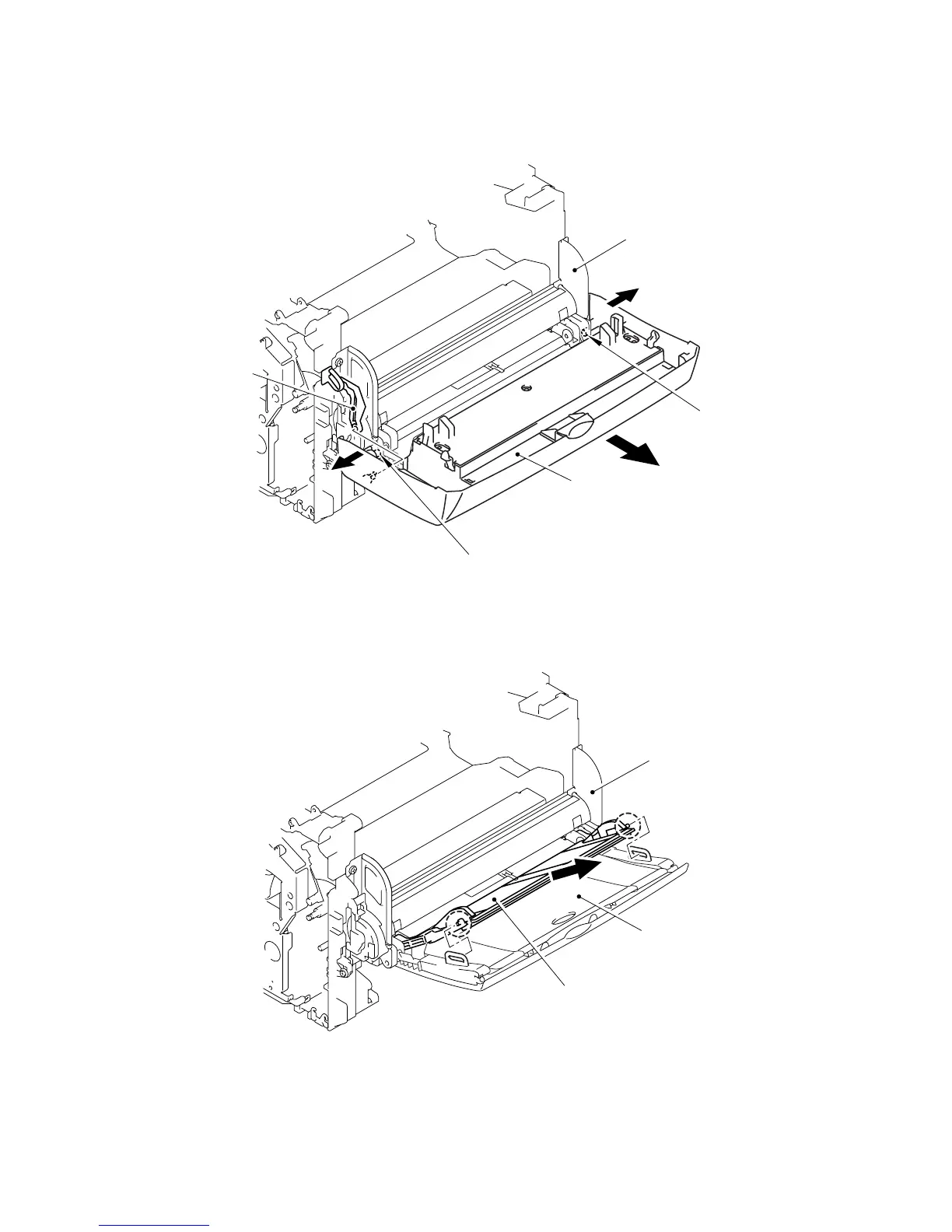

(8) Remove the shaft of the MP front cover ASSY from the drive release link, and then
remove the MP front cover ASSY from the MP chute ASSY.
Fig. 4-42
(9) Remove the bosses from the guide at 2 spots in the MP tray ASSY, and then remove the
MP paper guide ASSY.
Fig. 4-43
MP tray ASSY
MP front cover ASSY
Drive release link
MP chute ASSY
MP chute ASSY
MP paper guide ASSY
Shaft
Shaft
