Brother HL-5040 - High-Voltage PS PCB ASSY

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-44
3.18 High-voltage PS PCB ASSY
(1) Remove the bind B M4x12 Taptite screw, and then remove the high-voltage PS PCB
ASSY.
(2) Disconnect the flat cable from the high-voltage PS PCB ASSY.

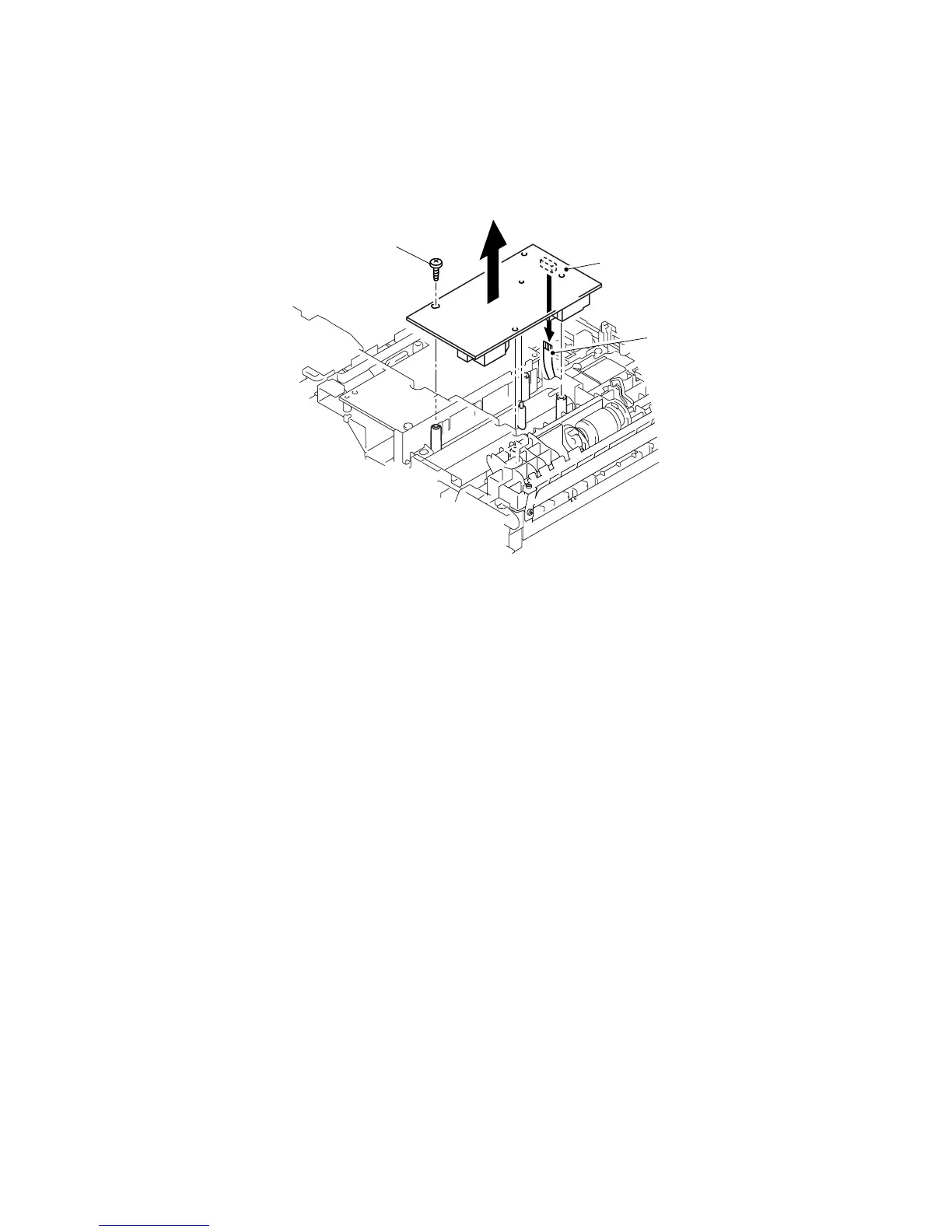

Fig. 4-77
Taptite, bind B M4x12
Flat cable
High-voltage PS PCB ASSY
