7.4 Location of Grounding Contacts
7.4.1 Drum unit

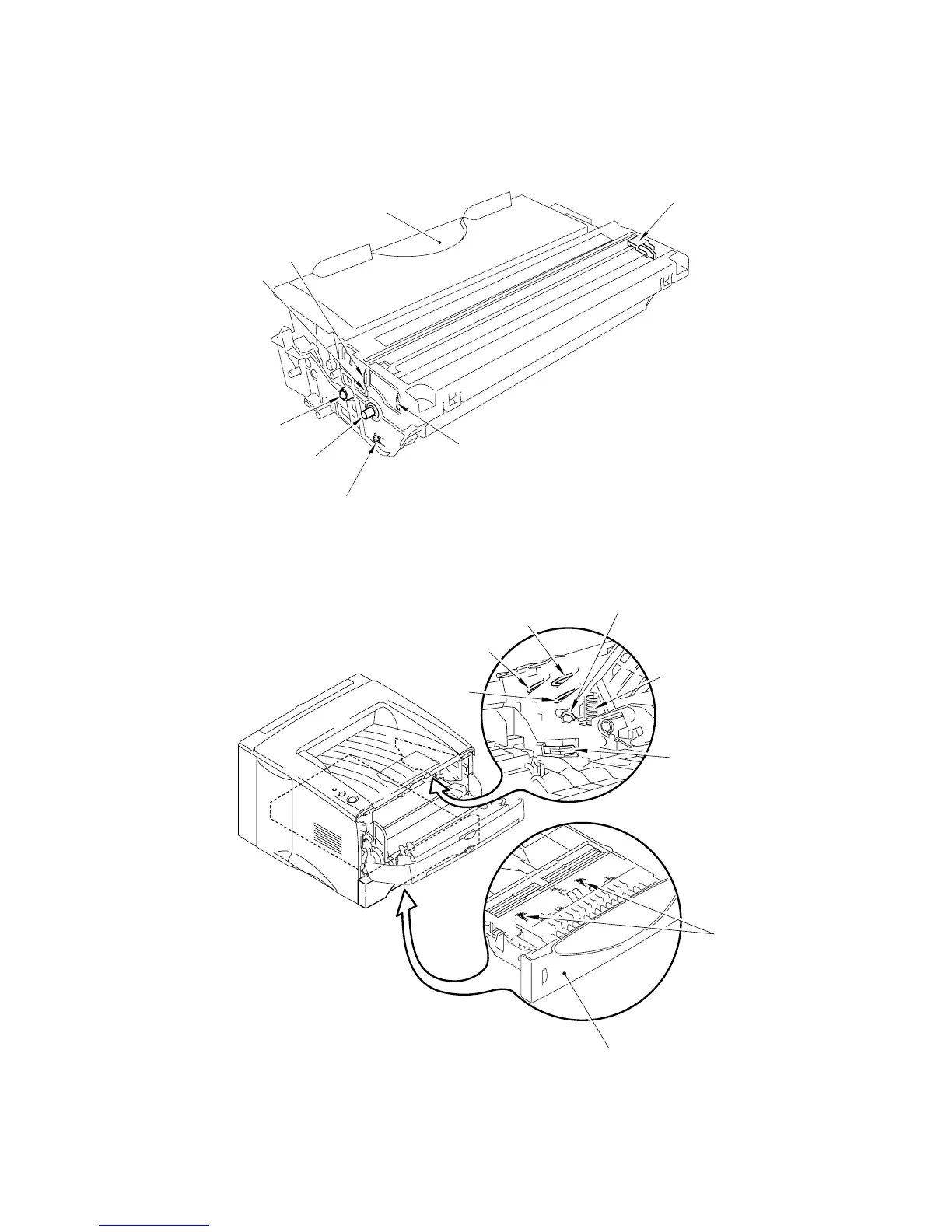

Fig. 6-5
7.4.2 Printer body & Paper cassette
Fig. 6-6
Drum Unit
Paper Cassette
(2) Wire cleaner
(3) Charge
(1) Photosensitive drum
(7) Ground
(5) Grid
(5) Grid
(3) Charge
(1) Photosensitive drum
(6) Transfer roller
(6) Transfer rolle
r
(4) Development rolle
r
(4) Development roller
(8) Cleaner
(8) Cleane
r
