HL-5030/5040/5050/5070N SERVICE MANUAL
5-9
2.1 Fixing Unit
<Replacement procedure>

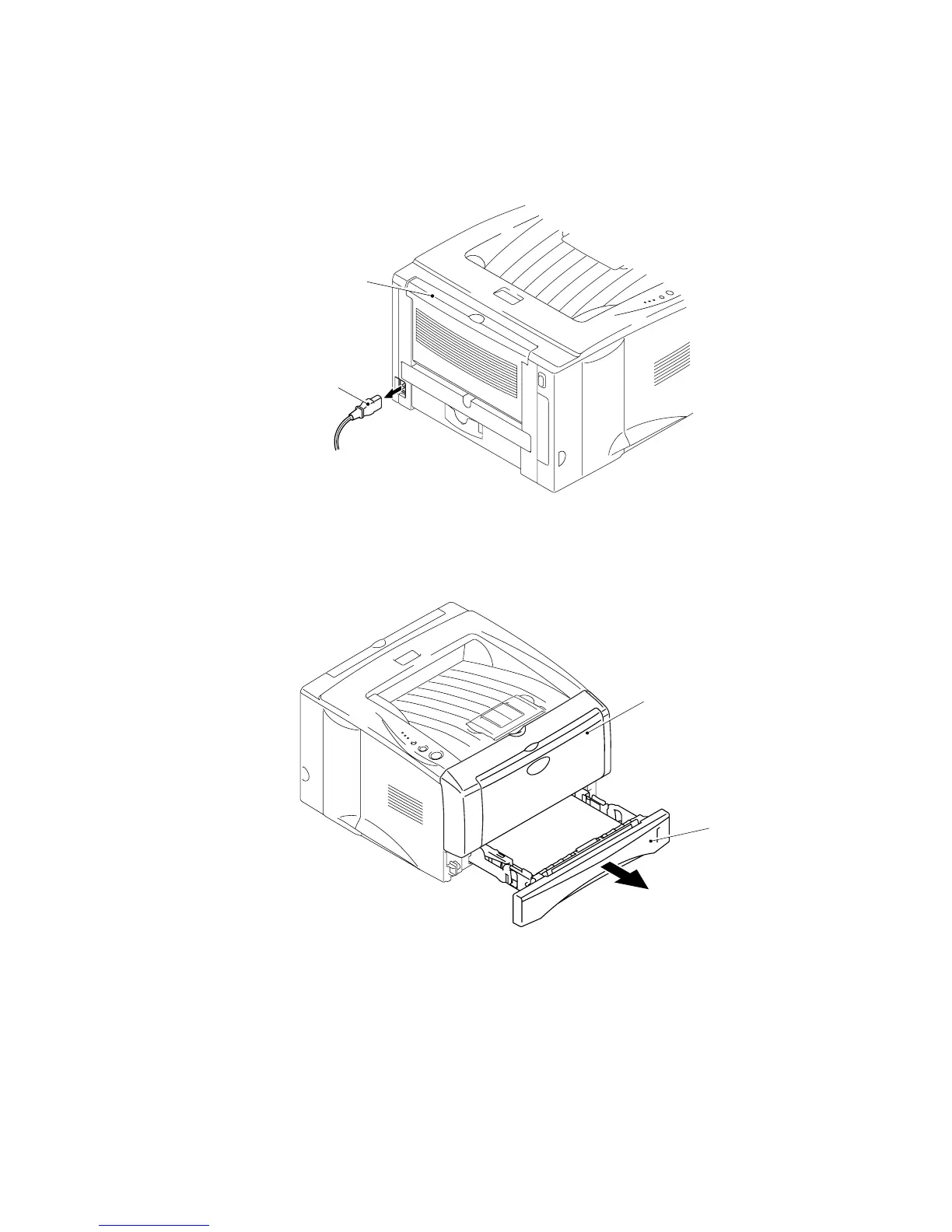

1) Disconnect the AC cord from the printer.
Fig.5-15
2) Close the front cover and pull out the paper tray.
Fig.5-16
Front cover
A
C cord
Paper Tray
Printer
