(12) Open the MP chute ASSY cover.
(13) Remove the MP-PE actuator.

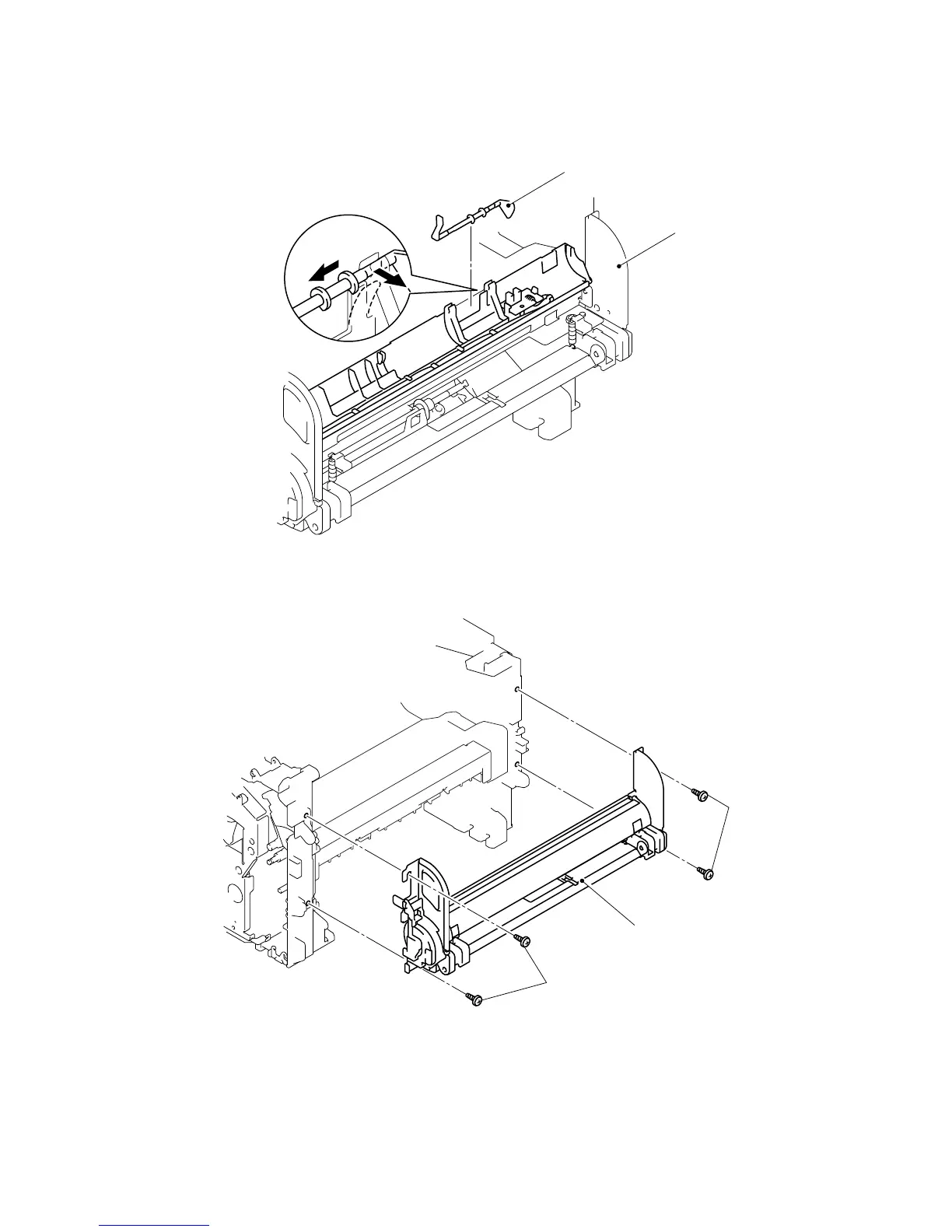

Fig. 4-46
(14) Remove the four bind B M4x12 Taptite screws, and then remove the MP chute ASSY.
Fig. 4-47
MP-PE actuator
Taptite, bind B M4x12
Taptite, bind B M4x12
MP chute ASSY
MP chute ASSY
