HL-5030/5040/5050/5070N SERVICE MANUAL
4-49

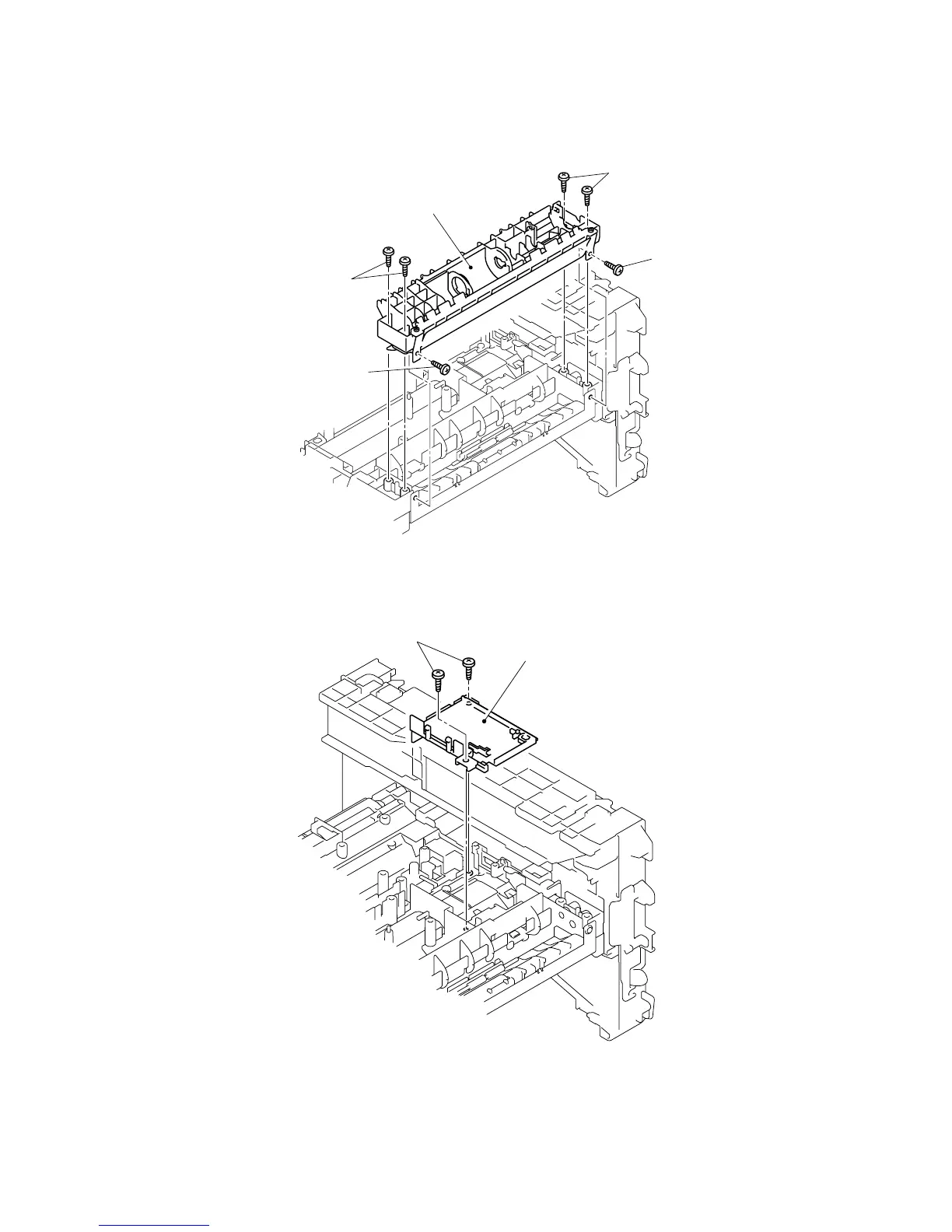

(16) Remove the two cup S M3x6 Taptite screws and the four bind B M4x12 Taptite screws.
(17) Remove the front chute ASSY.
Fig. 4-86
(18) Remove the two bind B M4x12 Taptite screws, and then remove the chute 3.
Fig. 4-87
Front chute ASSY
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, bind B M4x12
Chute 3
