HL-5030/5040/5050/5070N SERVICE MANUAL
5-11
5) Remove the two bind B M4x12 Taptite screws, and then remove the rear cover L.
6) Remove the two bind B M4x12 Taptite screws, and then remove the rear cover R.

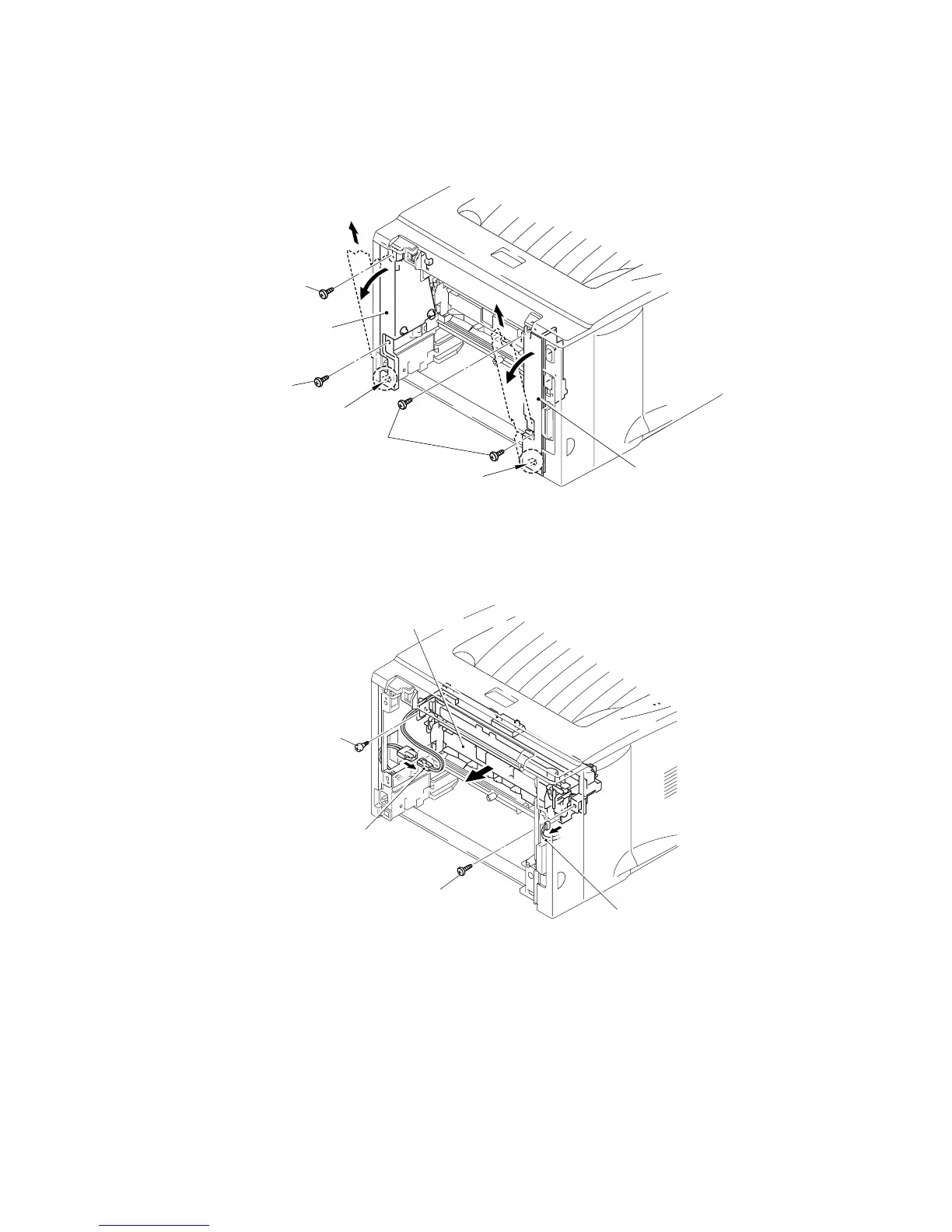

Fig.5-19
7) Disconnect the heater harness and thermistor harness.
8) Remove the bind B M4x12 Taptite screw and the shoulder screw, and then remove the
fixing unit.
Fig.5-20
Taptite, bind B
M4x12
Rear cover R
Rear cover L Hook
Taptite, bind B
M4x12
Taptite, bind B
M4x12
Hook
Taptite,
bind B
M4x12
Fixing unit
Shoulder screw
Heater harness
Taptite, bind B
M4x12
Thermistor
harness
