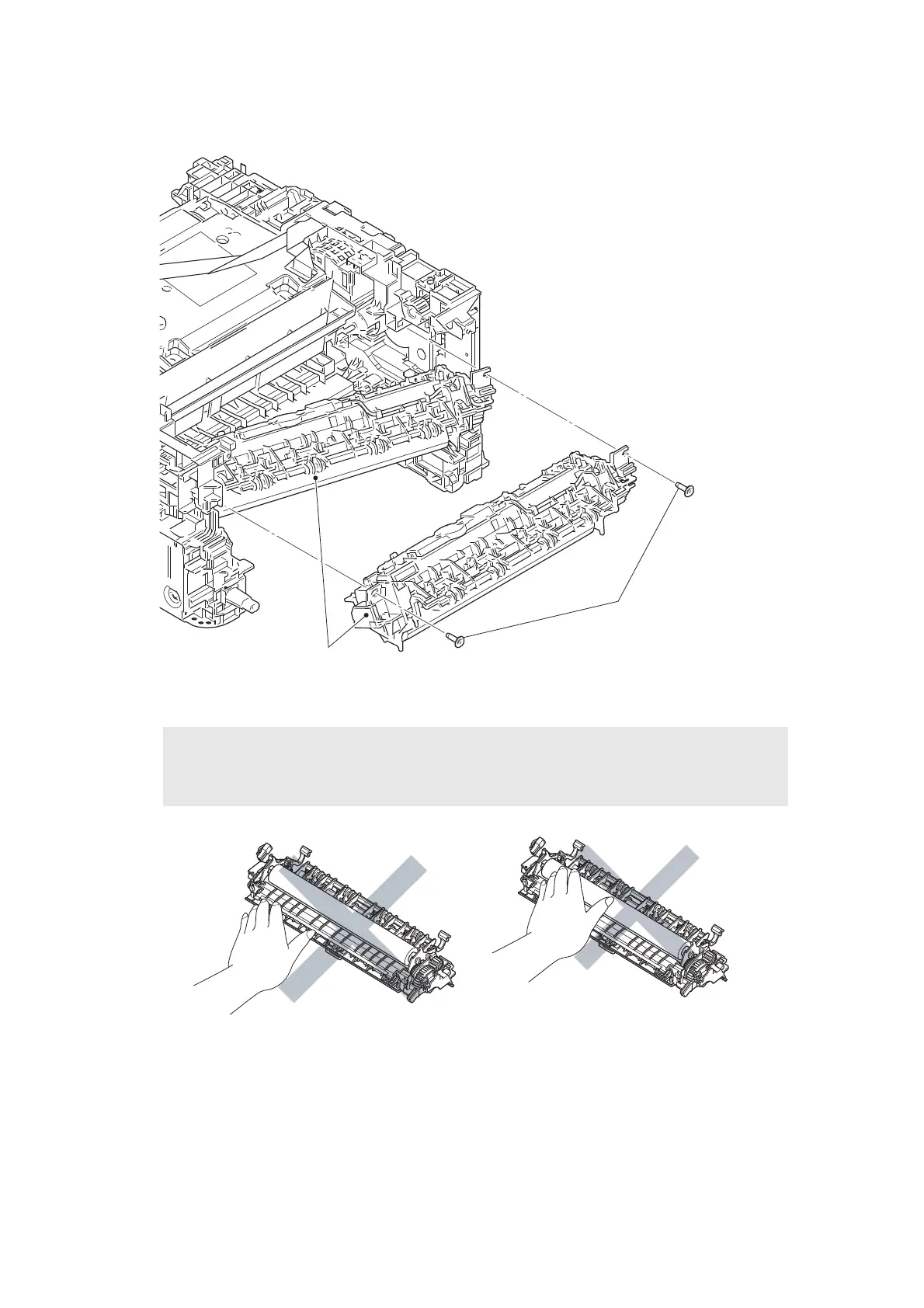

(4) Remove the two taptite pan B M4x14 screws, and remove the fuser unit.

Fig. 3-21

Fig. 3-22

Note:

• DO NOT apply a physical impact or vibration to the fuser unit.

• DO NOT touch the rollers and electrodes to prevent breakage of the fuser unit.

Taptite pan B M4x14

Fuser unit
