Brother HL-L2300D Service Manual

2-3
Confidential
 Others
(1) Condensation
When the machine is moved to a warm room from a cold location, condensation may
occur inside the machine, causing various problems as listed below.
• Condensation on the surface of optical devices such as the lens, reflecting mirror and
protection glass may cause light print image.
• If the exposure drum is cold, the electrical resistance of the photosensitive layer is
increased, making it impossible to obtain the correct print density.
• Condensation on the charge unit may cause corona charge leakage.
• Condensation on the plate or separation pad may cause paper feed problems.
If condensation has formed in the machine, leave the machine for at least two hours until
it reaches room temperature.
If the drum unit is unpacked soon after it is moved to a warm room from a cold location,
condensation may occur inside the unit which may cause printing failure. Leave the
drum unit for one or two hours until it reaches room temperature, and then unpack it.
(2) Low temperature
The motor may not operate normally in a cold environment because too much load is
applied to each drive. In this case, increase the room temperature.
 Cleaning
Use a soft lint-free cloth.

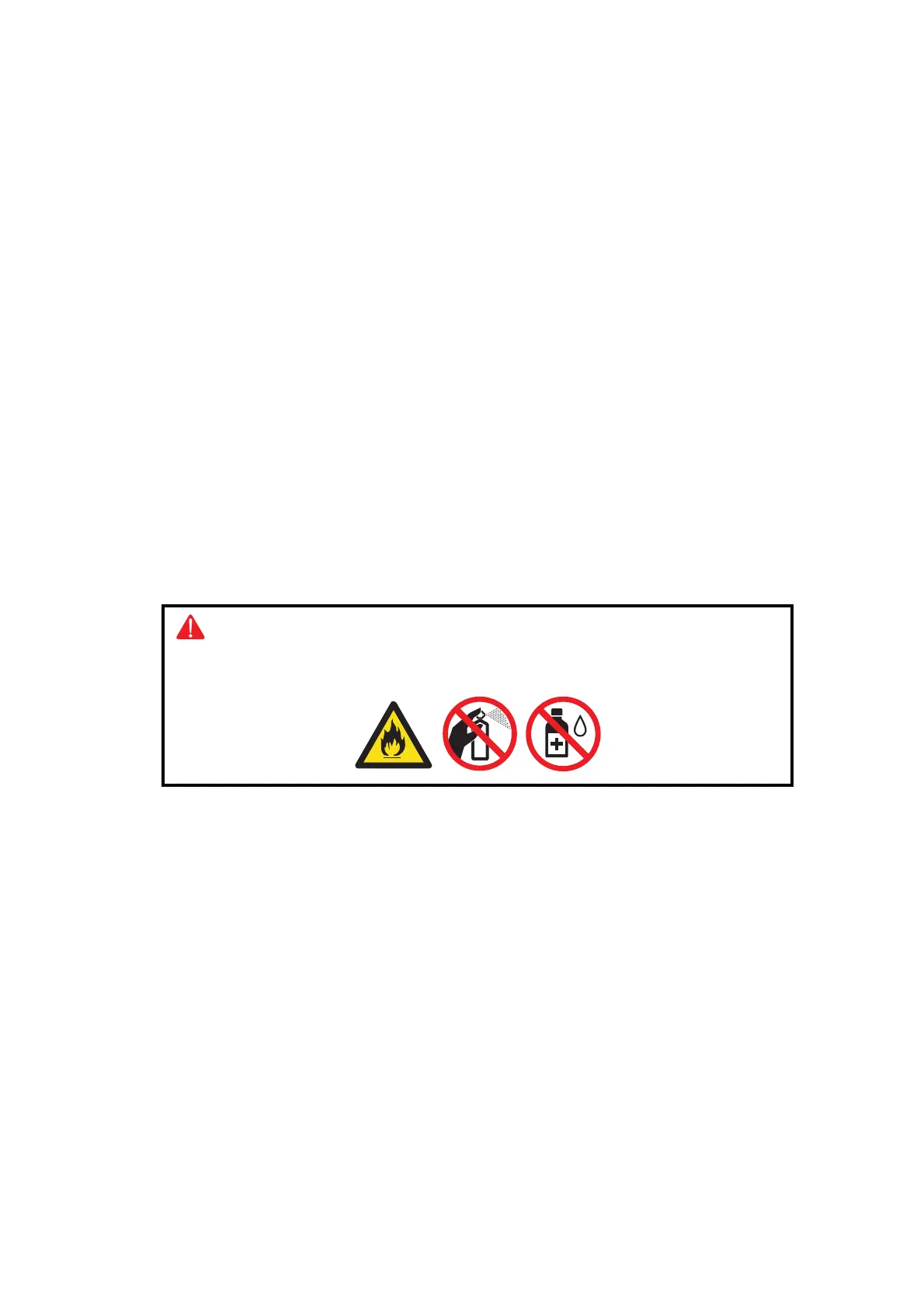

Warning
DO NOT use any flammable spray or flammable solvent such as alcohol, benzine,
or thinner to clean the machine. DO NOT use these articles near the machine.

Brother HL-L2300D Specifications

General

Color	No
N-up printing	2, 4, 6, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	6.5 ppm
Printing colors	Black
Maximum duty cycle	10000 pages per month
Recommended duty cycle	250 - 2000 pages per month
Number of print cartridges	1
Page description languages	GDI
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	210 x 297 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Mobile printing technologies	Not supported
Standard interfaces	USB 1.1, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor family	ARM Cortex
Noise level (idle)	30 dB
Maximum internal memory	- MB
Sound pressure level (printing)	49 dB
Sound pressure level (quiet mode)	45 dB
Display	LED
Certification	Nordic Swan
Display number of lines	1 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1080 W
Power consumption (off)	0.06 W
Power consumption (standby)	58 W
Power consumption (printing)	455 W
Power consumption (PowerSave)	5.4 W
Sustainability certificates	Blue Angel, ENERGY STAR
Minimum storage drive space	80 MB
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	441 mm
Package width	286 mm
Package height	504 mm
Package weight	8000 g
Cables included	AC

Weight and Dimensions

Depth	356 mm
Width	360 mm
Height	183 mm
