6. MECHANICAL
DESCRIPTIONS
KE-430HX/KE-430HS, BE-438
HX/BE-438HS
84
1.
Pulse motor Y assembly
2. Feed
gear
3.
Y-feed rack shaft
4.
Y-feed rack shaft clamp
5.
Feed bar sub assembly

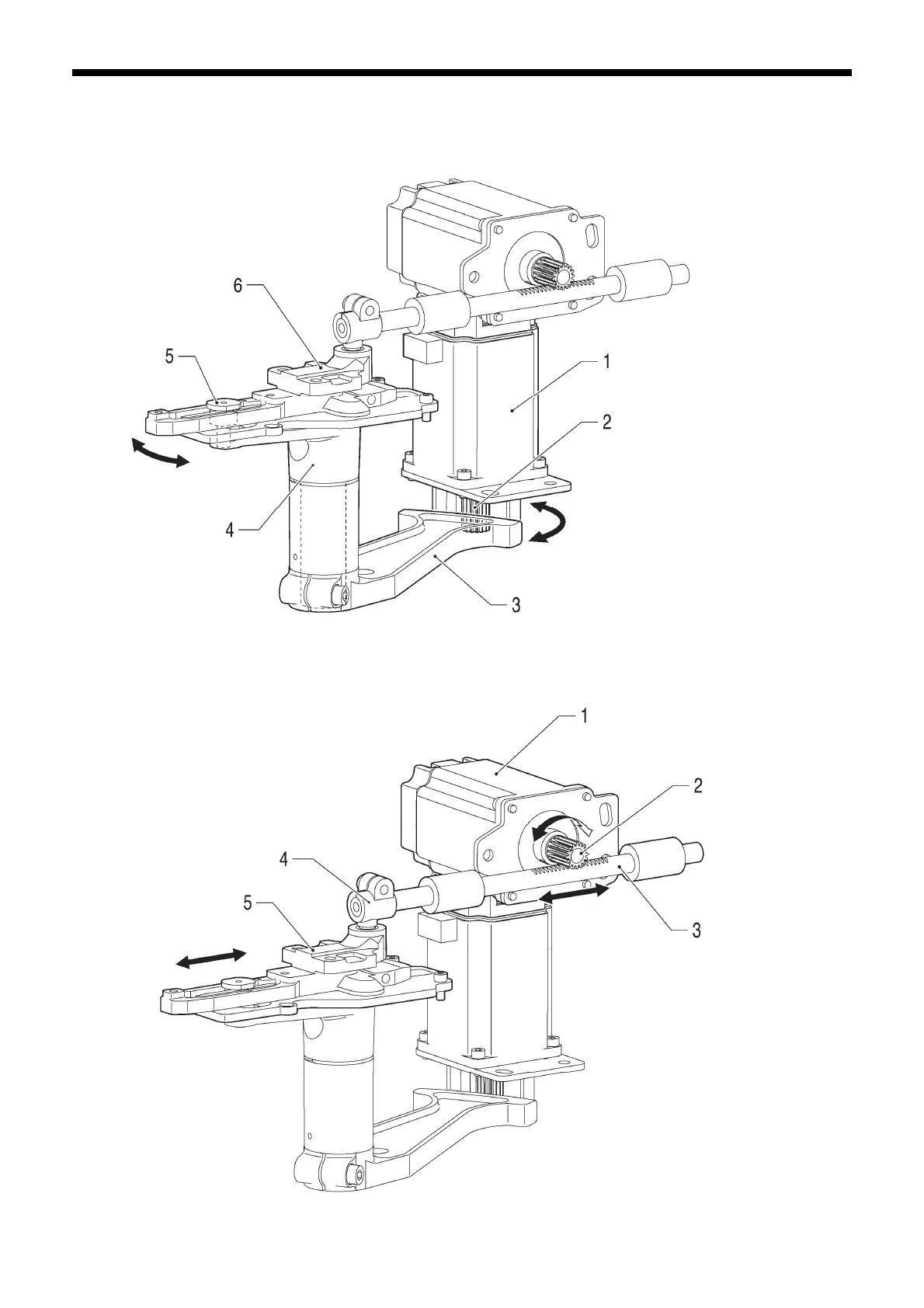

6-5. Feed mechanism
Sewing patterns are created through co
mbinations of X and Y movements.
3975B
3976B
Y direction
X direction
1.
Pulse motor X assembly
2. Feed
gear
3. X-feed
gear
4. X-feed
lever
5.
Regulator bloc
k assembly
6.
Feed bar sub assembly
94
96
