Brother MFC-7320 User Manual

Troubleshooting and routine maintenance
125
B

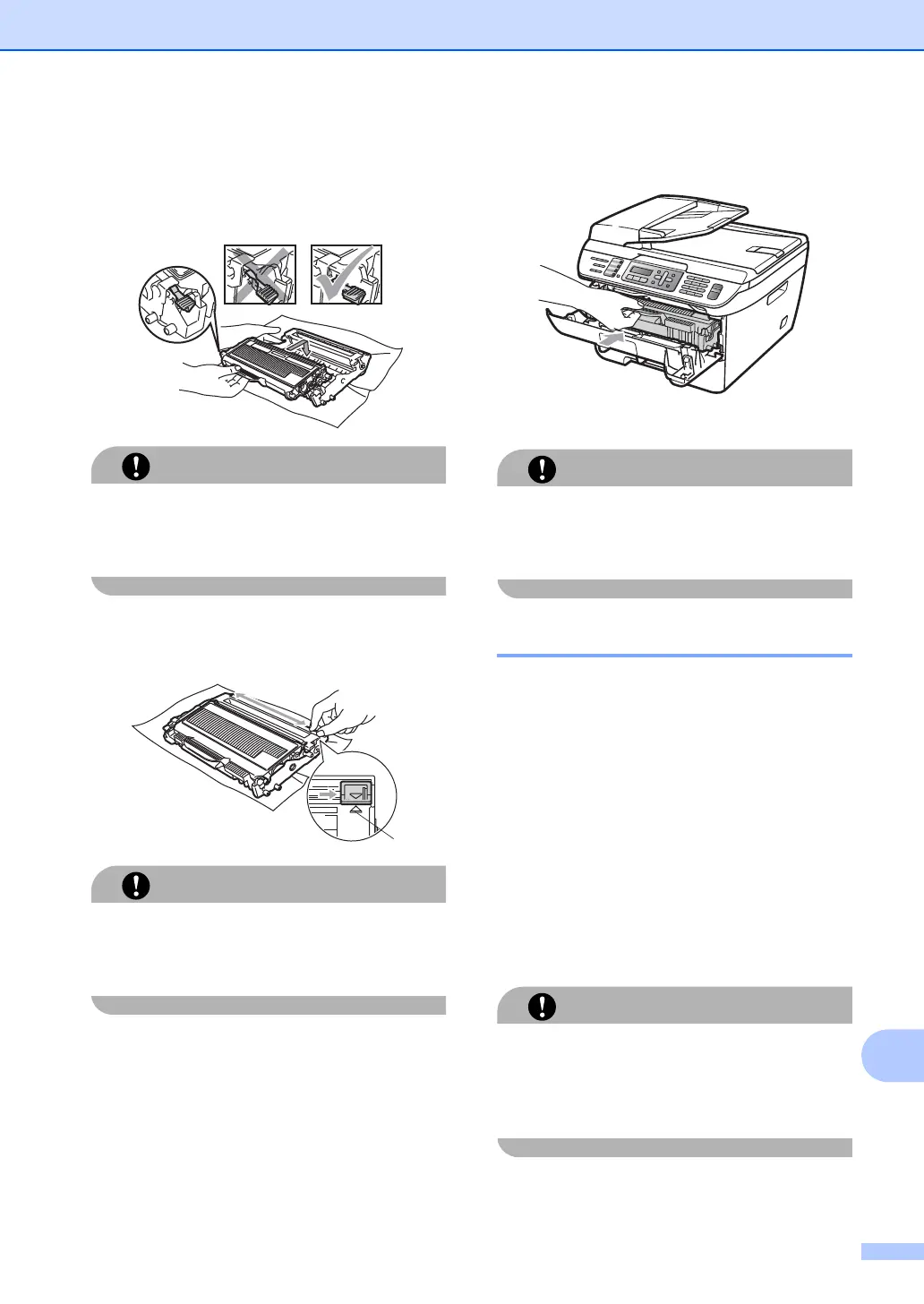

f Put the new toner cartridge firmly into
the drum unit until you hear it lock into
place. If you put it in correctly, the lock
lever will lift automatically.
CAUTION
Make sure that you put in the toner
cartridge correctly or it may separate from
the drum unit.
g Clean the corona wire of the drum unit
by gently sliding the green tab from right
to left and left to right several times.
CAUTION
Be sure to return the green tab to the home
position (a) (1). If you do not, printed pages
may have a vertical stripe.
h Put the drum unit and toner cartridge
assembly back in the machine.
i Close the front cover.
CAUTION
DO NOT turn off the machine or open the
front cover until the LCD returns to the
standby state.
Replacing the drum unit B
The machine uses a drum unit to create print
images on paper. If the LCD shows
Drum End Soon, the drum unit is near the
end of its life and it is time to buy a new one.
Even if the LCD shows Drum End Soon,
you may be able to continue printing without
having to replace the drum unit for a while.
However, if there is a noticeable deterioration
in the output print quality (even before
Drum End Soon appears), then the drum
unit should be replaced. You should clean the
machine when you replace the drum unit.
(See Cleaning the laser scanner window
on page 116.)
CAUTION
While removing the drum unit, handle it
carefully because it may contain toner. If
toner scatters on your hands or clothes,
wipe or wash it off with cold water at once.
1

Brother MFC-7320 Specifications

General

Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Copier resize	25 - 400 %
PC free copying	Yes
Maximum copy resolution	600 x 600 DPI
Copy speed (black, normal quality, A4)	11 cpm
Faxing	Mono faxing
Fax memory	400 pages
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	35 sheets
Sound power level (standby)	32 dB
Sound pressure level (printing)	53 dB
Standard interfaces	USB 2.0
Dimensions (WxDxH)	428 x 396 x 304 mm
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Windows Vista, XP (32 & 64 bit); Windows 2000, Mac OS X 10.2.4 en recenter Linux printer driver
Power consumption (standby)	75 W
Power consumption (PowerSave)	9 W
Power consumption (average operating)	320 W
Display	LCD
Market positioning	Home & office
Media weight (tray 1)	60 - 105 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Bundled software	ScanSoft Paperport 11 SE+OCR, Newsoft Presto!, PageManager7 (Mac)
Package weight	14.900 g
Grayscale levels	256
Input color depth	24 bit
Sustainability certificates	ENERGY STAR
