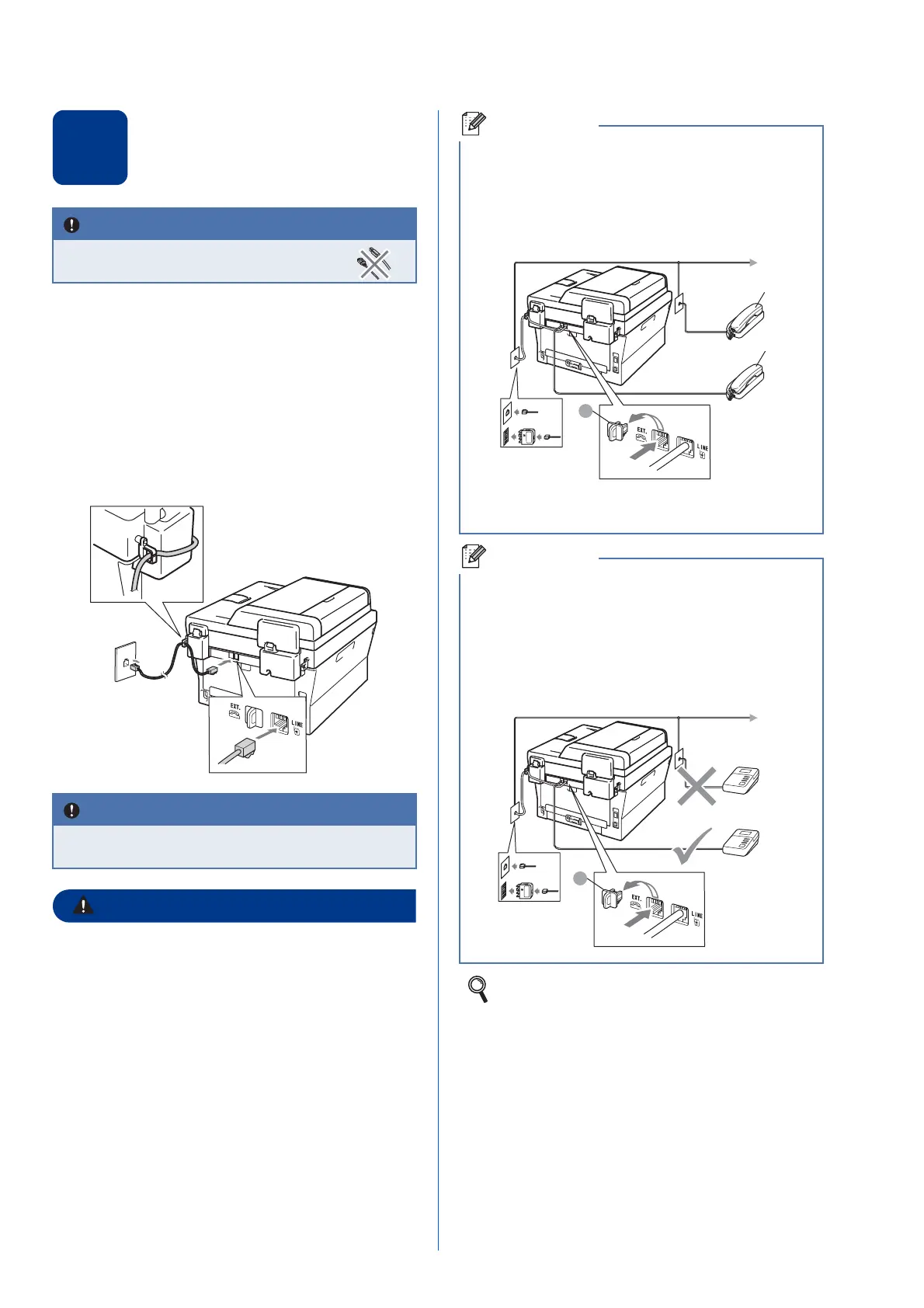

Connect the power cord
and telephone line
a Connect the AC power cord to the machine,
and then plug it into an electrical socket.
b Turn on the machine’s power switch.
c Connect the telephone line cord. Connect one
end of the telephone line cord to the socket on
the machine marked LINE and the other end to
a telephone wall socket.
The machine must be grounded using an
earthed plug.
Since the machine is grounded through the
electrical socket, you can protect yourself
from potentially hazardous electrical
conditions on the telephone network by
keeping the power cord connected to your
machine when you connect it to a telephone
line. Similarly, you can protect yourself when
you want to move your machine by
disconnecting the telephone line first and then
the power cord.
DO NOT connect the interface
cable yet.
The telephone line cord MUST be connected
to the socket on the machine marked LINE.
If you are sharing one telephone line with an
external telephone, connect it as shown below.
Before you connect the external telephone,
remove the protective cap a from the EXT. jack
on the machine.
1 Extension telephone
2 External telephone
If you are sharing one telephone line with an
external telephone answering machine, connect it
as shown below.
Before you connect the external telephone
answering machine, remove the protective cap a
from the EXT. jack on the machine.
Set the receive mode to External TAD if
you have an external answering machine.
See Choose a Receive Mode on page 9. For
additional details, see Connecting an
external TAD in the Basic User’s Guide.
1
2
(Example
for Australia)
(Example
for Australia)
