Brother MFC-7440N

Ref. 2-7
Confidential
3.2.2 Paper Supply
The paper feed roller picks up one or a few sheets of paper from the paper tray every time it
is rotated and feeds it to the separation roller. Subsequently, stacks of paper are caught
between the separation roller and separation pad, then separated into single sheets.

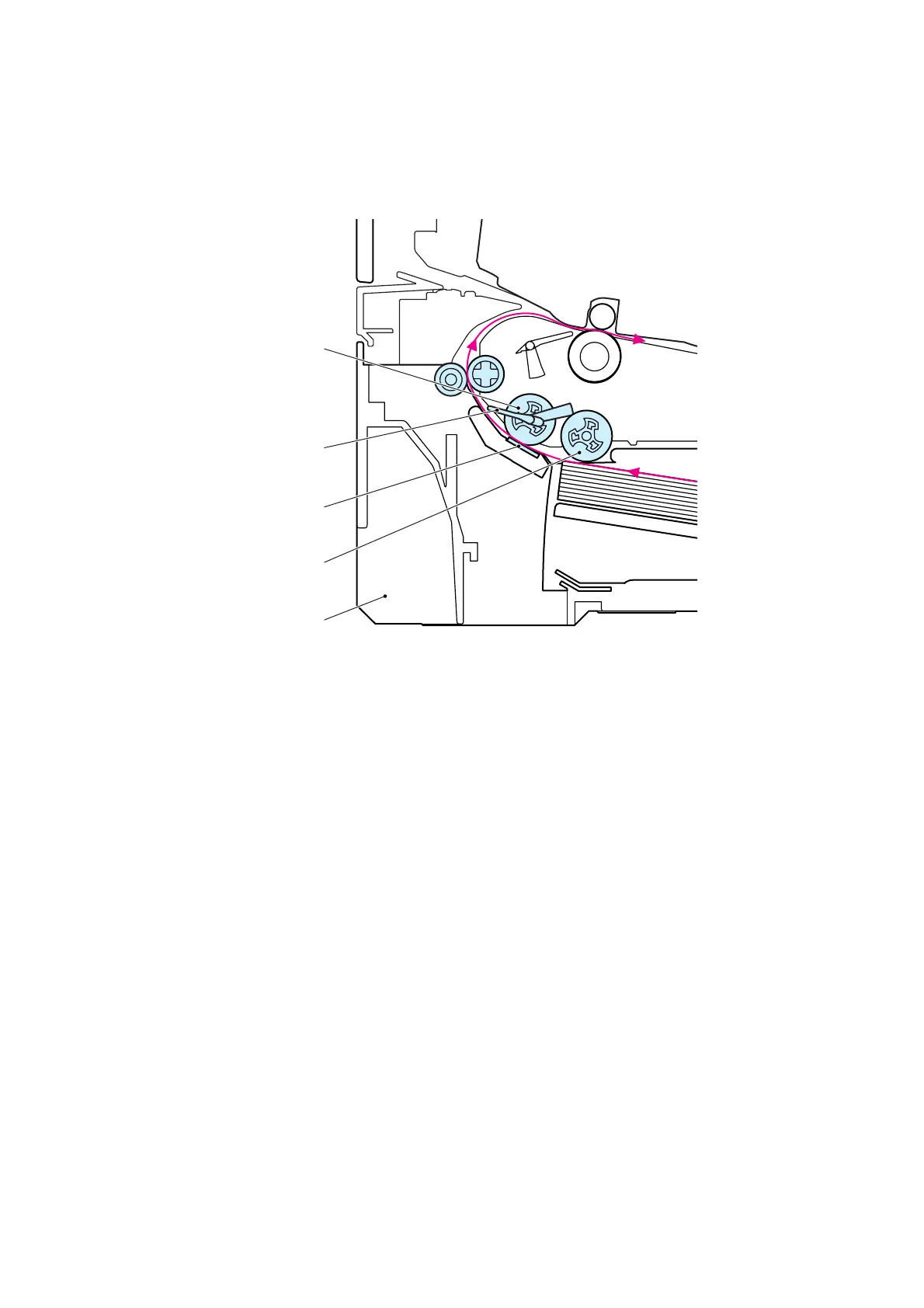

Fig. Ref. 2-8
<Operation of Actuators>
• The edge actuator detects the rear edge of the paper.
Paper tray
Paper feed roller
Separation pad
Separation roller
Edge actuator
