Ref. 1-1
Confidential
REFERENCE 1 SPECIFICATIONS
1. COMPONENTS
Printer part

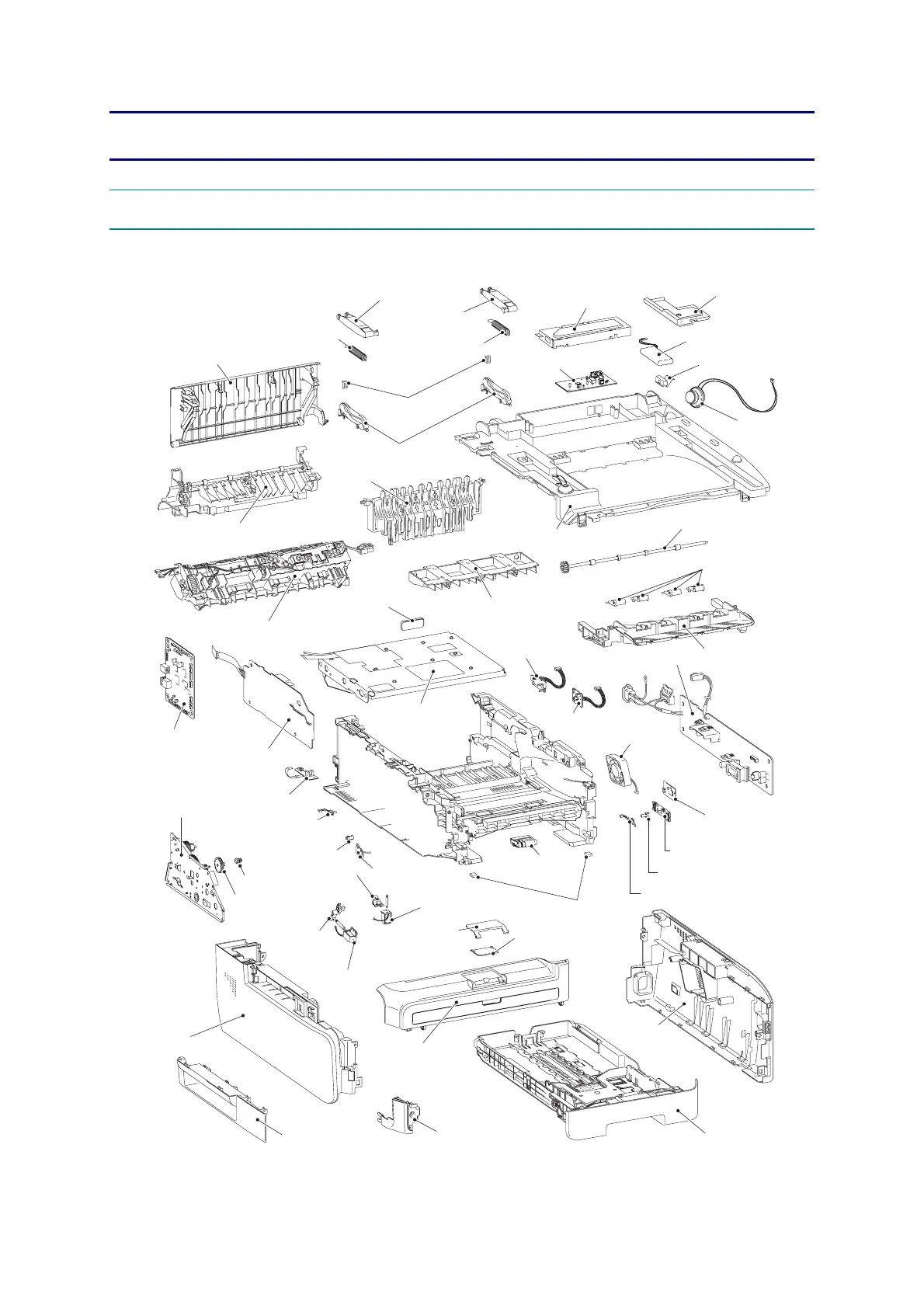

Fig. Ref. 1-1
Back cover
Fuser cover
Fuser unit
Laser unit
High-voltage
PS PCB ASSY
Eject sensor PCB ASSY
Outer chute ASSY
Joint cover sub chute ASSY
Pull arm R
Speaker unit
Speaker hold spring
Eject roller ASSY 2
Joint cover ASSY
Speaker cover
NCU shield
NCU PCB
Battery ASSY
Inner chute ASSY
Main PCB ASSY
PS PCB unit ASSY
Wireless LAN
PCB ASSY
Fan motor
60 unit
Registration front
sensor PCB ASSY
Registration rear
sensor PCB ASSY
Filter ASSY
Side cover
R ASSY
Roller holder
ASSY
Front cover ASSY
Rubber foot
Corner cover
Side cover sub L
Paper
stopper L
Paper
stopper S
Side cover L ASSY
Drive sub ASSY
Registration
solenoid
Registration
solenoid lever
T1 solenoid
T1 solenoid
lever
New toner sensor
harness ASSY
Toner sensor PCB
unit ASSY
DEV joint
DEV gear
joint/53R
Paper tray ASSY
Toner LED PCB ASSY
LED holder
PT sensor holder
Cover sensor harness ASSY
Paper stack lever
Pull arm L
Pull arm spring ADF R
Pull arm spring ADF
Lock claw
Pull arm guide
