(3) Development
Toner is attracted to the latent image area on the exposure drum where surface potential is
lowered due to the exposure.
By controlling developing bias voltage supplied to the develop roller, the amount of toner
taken to the drum is adjusted to keep printing density constant.

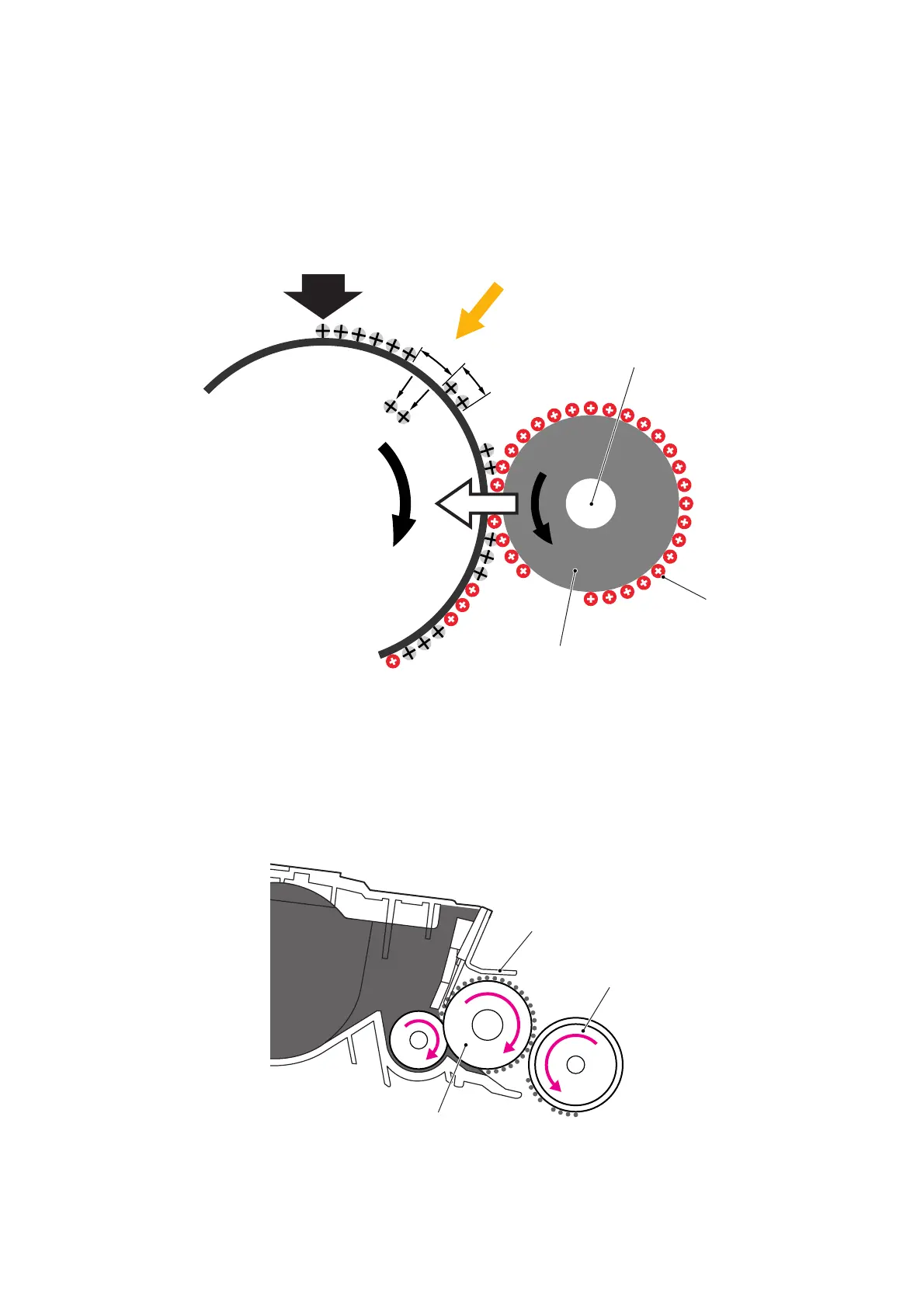

Fig. Ref. 2-22
<Supply of toner to the development process>
Toner adheres to the charged develop roller. Such adhered toner is adjusted to an even
thickness, and is attracted to an exposed area on the exposured drum.
Fig. Ref. 2-23
Charging
450 V to 300 V
(Changes depending on use condition)
Toner
Develop roller
Laser beam
150 V
850 V
Blade
Exposure drum
Develop roller
