Brother MFC-8535DN Service Manual

3-25
Confidential

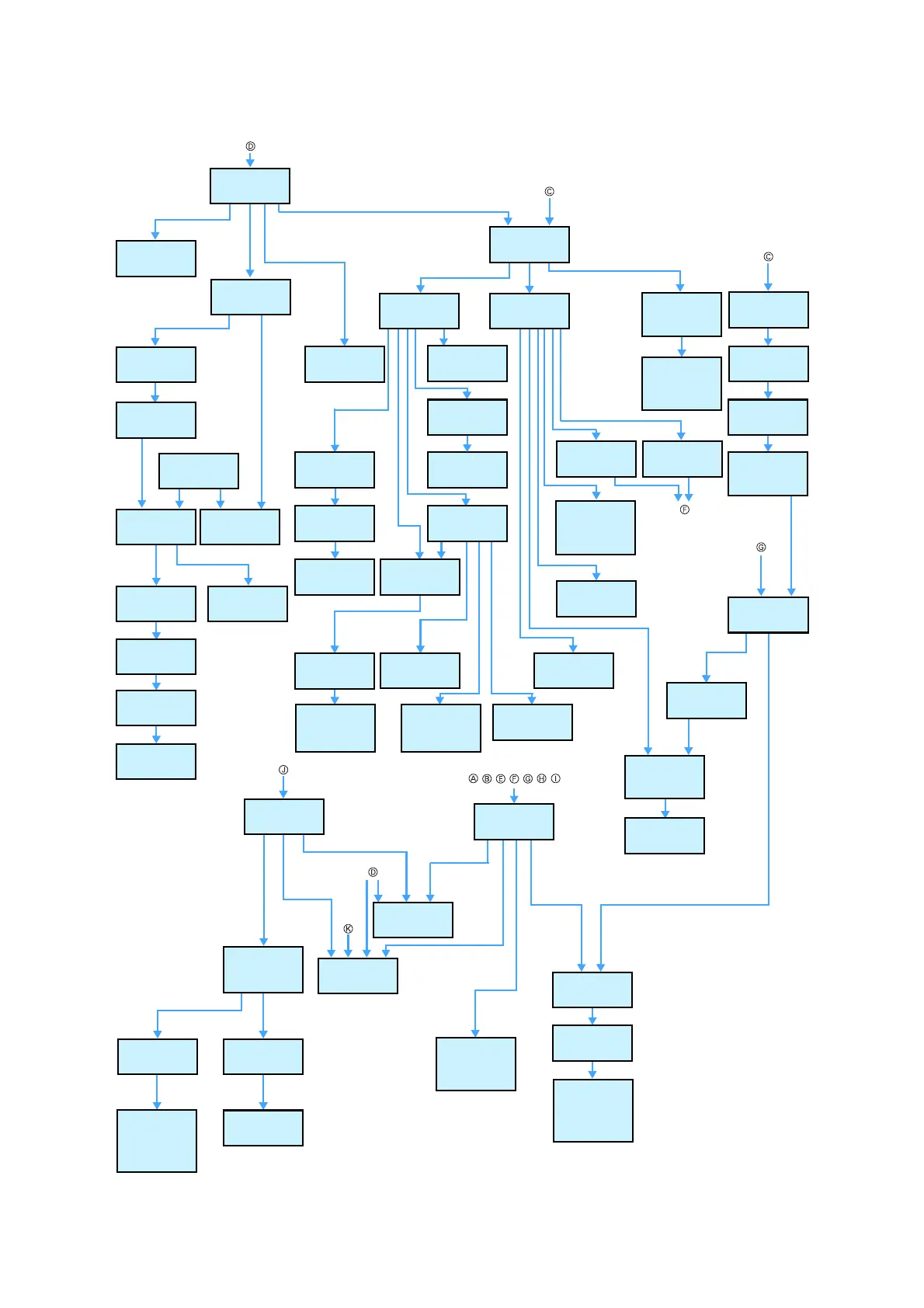

Disassembly / Reassembly (second)
*1
Models with 520-sheet T1
*2
Models with 250-sheet T1
*3
LCD: 3.7 inch models
*4
LCD: 4.85 inch models
*5
Duplex scanning models
9.42 T1 paper feed
sensor PCB ASSY / T1
paper feed actuator /
T1 paper feed actuator
spring
60/80
9.39 High-voltage
power supply PCB
ASSY
20/40
9.40 Eject sensor PCB
ASSY
15/20
9.45 Registration
actuator holder ASSY
20/30
9.45 Registration front/
rear sensor PCB ASSY
30/40
9.28 Main frame L
ASSY
60/90
9.42 T1 paper feed
actuator holder ASSY
20/30
9.43 Paper feed frame
ASSY
20/45
9.43 MP feed frame
10/15
9.39 Base plate
15/20
9.11.2 Hinge L ASSY
10/10
9.11.5 Document
separate roller ASSY
10/10
9.13 USB host PCB
ASSY
10/15
9.11.1 ADF unit
15/25
9.14 First side CIS unit
15/20
9.16 Modem shield
cover
(Models with
FAX only)
10/15
9.12.2 LCD presser
10/15
9.15 Joint cover ASSY
30/40
9.12.1 Panel unit
25/40
9.11.4 Document sub
tray
5/5
9.11.6 ADF separation
holder ASSY
5/5
9.13 USB protection
sheet
5/5
9.17 Stack sensor PCB
ASSY (Models with
USB host on the rear
side only)
15/20
9.11.4 Gear cover
15/10
9.12.1 Panel flat cable
10/25
9.22 LV shield plate
cover
10/10
9.23 LV shield plate
10/15
9.22 LVPS insulation
sheet
5/5
9.22 Low-voltage
power supply PCB
ASSY
15/20
9.16 Modem PCB
ASSY / Modem flat
cable (Models with
FAX only)
20/35
9.20 Laser unit / Laser
unit flat cable
15/30
9.23 Hold cover 1
5/5
9.14 First side CIS flat
cable
10/40
9.12.2 Shield plate
cover
10/10
9.23 Toner amount
detection sensor PCB
ASSY (light emission)
15/20
9.12.2 LCD
5/10
9.11.7 Upper document
chute
15/20
9.11.7 Second side CIS
unit
*5
10/30
9.11.7 Second side
scanner glass strip
*5
5/5
9.11.7 Second side CIS
flat cable
*5
15/25
9.11.7 Lower document
chute
10/10
9.12.2 Panel PCB
ASSY
5/5
9.12.4 Touch panel
ASSY
10/15
9.24 Main fan
20/30
9.25 Filter
5/10
9.22 Scanner ground
plate
5/5
9.14 Scanner top cover
15/20
9.12.5 NFC PCB ASSY
/ NFC flat cable
(Models with NFC only)
10/20
9.11.4 ADF front cover
25/10
9.11 Document
scanner unit
40/30
9.11.2 Hinge R, Hinge
R support, Hinge arm R
10/15
9.28 Top bar rear
*1
5/10
9.11.7 Document cover
5/5
9.44 Paper empty
sensor PCB ASSY
(Models with USB host
on the rear side only)
20/25
*4
9.20 Top bar
*1
5/10
*2
9.12.3 LCD relay PCB
ASSY
*3
/ LCD relay flat
cable
*3
15/25
9.43 MP paper empty
sensor PCB ASSY / MP
paper empty actuator 1
/ MP paper empty
actuator 2
60/80
9.39 HVPS flat cable
10/20
