Brother MFC-J3530DW Service Manual

4-11
Confidential
(11)Wait for the confirmation screen of the entered serial number and head property
information to appear, then click Yes.
(12)Use Maintenance mode 80 to display the head property information and check that
the entered data is correct.
2.2 Perform ink supply purge (Maintenance mode 76)
(1) Open the ink cartridge cover, set comparatively-new ink cartridges (having
sufficient ink) into the ink refill ASSY or refill enough ink, and close the ink cartridge
cover.
(2) Carry out a purge operation (with maintenance code 76) using the steps below.
1) Press the 7 and 6 keys in this order.
The machine displays "CLEANING ALL" on the LCD and enters the purge
mode.
2) Press the 4 and Mono Start keys in this order to start an initial purge.
The machine starts an initial purge that refills the ink supply tubes and the print
head with fresh ink.
2.3 Check head nozzles (Maintenance mode 09)
To check that the head/carriage unit normally sprays ink droplets from all head nozzles,
print out a nozzle test pattern with Maintenance mode 09 with the following steps.
(1) Press the 0, 9
and Mono Start keys in this order to print out a nozzle test pattern.
(2) If dot missing or any other print quality problem is found, use Maintenance mode
76 to perform an appropriate purge operation (refer to Chapter 5, Section 1.3.28
"Purge Operation (Maintenance mode 76).")
2.4 Adjust head inclination
(1) In Maintenance mode 65 (refer to Chapter 5, Section 1.3.22 "Adjustment of Software
Correction for Inclination/Corrugation/Ruled Lines (Maintenance mode 65)."), print
and correct the adjustment patterns.
(2) Re-print the adjustment patterns. If the sum of the selected values for Pattern C
and Pattern D is between 8 and 12 inclusive, then the correction steps have been
completed. If the sum of the selected values is 7 or smaller, or 13 or larger, then
adjust the inclination of the head/carriage unit.
■ Head inclination adjustment procedure
1)
Switch the machine to the maintenance mode and press the 6 , 3 , Mono Start , and *
keys in this order to move the head/carriage unit to the adjustment position.
2) If the sum of the selected values is 7 or smaller, turn the external ring to the
positive side by 5 scale marks. If the external ring cannot turn exceeding 3 to 4
scale marks, turn the external ring to the +7 position.
If the external ring cannot turn exceeding 2 scale marks, turn the internal ring to the
+1 position and then turn the external ring to the center (0 position).
HEM

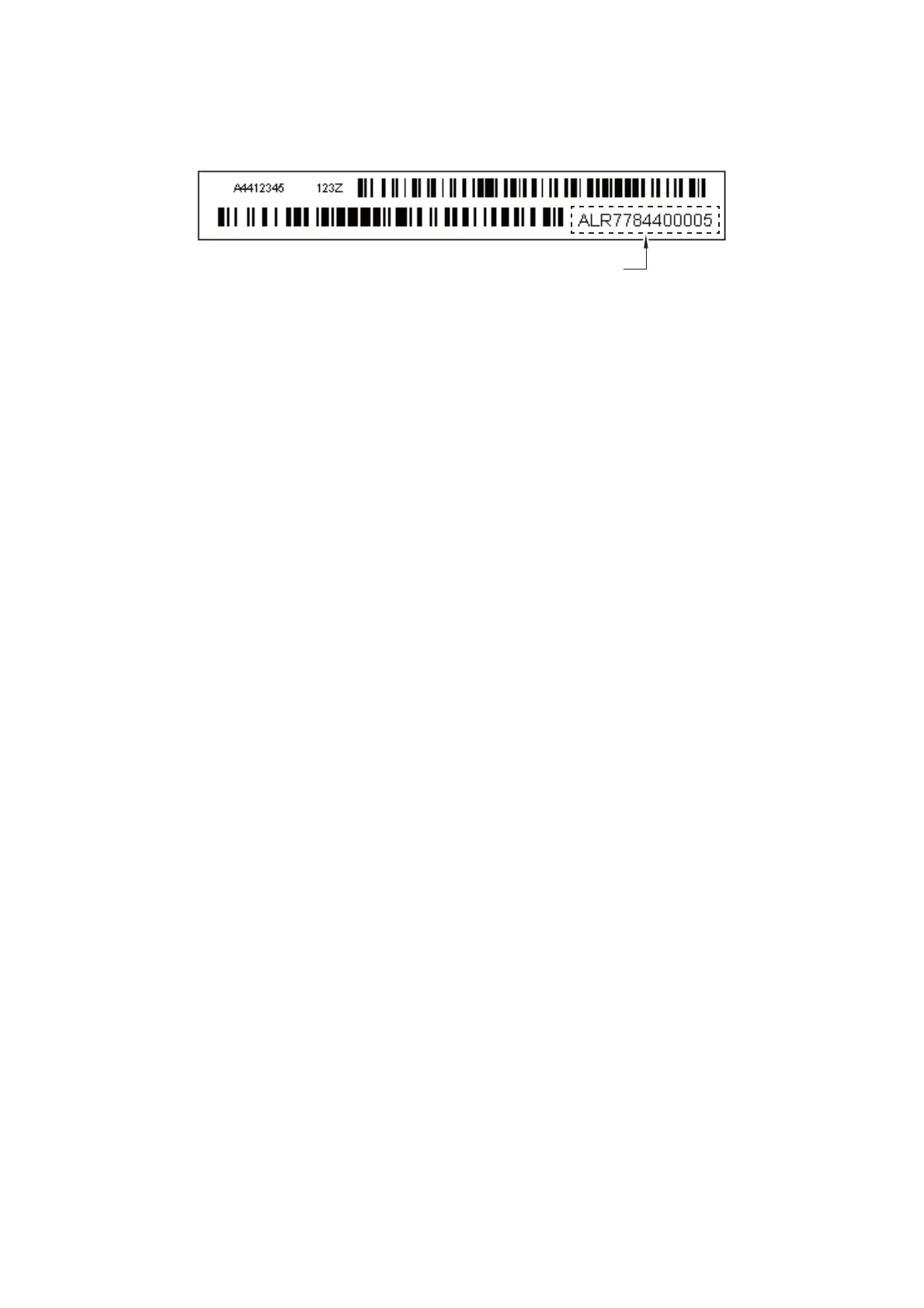

Head property information

Brother MFC-J3530DW Specifications

General

Secure printing	Yes
Print technology	Inkjet
Maximum resolution	4800 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (color, normal quality, A3)	20 ppm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 4800 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A3)	12 cpm
Copy speed (color, normal quality, A3)	9 cpm
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Scan speed (color)	8 ppm
Input grayscale depth	16 bit
Output grayscale depth	8 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	200 pages
Fax forwarding to	E-mail, Fax, PC
Fax transmission speed	33.6 sec/page
Fax speed dialing (max numbers)	250
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, IPSEC, SMTP-AUTH, SNMPv3, SSL/TLS, WPA-PSK, WPA2-PSK
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Control type	Touch
Product color	Black
Display diagonal	2.7 \
Market positioning	Home & office
Quantity per pack	1 pc(s)
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (sleep)	1.6 W
Power consumption (standby)	6 W
Power consumption (printing)	27 W
Power consumption (average operating)	- W
Cables included	Phone
Included cartridge capacity (CMY)	4 pages
Included cartridge capacity (black)	1 pages
Safety	APOP*, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, FTPS, SMTP, POP3*, IMAP4*), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Envelopes sizes	Com-10, DL, Monarch
Photo paper sizes	9x13, 10x15, 13x18 cm
Custom media width	105 - 297 mm
Custom media length	148 - 431.8 mm
Paper tray media types	Coated paper, Glossy paper, Plain paper, Recycled paper
Paper tray media weight	64 - 220 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
Maximum ISO A-series paper size	A3
Auto Document Feeder (ADF) media weight	64 - 120 g/m²
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	50 sheets
Operating temperature (T-T)	10 - 35 °C

Weight and Dimensions

Depth	477 mm
Width	575 mm
Height	305 mm
