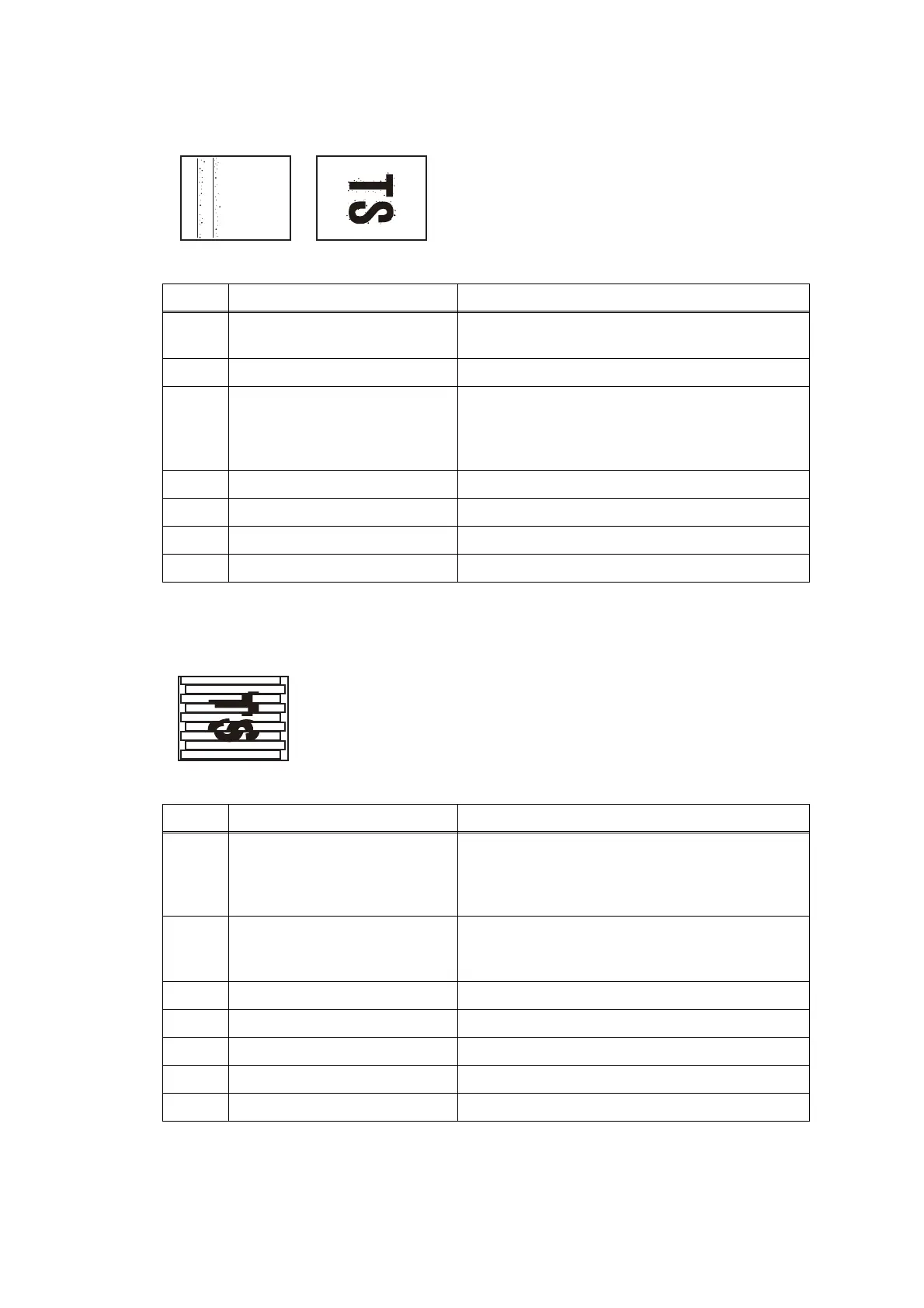

■ Ink splash, stained
■ Print edges not aligned
Step Cause Solution
1 Maintenance unit stained Clean the maintenance unit.
(refer to Fig. 2-11 (2-68))
2 Platen stained Clean the platen.
3 Wrong head property
information
Input the head property information. (refer to
Chapter 5, Section 1.3.24 "Updating of Head
Property Information and Backup/Restoration of
Head Calibration Data (Maintenance mode 68)")
4 Carriage PCB defective Replace the carriage PCB ASSY.
5 Maintenance unit defective Replace the maintenance unit.
6 Head defective Replace the head/carriage unit.
7 Main PCB defective Replace the main PCB.
< User Check >
- Check whether the recording paper being used is within
the specification.
- Perform the printing position adjustment.
Step Cause Solution
1 Vertical print lines not aligned Adjust vertical print line alignment. (refer to
Chapter 5, Section 1.3.22 "Adjustment of
Software Correction for Inclination/Corrugation/
Ruled Lines (Maintenance mode 65)")
2 Head inclination is not correctly
adjusted.
Adjust the head inclination.
(refer to Chapter 4, Section 2.4 "Adjust head
inclination")
3 CR encoder strip stained Clean the CR encoder strip.
4 CR encoder strip defective Replace the CR encoder strip.
5 Carriage PCB defective Replace the carriage PCB ASSY.
6 Head defective Replace the head/carriage unit.
7 Main PCB defective Replace the main PCB.

Brother MFC-J6545DW Specifications

General

Type	all in one, fax
Color	white/gray, white
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	350
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	letter-size glossy inkjet paper; 4" x 6" glossy photo paper; letter-size multi-purpose paper
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Duplex Scan	no
Max Copies	999
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3037bk, lc3037c, lc3037m, lc3037y, lc3039bk, lc3039c, lc3039m, lc3039y
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, usb 2.0, wi-fi, wi-fi direct
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.6 inches
Height	12.2 inches
Width	22.6 inches
Net Weight	44.3 pounds
