Brother MFC-J6545DW User Manual

Confidential
2-87

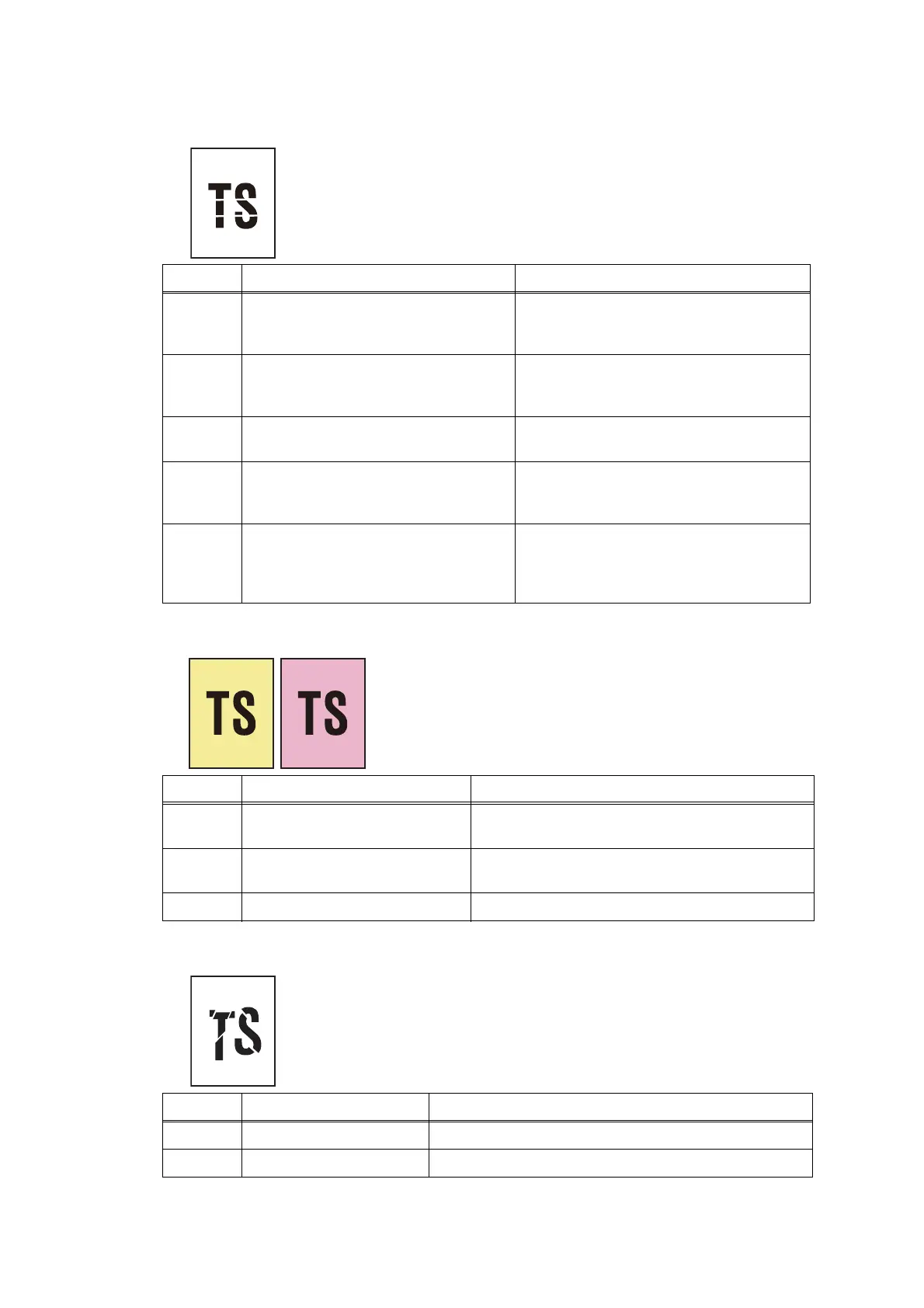

■ White horizontal streaks
■ Colored over the whole page
■ Entire image is distorted or deformed
< User Check >
- Clean the document cover glass or second side CIS
glass.
-
Clean the document pressure bar.
Step Cause Solution
1 White reference film of document
scanner unit stained (in the case of
problem in first side)
Clean the white reference film of
document scanner unit.
2 White reference film of document
pressure bar of ADF stained (in the
case of problem in second side)
Clean the white reference film of
document pressure bar of ADF.
3 First side or second side CIS unit
defective
Replace the first side or second side CIS
unit.
4 White reference film of document
scanner unit damaged, broken (in the
case of problem in first side)
Replace the document scanner unit.
5 White reference film of document
pressure bar of ADF damaged,
broken (in the case of problem in
second side)
Replace the ADF unit.
< User Check >
- Clean the document cover glass or second
side CIS glass.
-
Clean the document pressure bar.
Step Cause Solution
1 White level correction data
failure
Carry out maintenance mode 55.
2 First side or second side CIS
unit defective
Replace the first side or second side CIS unit.
3 Main PCB defective Replace the main PCB.
Step Cause Solution
1 CIS type mismatches Carry out maintenance mode 59 to rewrite firmware.
2 Ink refill ASSY defective Replace the ink refill ASSY.

Brother MFC-J6545DW Specifications

General

Type	all in one, fax
Color	white/gray, white
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	350
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	letter-size glossy inkjet paper; 4" x 6" glossy photo paper; letter-size multi-purpose paper
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Duplex Scan	no
Max Copies	999
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3037bk, lc3037c, lc3037m, lc3037y, lc3039bk, lc3039c, lc3039m, lc3039y
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, usb 2.0, wi-fi, wi-fi direct
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.6 inches
Height	12.2 inches
Width	22.6 inches
Net Weight	44.3 pounds
