3-18
Confidential

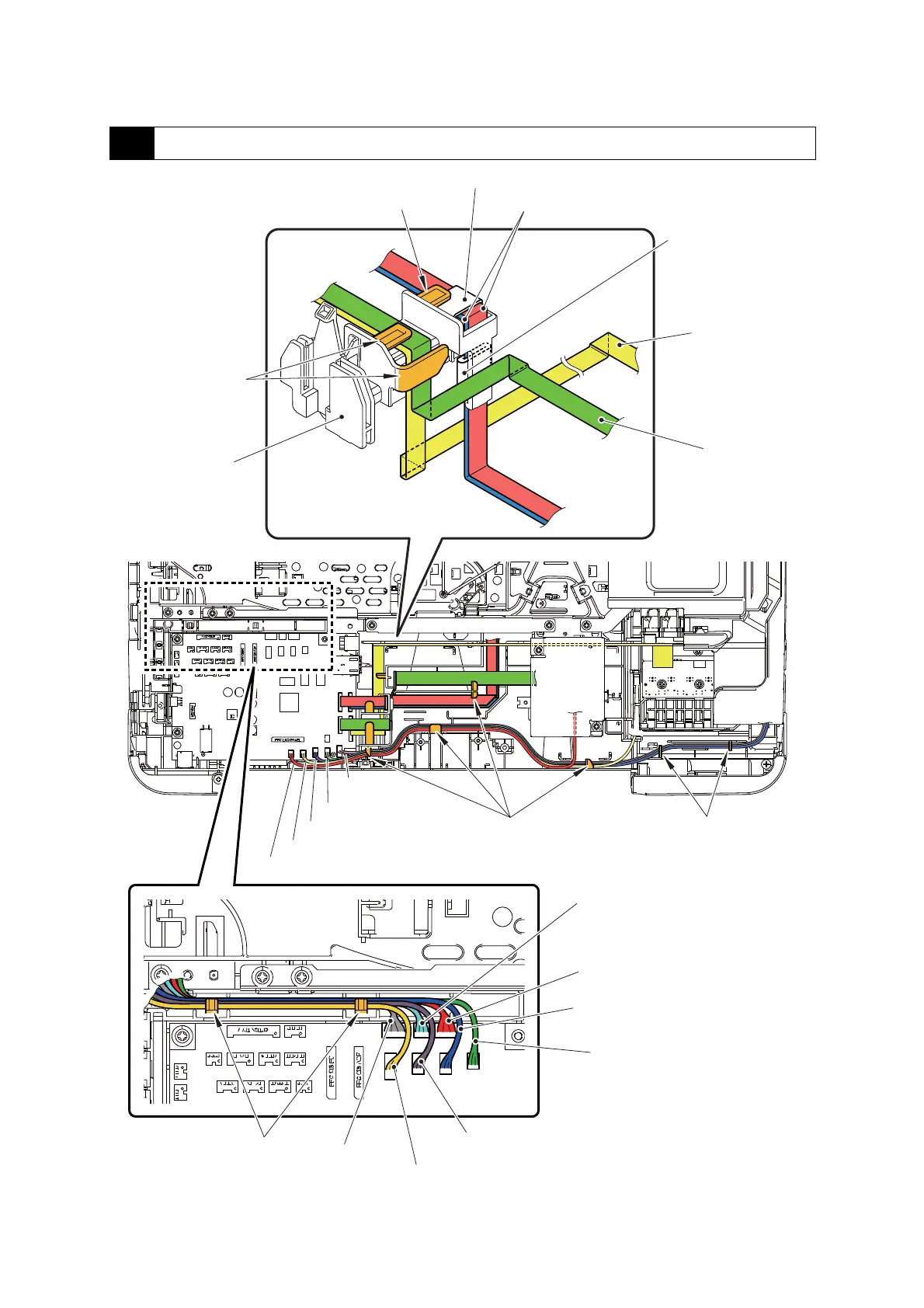

2 Main PCB/Modem PCB
Cable guide
Cable guide
Carriage flat cable
Main PCB harness
hold R
Cable guide
Cable guide
Ink cartridge cover sensor harness
Speaker harness
T2 detection sensor harness
Switchback sensor harness
Cable guide
Registration sensor harness
PF encoder sensor harness
T1 detection sensor harness
Ink sensor flat cable
Modem PCB
flat cable
Maintenance cam harness
Cap cam harness
ASF encoder
T1 paper remaining sensor harness
T2 paper remaining
sensor harness
Flat core
Flat core
sensor harness
