Brother MFC-J6545DW User Manual

5-50
Confidential
< Recommended purge procedures >
When a print failure occurs due to the non-discharge of ink, make a recovery from the
nondischarge in accordance with the recommended procedures below.
(1) Open the document scanner unit and check if there is ink in the ink supply tubes
from the opening of the upper cover.
If there is ink, go on to the step (3).
If there is no ink, go on to the step (2).
(2) Perform Maintenance 76-4 (uIP).
Check if there is ink in the ink supply tubes again.
If there is ink, go on to the step (3).
If there is no ink, replace the maintenance unit and ink refill ASSY.
(3) Perform Maintenance 76-3 (PP).
(4) Print the test pattern by performing Maintenance 09.

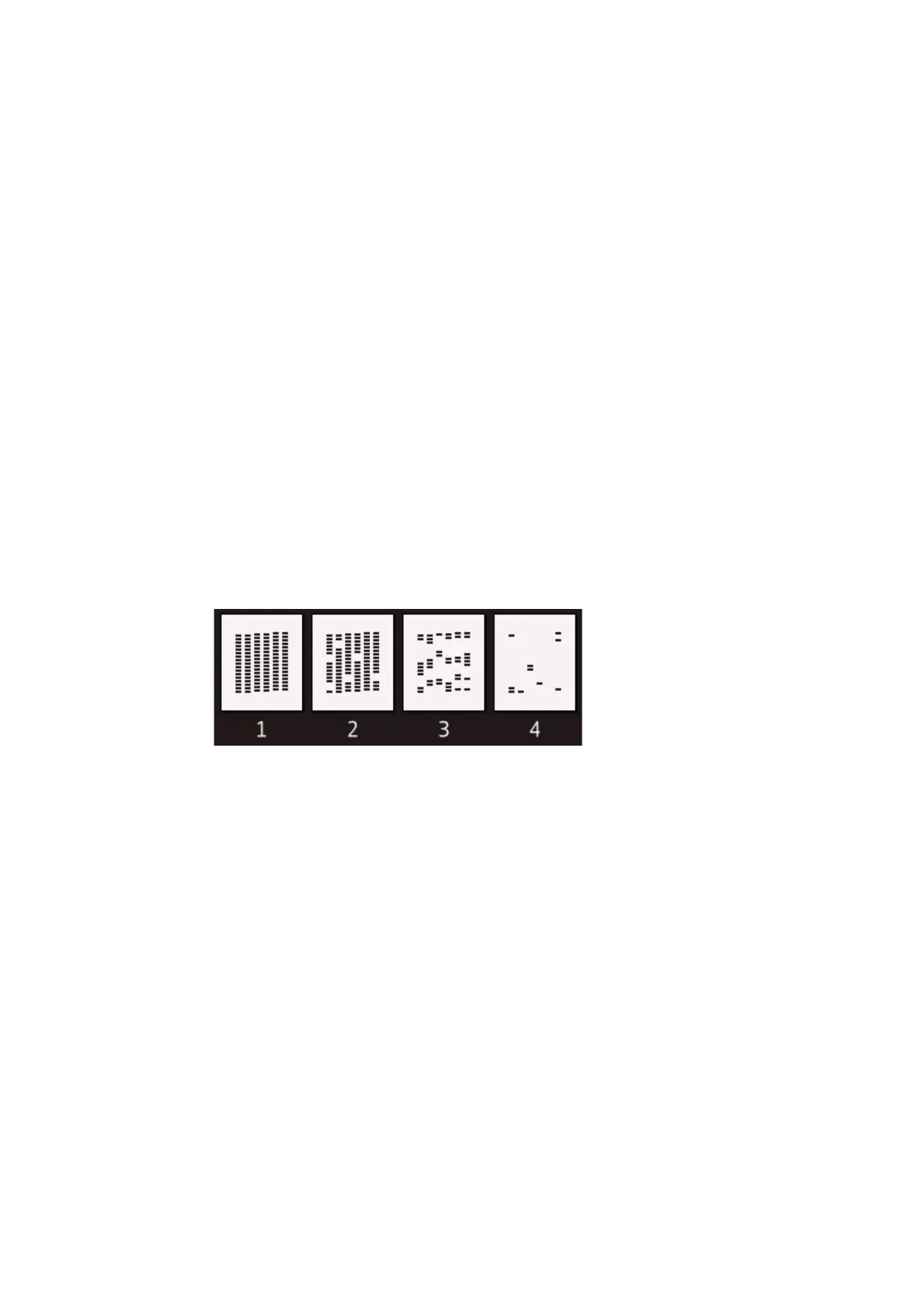

If a lot of blocks are missing in the test pattern (pattern 4 in the figure below),
perform Maintenance 76-D (CPP).
If about a half of the blocks are missing (pattern 3 in the figure below), perform
Maintenance 76-F (QPP).
If few blocks are missing (pattern 2 in the figure below), perform Maintenance 76-1
(NP).
If no blocks are missing (pattern 1 in the figure below), end the operation.
(5) Repeat the step (4) three times until there is no more missing block in the test
pattern.
(6) If blocks are still missing in the test pattern, leave the machine for 8 hours (if
possible), and perform the step (4) again.
(7) If blocks are still more missing in the test pattern, replace the head/carriage unit.
(8) Perform Maintenance 76-4 (uIP).
(9) Repeat the step (4) three times until there is no more missing block in the test
pattern.

Brother MFC-J6545DW Specifications

General

Type	all in one, fax
Color	white/gray, white
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	350
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Media Types	letter-size glossy inkjet paper; 4" x 6" glossy photo paper; letter-size multi-purpose paper
Two-Sided Printing	yes
Maximum Number of Pages Per Month	up to 30, 000
Reduction and Enlargement	yes
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Duplex Scan	no
Max Copies	999
Copier Resolution Mono	up to 4800 x 1200
Copier Resolution Color	up to 4800 x 1200
Fax Function	yes
Cartridges	lc3037bk, lc3037c, lc3037m, lc3037y, lc3039bk, lc3039c, lc3039m, lc3039y
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, usb 2.0, wi-fi, wi-fi direct
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.6 inches
Height	12.2 inches
Width	22.6 inches
Net Weight	44.3 pounds
