Brother MFC-L6900DW - Harness Routing Diagrams

To Next Page

To Previous Page

3-11

Confidential

7. HARNESS ROUTING

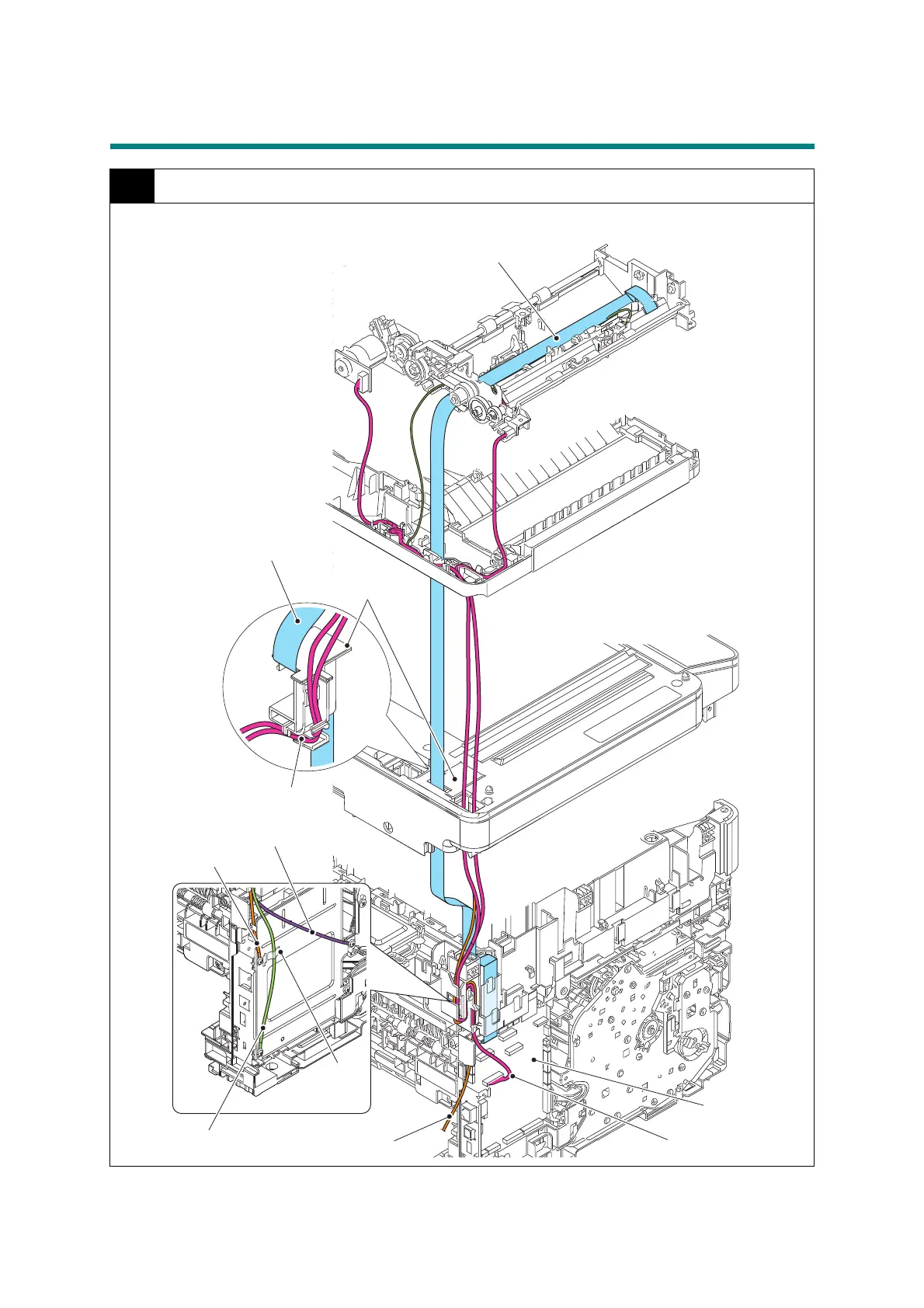

ADF unit - Main PCB ASSY

Harness colors are subject to change for some reason.

Second side CIS flat cable

(Duplex scanning models only)

Flat cable holder

ADF sensor harness

(Black tape winding)

Main PCB ASSY

ADF sensor harness

(Black tape winding)

Tape

Second side CIS flat cable

(Duplex scanning models only)

ADF FG harness (RD or OR)
