Brother MFC-L6900DW - Eject Sensor PCB ASSY

To Next Page

To Previous Page

3-111

Confidential

9.40 Eject sensor PCB ASSY

(1) Release the eject sensor harness from the securing fixtures.

(2) Release the hook, and remove the eject sensor PCB ASSY.

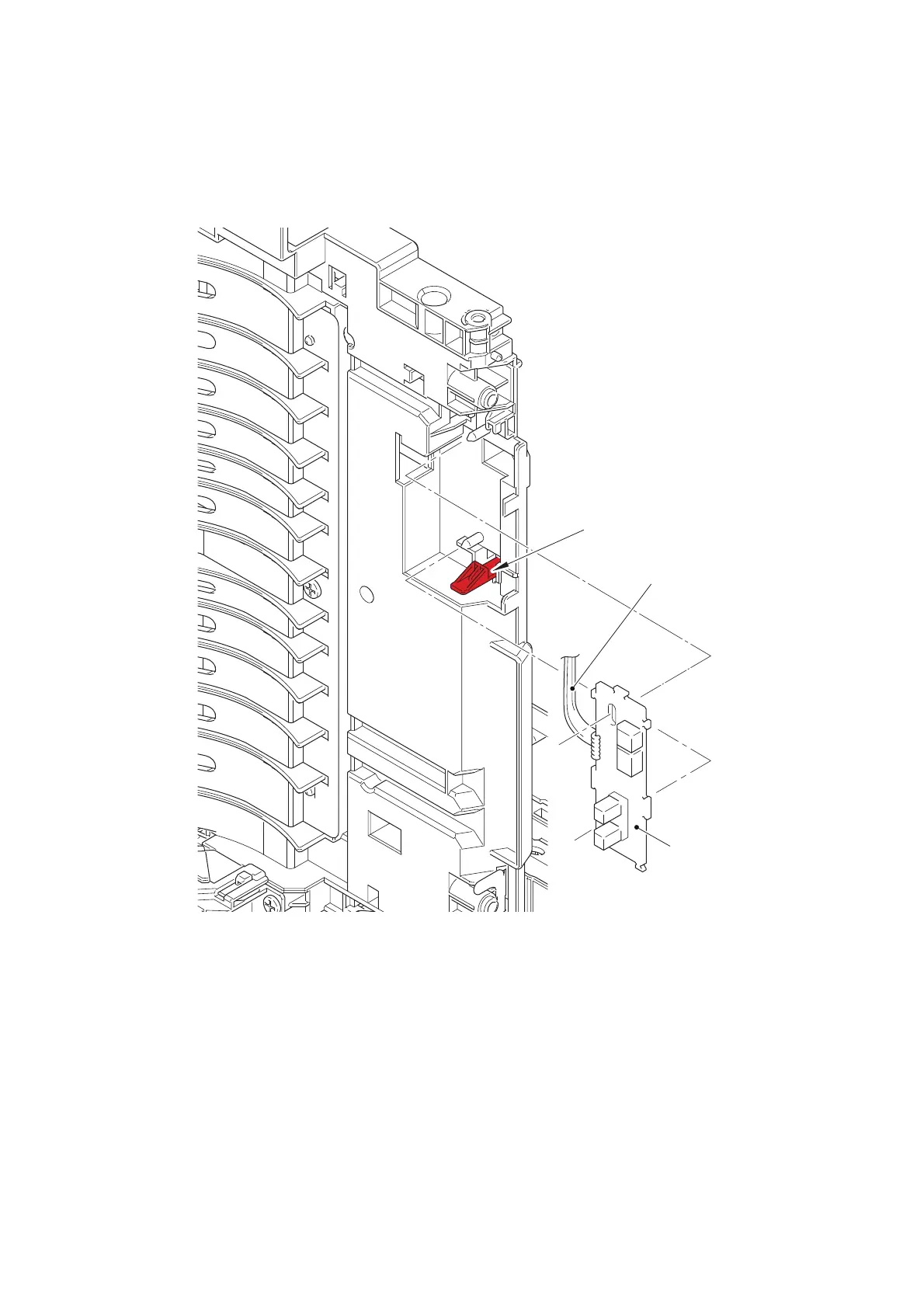

Fig. 3-112

Harness routing: Refer to “12. Bottom side of the machine”.

Eject sensor PCB ASSY

Eject sensor harness

Hook
