9.33 Develop clutch 51R
(1) Remove the develop idle gear 53 from the main frame L ASSY.
(2) Remove the develop shaft gear 22 from the main frame L ASSY.
(3) Release the develop clutch harness from the securing fixtures, and remove the develop
clutch 51R from the main frame L ASSY.

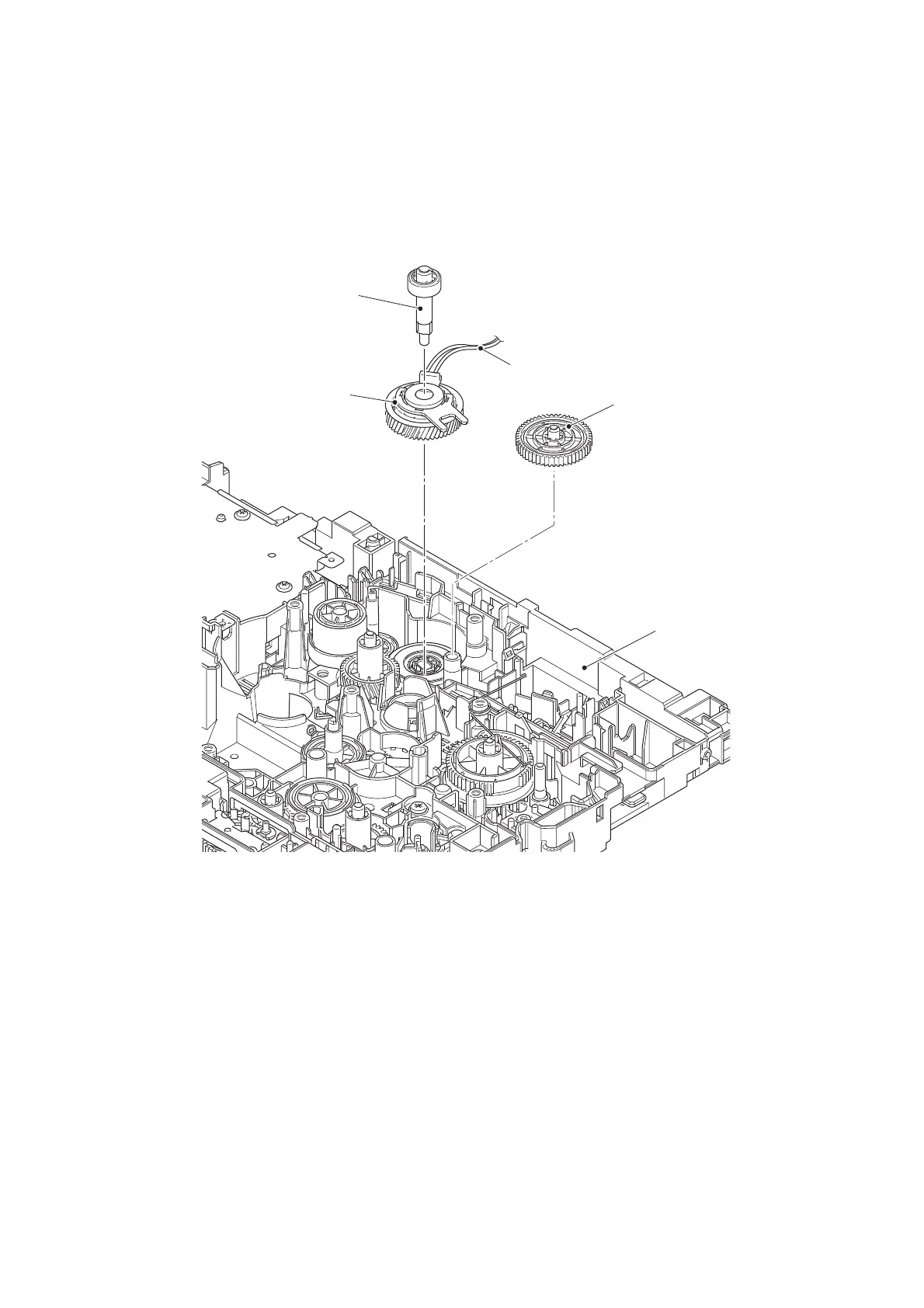

Fig. 3-101
Harness routing: Refer to “10. Left side of the machine”.
Develop clutch harness
Develop idle gear 53
Main frame L ASSY
Develop shaft gear 22
Develop clutch 51R
