Brother MFC-L6900DW - High-Voltage Power Supply PCB ASSY

3-108
Confidential
9.39 High-voltage power supply PCB ASSY
(1) Remove the two screw pan (S/P washer) M3x12 DB screws and the four taptite bind B
M4x12 screws to remove the base plate.

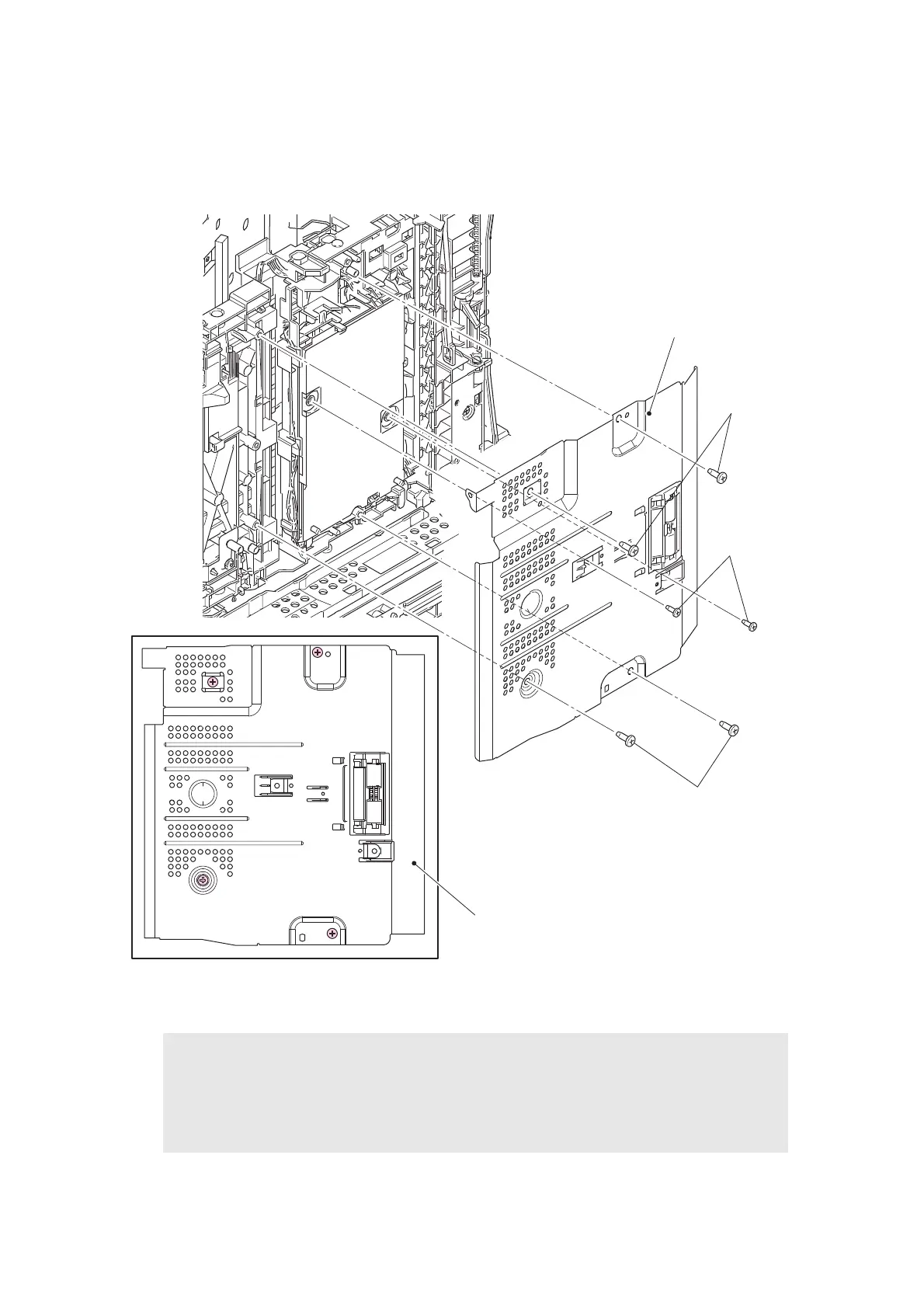

Fig. 3-108
Assembling Note:
• Carefully attach the base plate, avoiding harnesses and flat cables get caught in the
base plate.
• When securing the base plate with screws, tighten the screws in the sequence of the
numbers engraved on the base plate.
Base plate
Screw pan
(S/P washer)
M3×12 DB
Taptite bind B M4x12
1
2
3
4
Base plate
Taptite bind
B M4x12
