9.42 T1 paper feed sensor PCB ASSY /

T1 paper feed actuator / T1 paper feed actuator spring

(1) Release the T1 paper feed sensor harness from the securing fixtures.

(2) Remove the taptite bind B M3x10 screw, and remove the T1 paper feed actuator holder

ASSY.

(3) Remove the tray lock R.

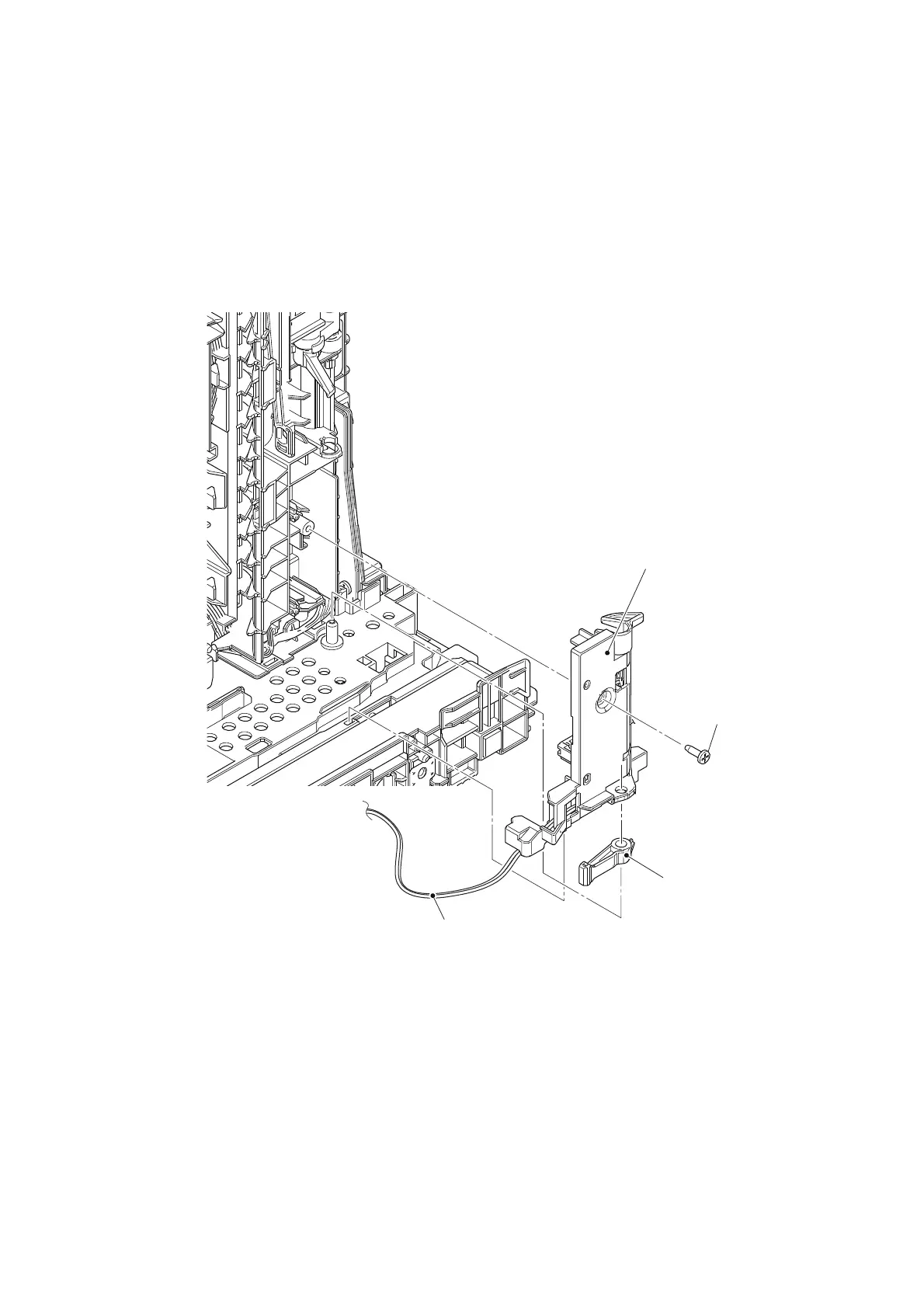

Fig. 3-114

Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB

ASSY)”.

T1 paper feed actuator holder ASSY

Taptite bind B M3x10

T1 paper feed sensor harness

Tray lock R
