Brother MFC-L6900DW

To Next Page

To Previous Page

3-23

Confidential

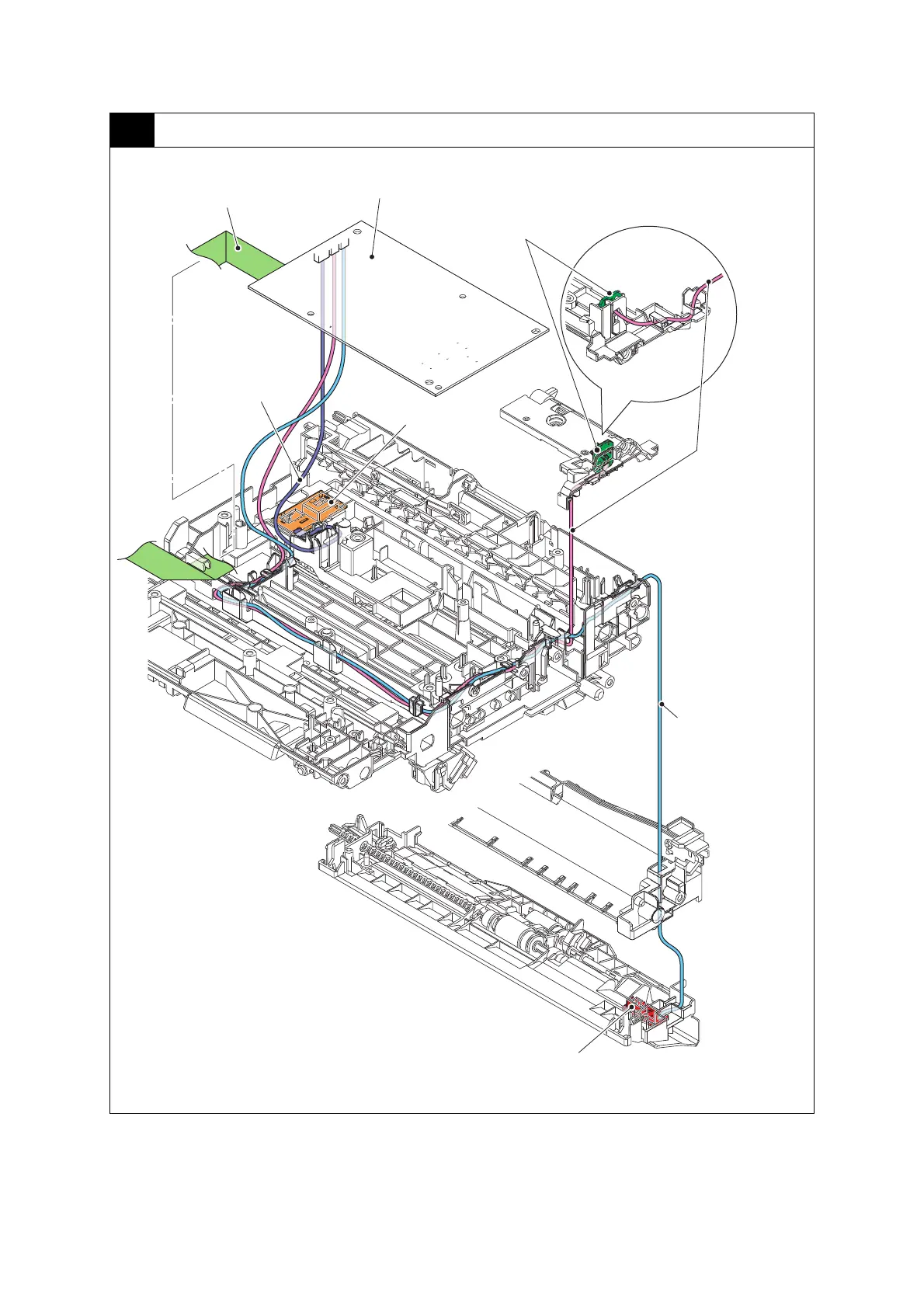

Bottom side of the machine (High-voltage power supply PCB ASSY)

Harness colors are subject to change for some reason.

T1 paper feed sensor PCB ASSY

High-voltage power supply PCB ASSY

HVPS flat cable

T1 paper feed

sensor harness

(OR, BL, RD)

Registration front/rear

sensor harness

(RD, BK, OR, BL)

Registration

front/rear sensor

PCB ASSY

MP paper empty sensor PCB ASSY

MP paper empty

sensor harness

(RD, BL, WH)
