9.14 First side CIS unit, First side CIS flat cable

(1) Remove the eight taptite bind B M4x12 screws.

(2) Remove the scanner top cover from the document scanner unit.

(3) Remove the CIS roller holder L ASSY and CIS roller holder R ASSY from the first side CIS

unit.

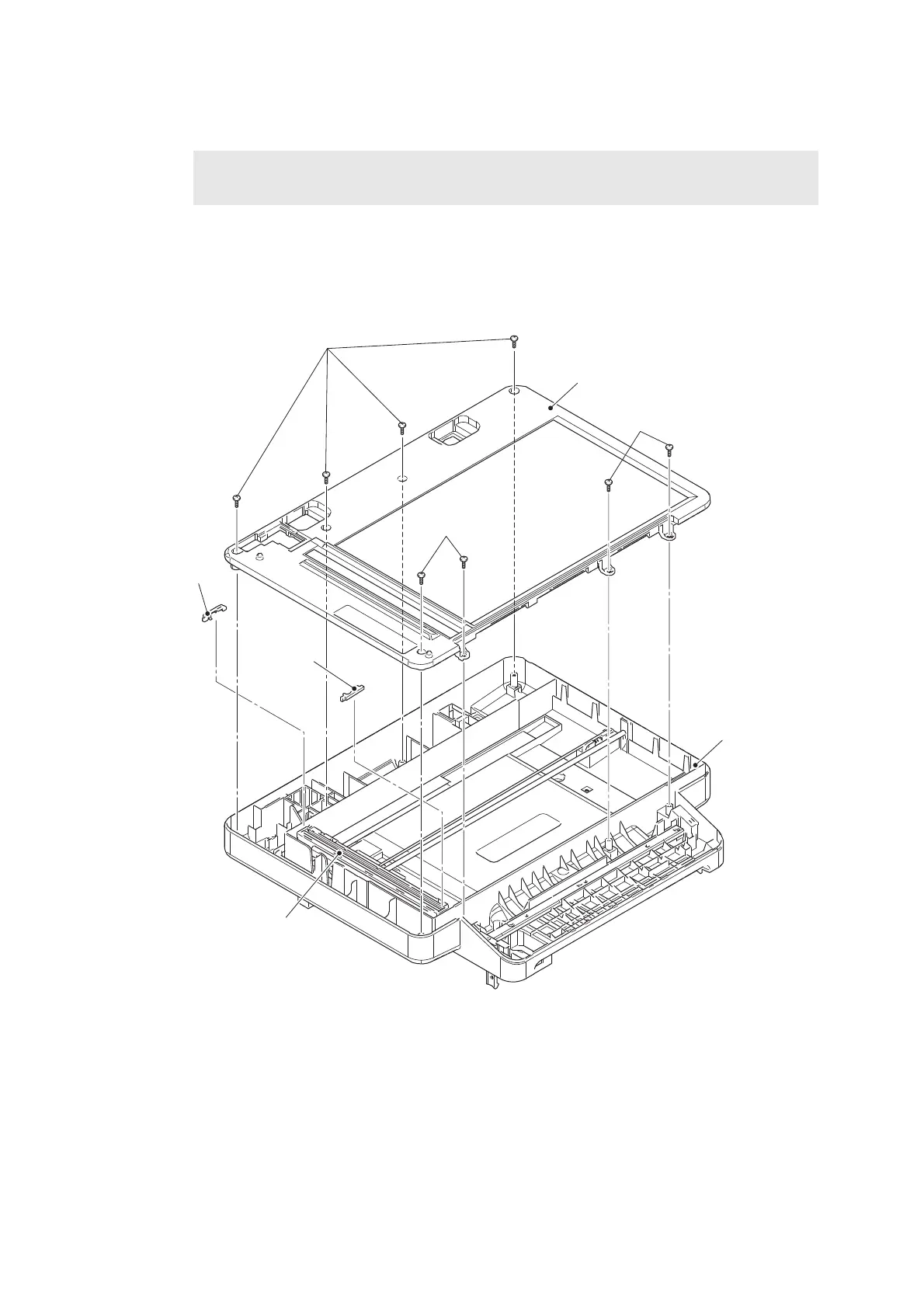

Fig. 3-61

Note:

• Replace the CIS unit in the clean place with no dust.

Document

scanner unit

Taptite bind B M4x12

Taptite bind

B M4x12

Taptite bind

B M4x12

Scanner top cover

CIS roller holder

R ASSY

CIS roller

holder L

ASSY

First side CIS unit
