Brother MFC-L6900DW - Document Separate Roller ASSY

To Next Page

To Previous Page

3-49

Confidential

9.11.5Document separate roller ASSY

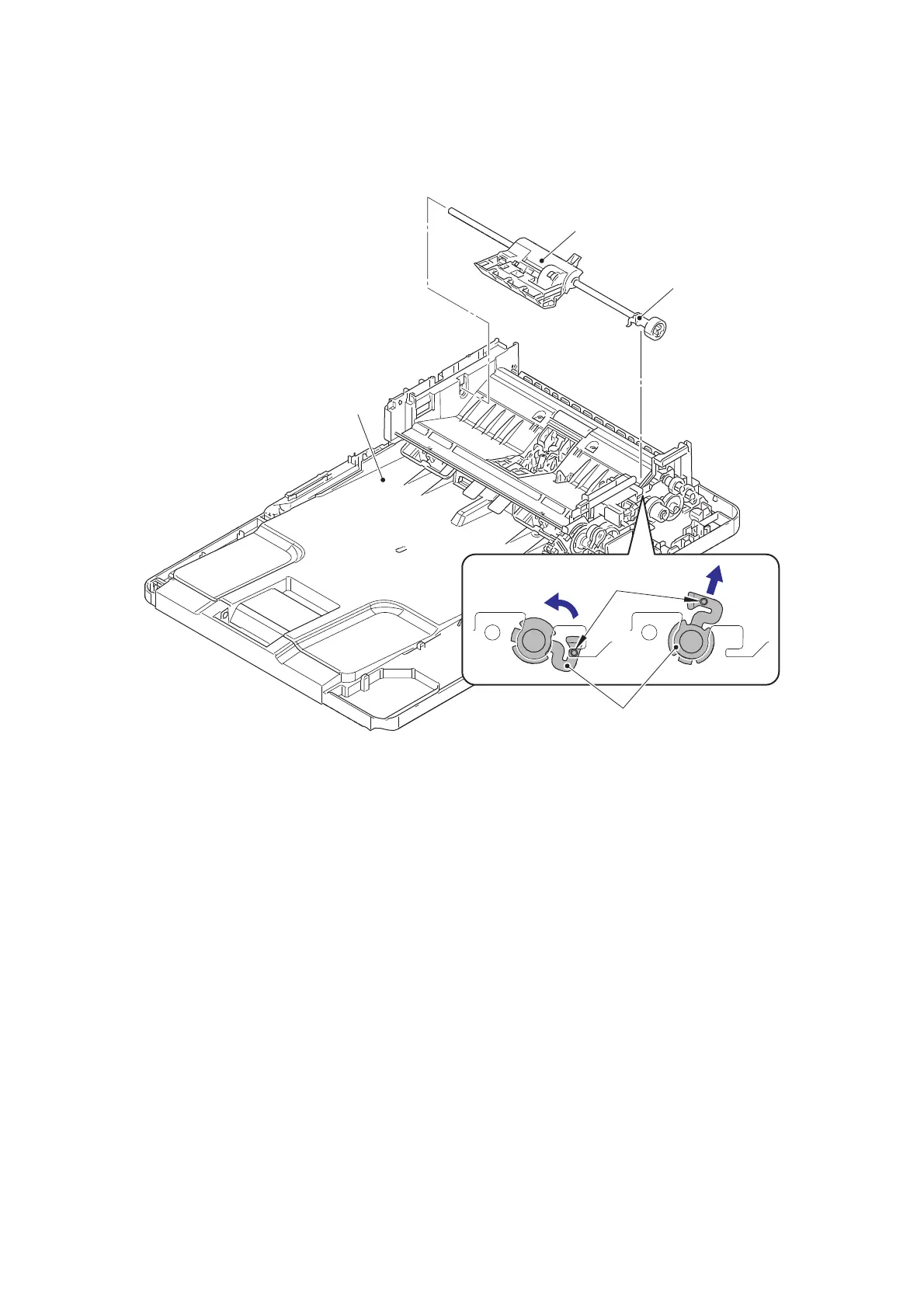

(1) Release the lock of the conductive bushing to remove the document separate roller

ASSY from the ADF unit.

Fig. 3-40

Document separate roller ASSY

ADF unit

Conductive bushing

Lock

Conductive bushing
