(7) Close the front cover and return the pressure roller nip.

(8) Remove the taptite pan B M4x14 screw, and remove the fuser unit.

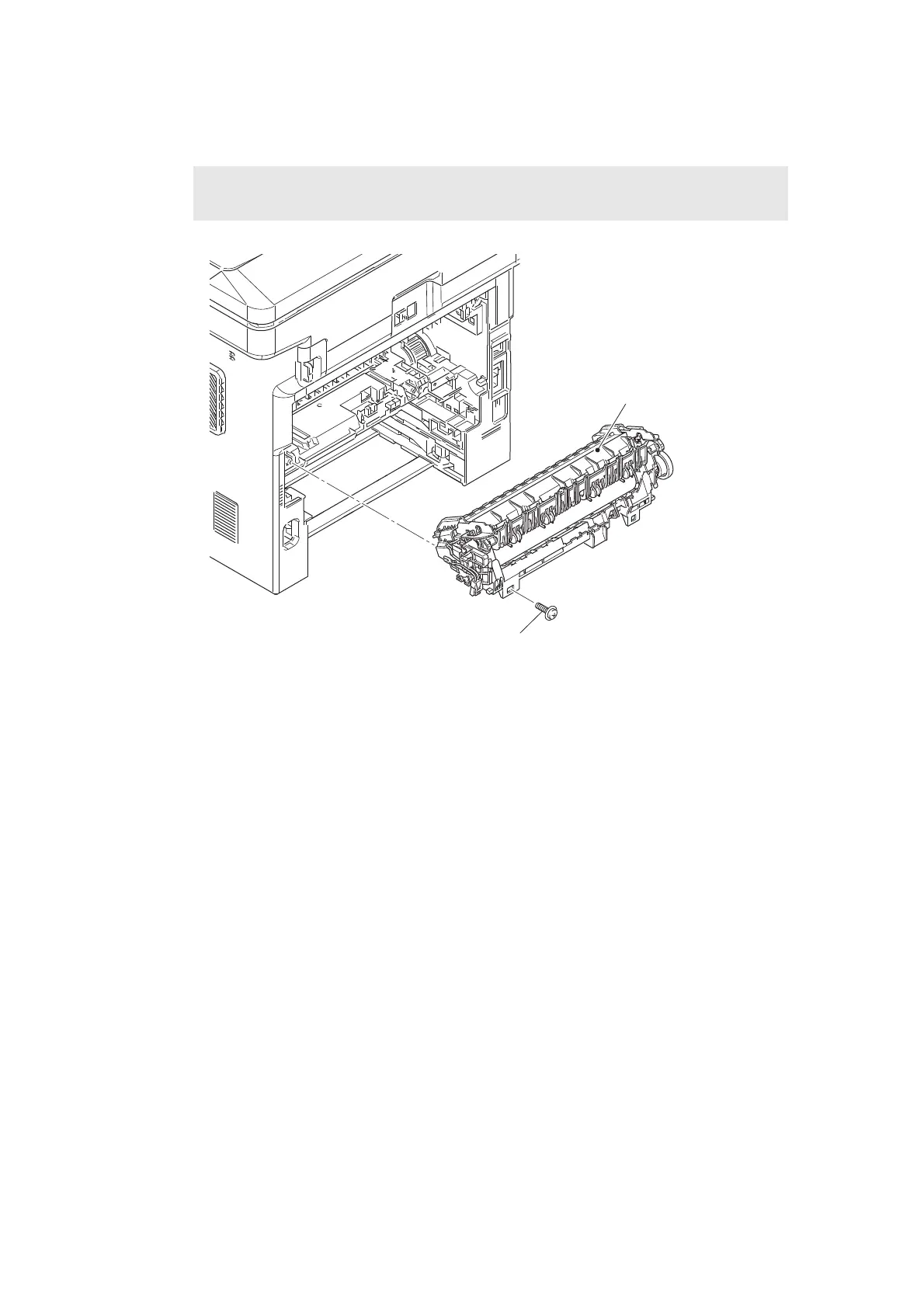

Fig. 3-21

Note:

• Make sure that the front cover is closed when removing the fuser unit.

Fuser unit

Taptite pan B M4x14
