3-44
Confidential

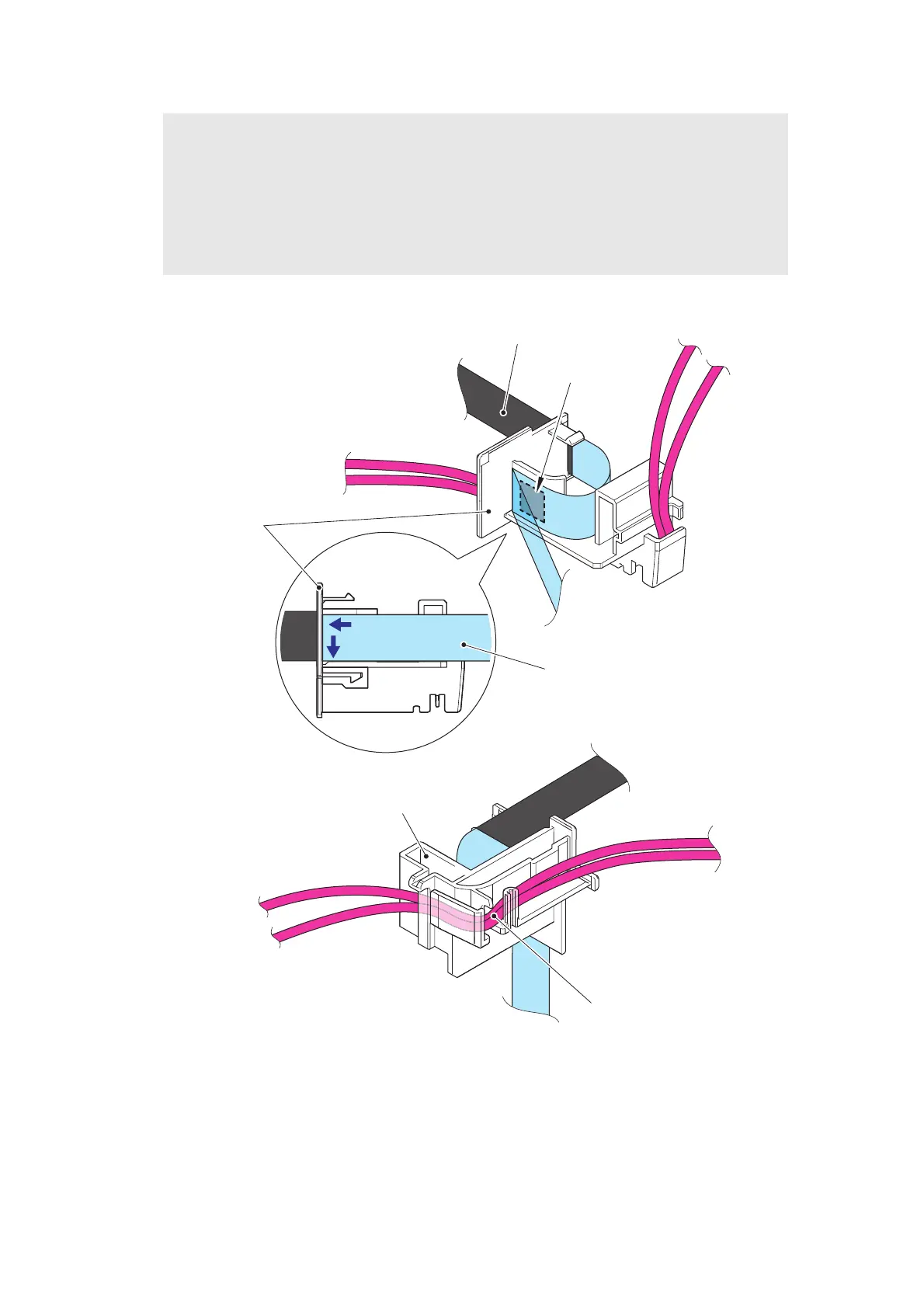

Fig. 3-34
Assembling Note:
• Connect the ADF sensor harness and second side CIS flat cable* to the flat cable
holder as described in the figure below.
• In order to attach the second side CIS flat cable to the flat cable holder, attach it
properly in the direction of the arrows.
• For the sticking position of the double-sided tape, refer to the folding diagram of the flat
cable, Fig. 3-46, Fig. 3-47 and Fig. 3-48.
Second side CIS flat cable*
Flat cable holder
Double-sided tape
ADF sensor harness
* Models with duplex scanning only
Flat cable holder
Second side CIS flat cable*
To Next Page
