(11) Remove the four taptite cup S M3x8 SR screws and four taptite bind B M4x12 screws.
Remove the main frame L ASSY, and pull out the erase lamp harness*, paper empty
sensor harness*, low-voltage power supply harness, eject sensor harness, and HVPS
flat cable from the hole of the main frame L ASSY.

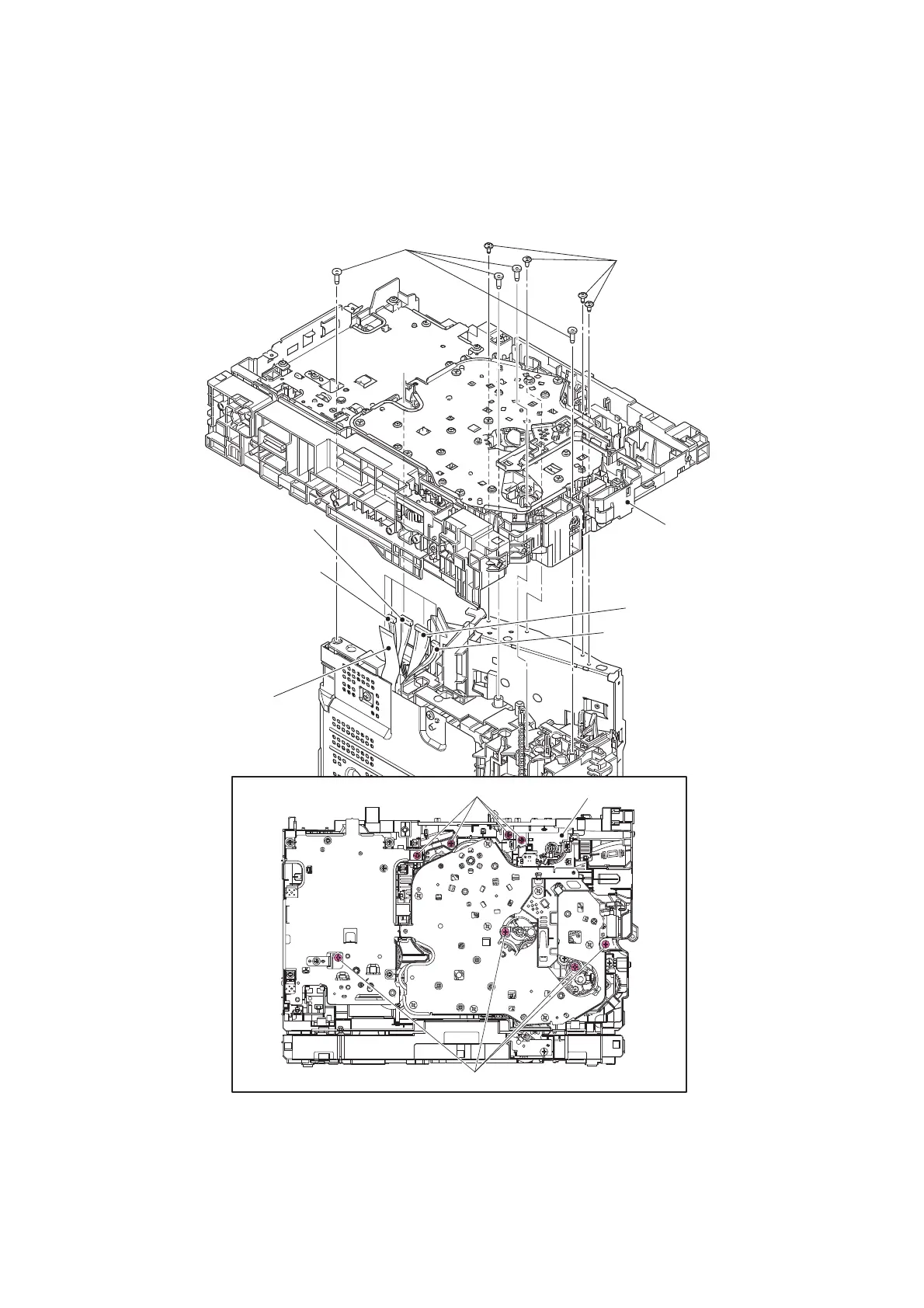

Fig. 3-95
Taptite cup S M3x8 SR
Taptite bind B M4x12
Main frame L ASSY
Low-voltage power
supply harness
Eject sensor harness
HVPS flat cable
Taptite cup S M3x8 SR
Taptite bind B M4x12
Main frame L ASSY
Erase lamp harness*
Paper empty sensor harness*
* Models with 520-sheet T1 only
