9.12 Panel unit
9.12.1Panel unit
(1) Remove the four taptite cup B M3x10 screws.
(2) Release the three hooks to remove the panel unit. Disconnect the panel flat cable from
the panel PCB ASSY.
(3) Release the panel flat cable from the securing fixtures.

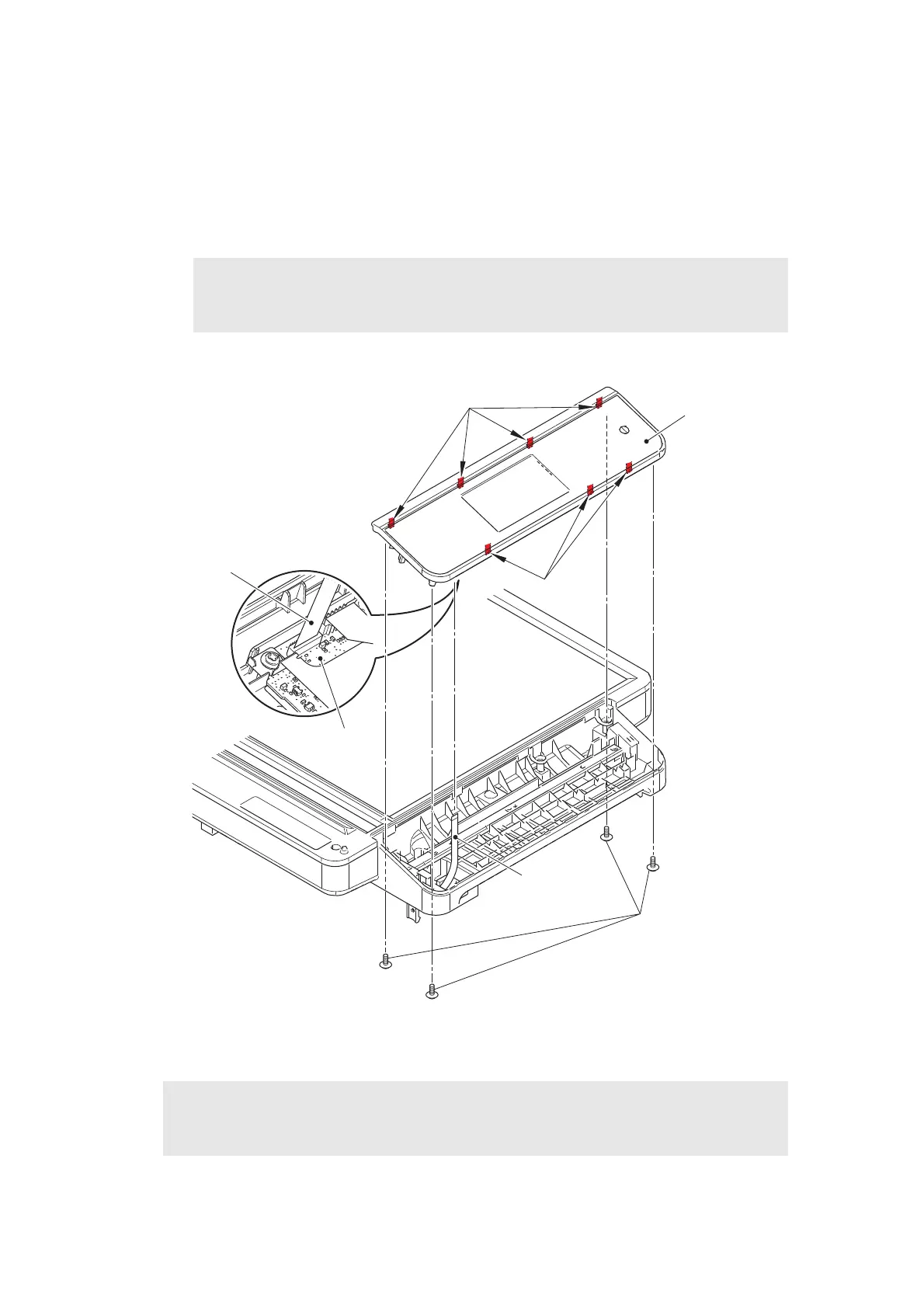

Fig. 3-50
Harness routing: Refer to “5. Document scanner unit”, “6. Panel unit (4.85 inch model)”.
Note:
• Flat cable is connected to the panel unit. Do not pull the panel unit too hard when
removing it.
Assembling Note:
• If you replaced the panel unit, refer to “4. IF YOU REPLACE THE LCD PANEL ASSY
OR PANEL PCB” in chapter 4 and configure the setting.
Panel unit
Hooks
Hooks
Taptite cup B M3x10
Panel PCB ASSY
Panel flat cable
Panel flat cable
