Brother MFC-L6902DW User Manual

3-103
Confidential
9.35 Fuser drive gear 39

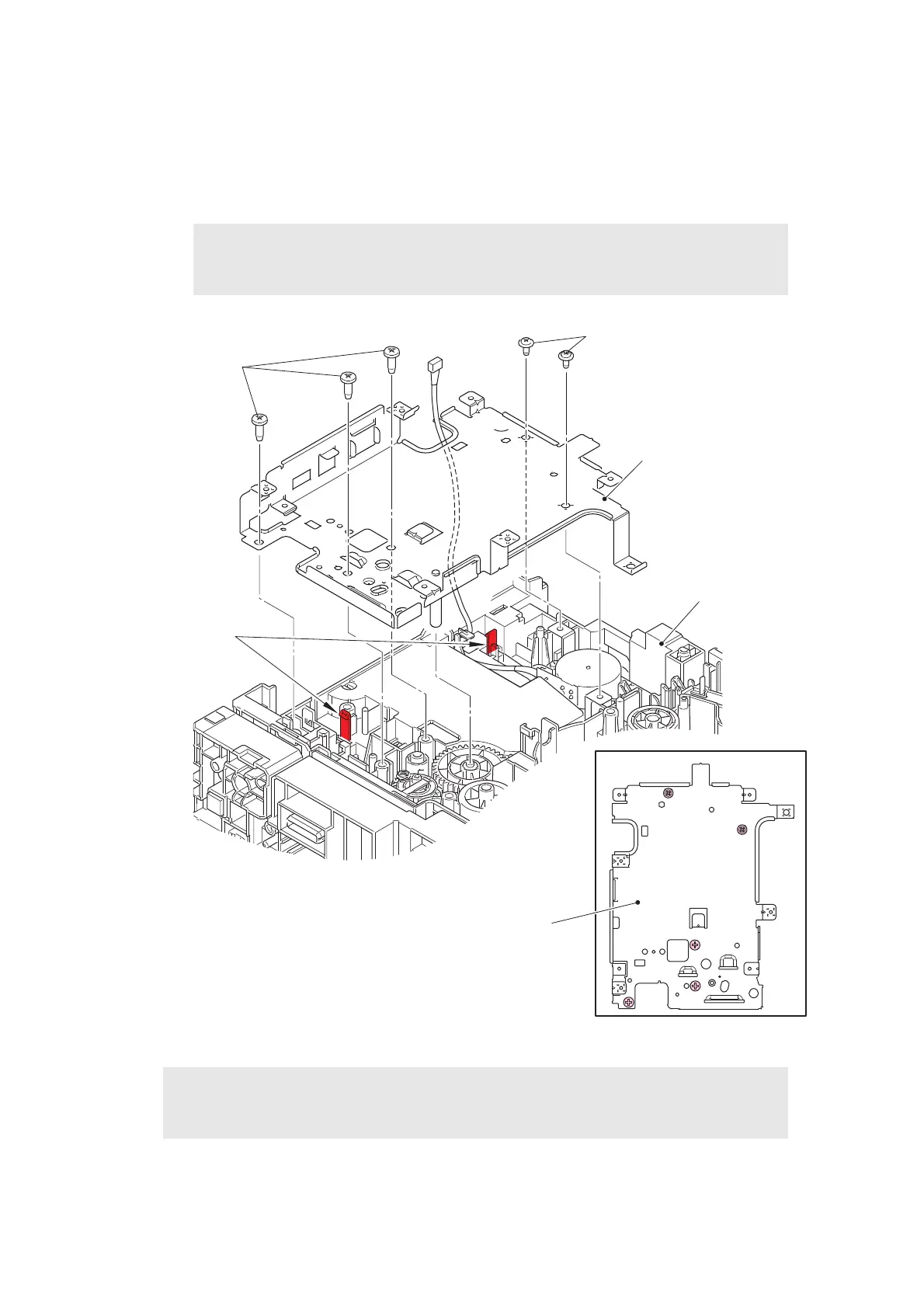

(1) Remove the three taptite bind B M4x12 screws and two taptite cup S M3x8 SR screws.
Release the two hooks to remove the main PCB shield calking ASSY from the main
frame L ASSY.
Fig. 3-103
Note:
• Do not allow the metallic gear shaft of the main PCB shield calking ASSY to face
down. Failure to observe this may cause the steel plate to bend.
Assembling Note:
• When securing the main PCB shield calking ASSY with screws, tighten the screws in
the sequence of the numbers engraved on the main PCB shield calking ASSY.
Taptite cup S M3x8 SR
Taptite bind B
M4x12
Main PCB shield calking ASSY
Main frame L ASSY
Hooks
2
4
1
3
Main PCB shield calking ASSY
5

Brother MFC-L6902DW Specifications

General

Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Display	4.85" Color Touchscreen
Paper Input Capacity	570 sheets
ADF Capacity	80 sheets
Functions	Print, Copy, Scan, Fax
Processor	800 MHz
Memory	1 GB
Scan Resolution	1200 x 1200 dpi
Fax Speed	33.6 Kbps
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	AirPrint, Google Cloud Print, Mopria, Brother iPrint&Scan
Print Speed	Up to 52 ppm - B/W (letter A)
