Brother MFC-L6902DW User Manual

3-105
Confidential
9.36 Eject motor
(1) Release the eject motor harness from the securing fixtures.
(2) Remove the two taptite bind B M3x10 screws, and remove the eject motor plate from the
main frame L ASSY.
(3) Remove the screw bind M3x4 screw. Turn the eject motor in the direction of the arrow,
and remove it from the eject motor plate.
(4) Disconnect the eject motor harness from the eject motor.

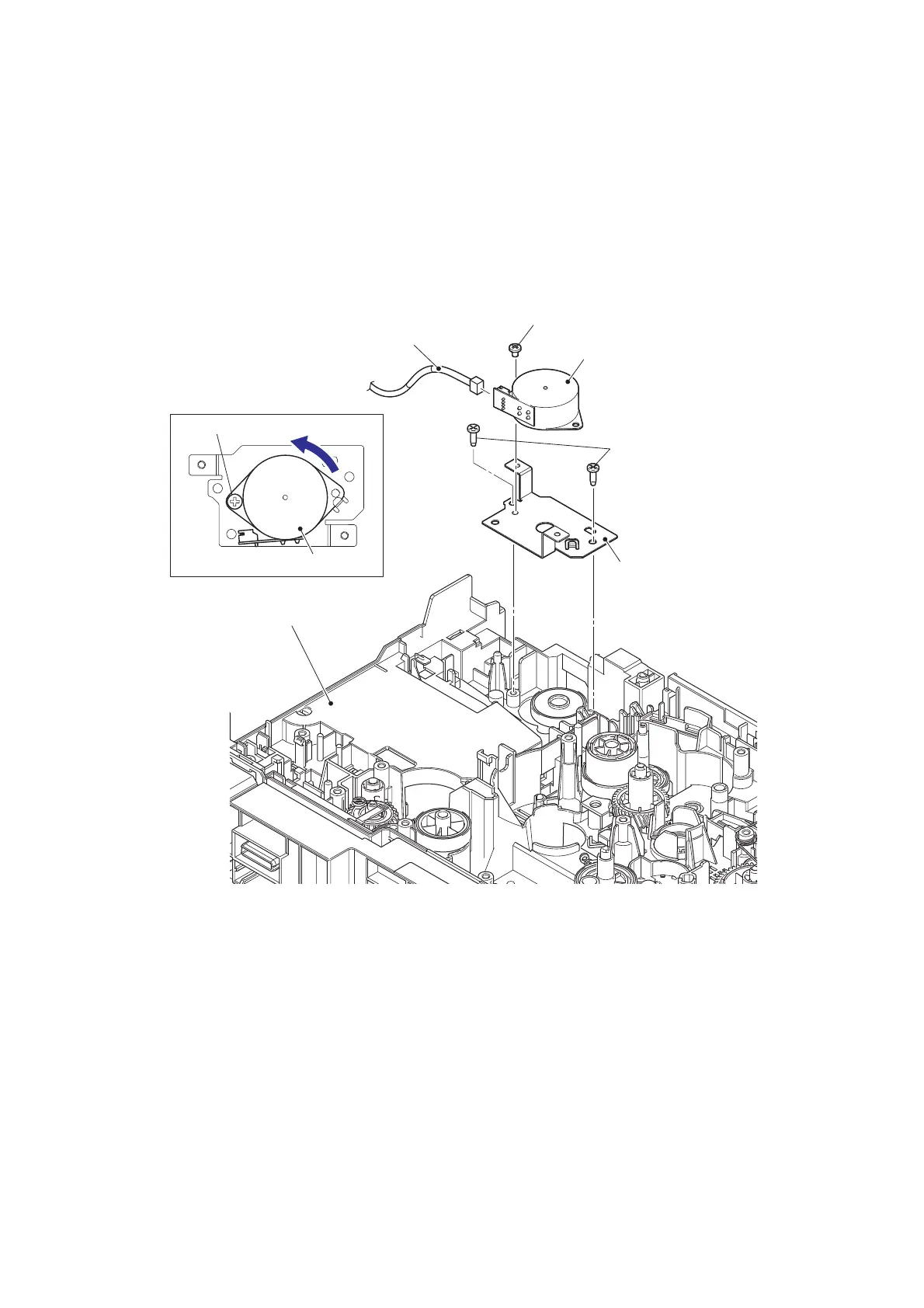

Fig. 3-105
Harness routing: Refer to “10. Left side of the machine”.
Eject motor
Main frame L ASSY
Taptite bind B M3x10
Eject motor harness
Screw bind M3x4
Screw bind M3x4
Eject motor
Eject motor plate
