3-62
Confidential
9.12.4Touch panel ASSY
(1) Disconnect the touch panel flat cable from the key PCB ASSY.
(2) Remove the touch panel ASSY from the panel unit.

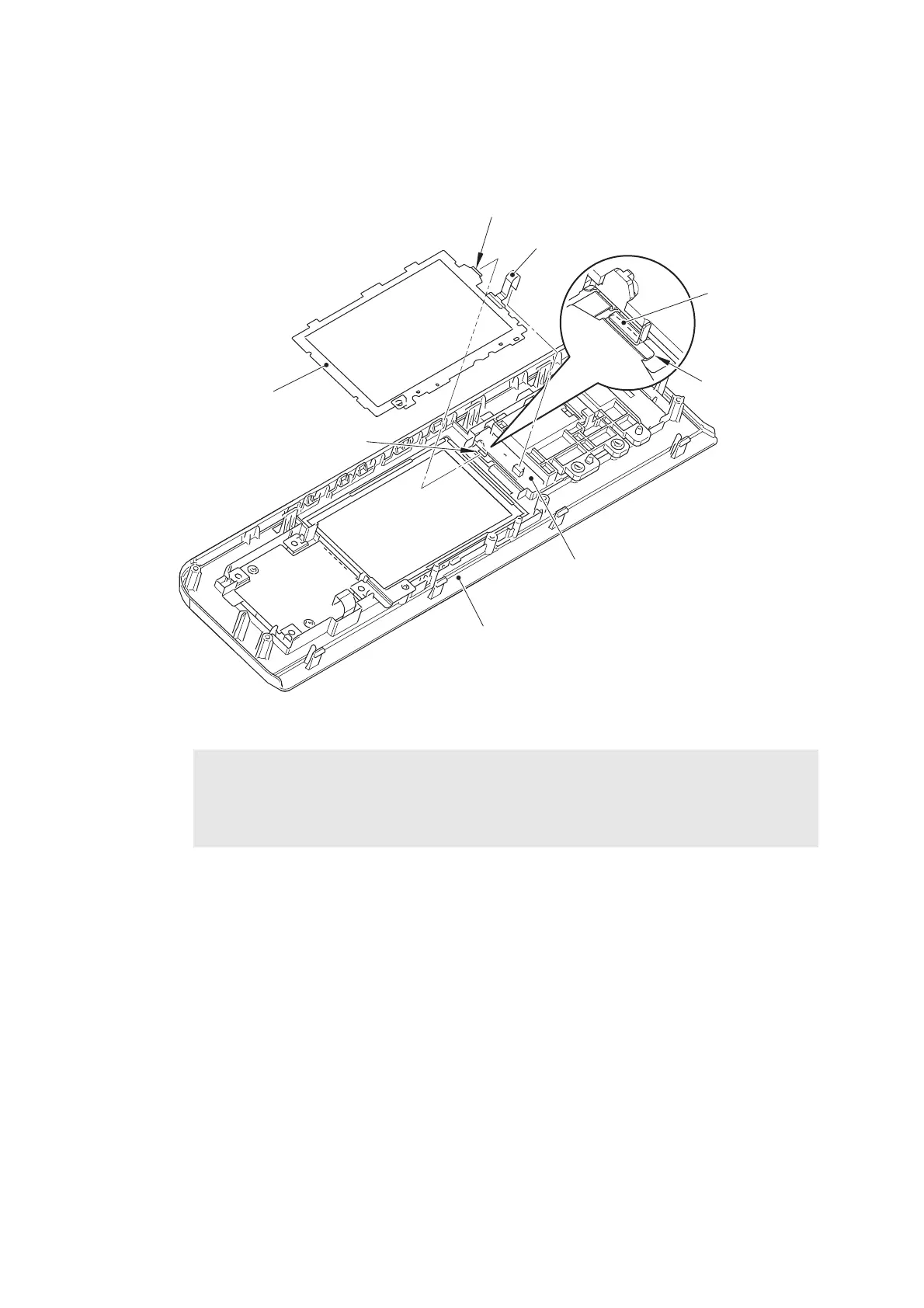

Fig. 3-56
Assembling Note:
• When assembling the touch panel ASSY, put the section A under the plate.
• If you replaced the touch panel ASSY, refer to “4. IF YOU REPLACE THE LCD PANEL
ASSY OR PANEL PCB” in chapter 4 and configure the setting.
Touch panel flat cable
Key PCB ASSY
Panel unit
Touch panel ASSY
Plate
A
A
Plate

Brother MFC-L6902DW Specifications

General

Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Display	4.85" Color Touchscreen
Paper Input Capacity	570 sheets
ADF Capacity	80 sheets
Functions	Print, Copy, Scan, Fax
Processor	800 MHz
Memory	1 GB
Scan Resolution	1200 x 1200 dpi
Fax Speed	33.6 Kbps
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	AirPrint, Google Cloud Print, Mopria, Brother iPrint&Scan
Print Speed	Up to 52 ppm - B/W (letter A)
