Brother MFC-L6902DW User Manual

7-3
Confidential

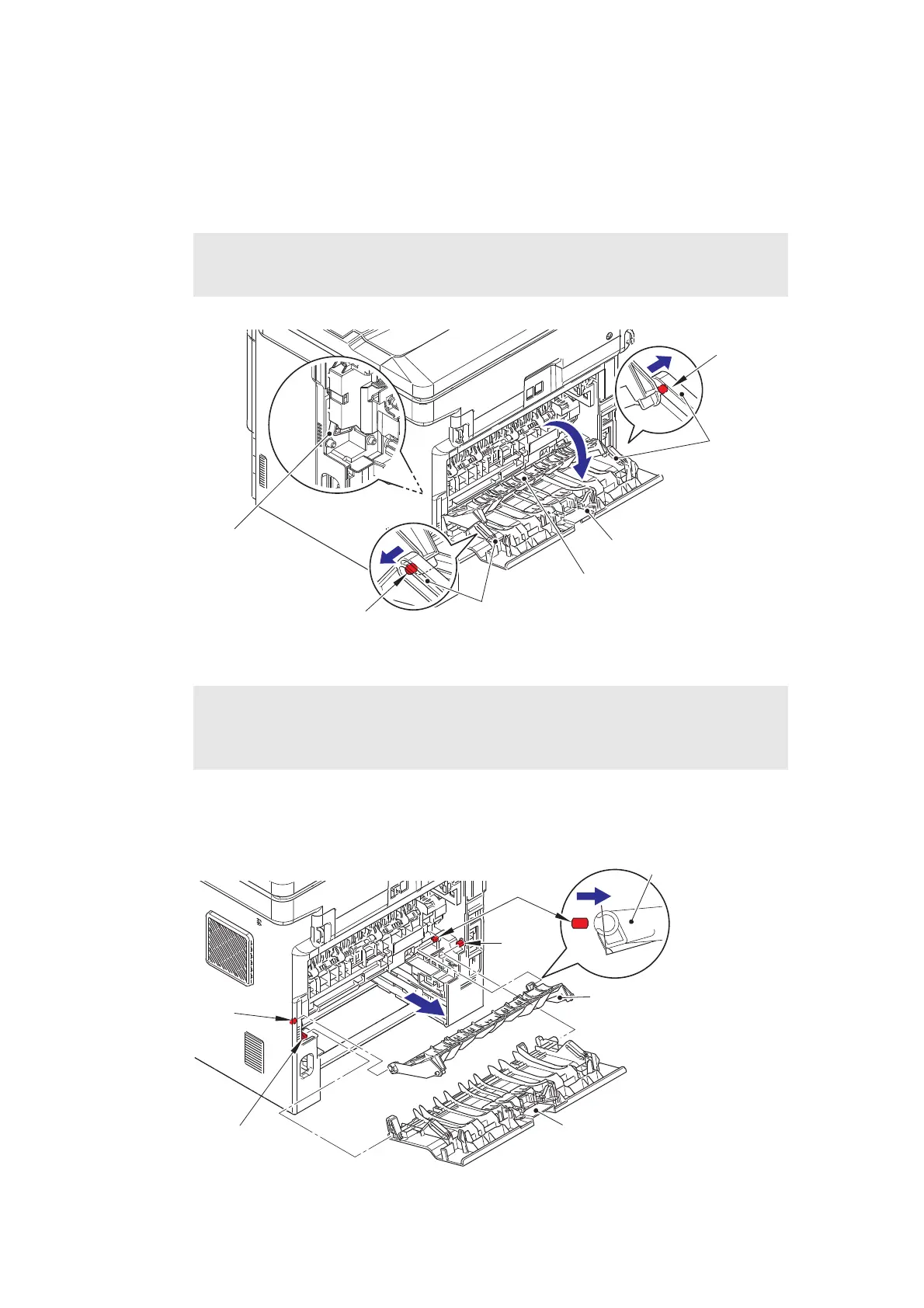

2.2 Fuser unit
(1) Open the back cover.
(2) Push both ribs of the back cover in the direction of the arrows, and remove the two
bosses on the outer chute.
Fig. 7-2
(3) Remove the back cover from the boss A, and remove the back cover.
(4) Open the outer chute approximately 80 degrees. Remove the outer chute from boss B,
and remove the outer chute from the machine.
Fig. 7-3
Note:
• Be careful not to damage the ribs inside the back cover.
Assembling Note:
• When attaching the back cover, open the front cover and attach the back cover
while lifting the rear nip release link.
Back cover
Outer chute
Rib
Boss
Boss
Rib
Rear nip release link
Outer chute
Back cover
Boss B
Boss A
80°
Outer chute
Boss A
Boss B

Brother MFC-L6902DW Specifications

General

Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Display	4.85" Color Touchscreen
Paper Input Capacity	570 sheets
ADF Capacity	80 sheets
Functions	Print, Copy, Scan, Fax
Processor	800 MHz
Memory	1 GB
Scan Resolution	1200 x 1200 dpi
Fax Speed	33.6 Kbps
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	AirPrint, Google Cloud Print, Mopria, Brother iPrint&Scan
Print Speed	Up to 52 ppm - B/W (letter A)
