10.9 LT connector ASSY / LT connector upper
(1) Release the hook, and remove the core from the LT frame L unit.
(2) Release the two hooks A, and slide the LT connector ASSY in the direction of the arrow
to remove it from the LT frame L unit.
(3) Release the two hooks B to disconnect the LT connector harness from the LT connector
ASSY.
(4) Release the two hooks C, and remove the LT connector upper from the LT frame L unit.
(5) Release the two hooks D to disconnect the LT connector upper harness from the LT
connector upper.

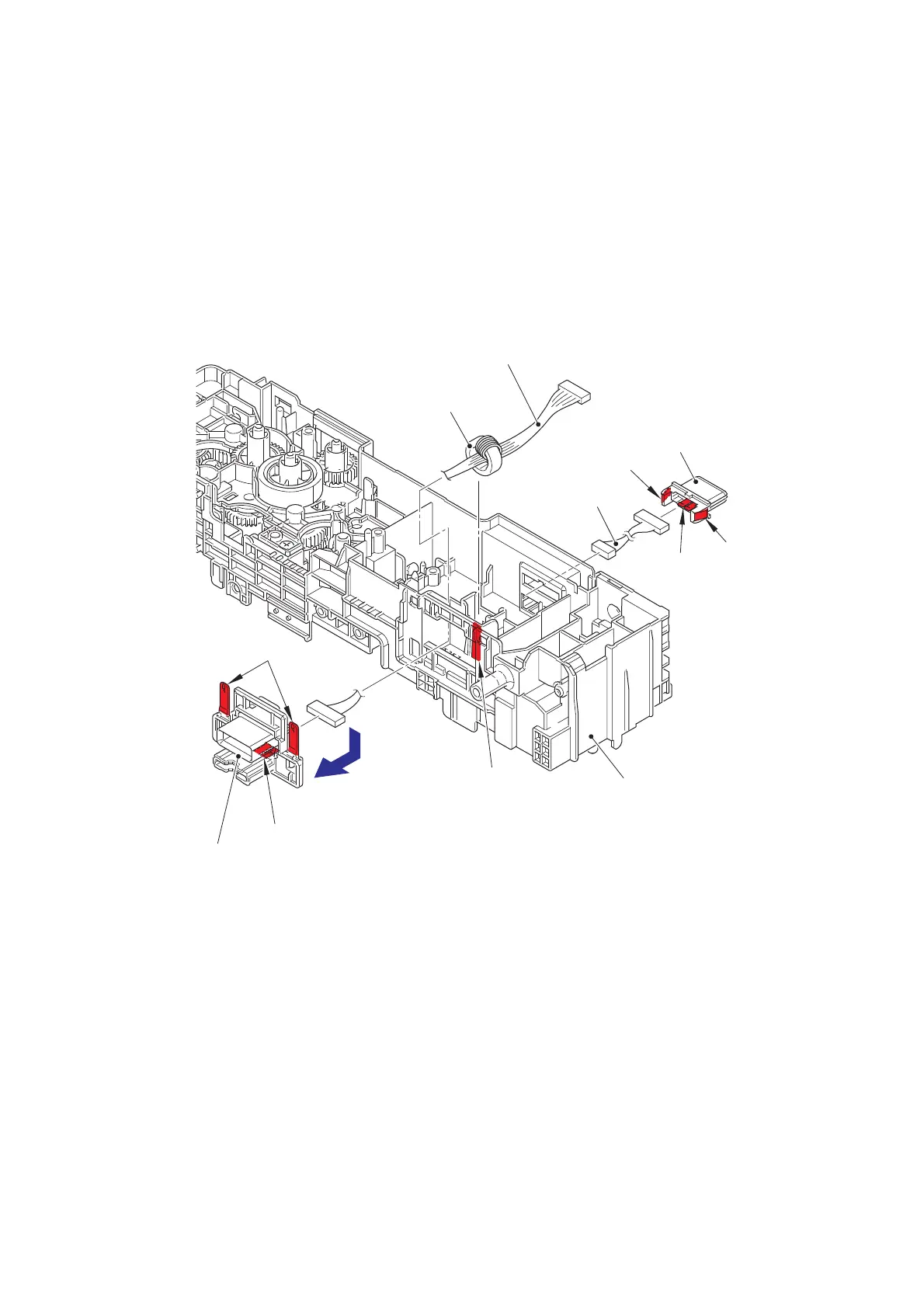

Fig. 3-135
Core
LT connector upper
LT frame L unit
LT connector ASSY
Hook C
Hook
Hooks A
Hooks D
LT connector harness
Hooks B
Hook C
LT connector
upper harness
