3-117
Confidential
(5) Turn MP paper empty actuator 2 in the direction of the arrow 5a, and push the hook in
the direction of the arrow 5b to slide MP paper empty actuator 1 in the direction of the
arrow 5c to remove it from the MP feed frame in the direction of the arrow 5d.
(6) Turn MP paper empty actuator 2 in the direction of the arrow 5a, and remove it from the
MP feed frame in the direction of the arrow 6.
(7) Remove the taptite bind B M3x10 screw. Remove the MP paper empty sensor PCB
ASSY from the MP feed frame, and pull out the MP paper empty sensor harness from
the hole.

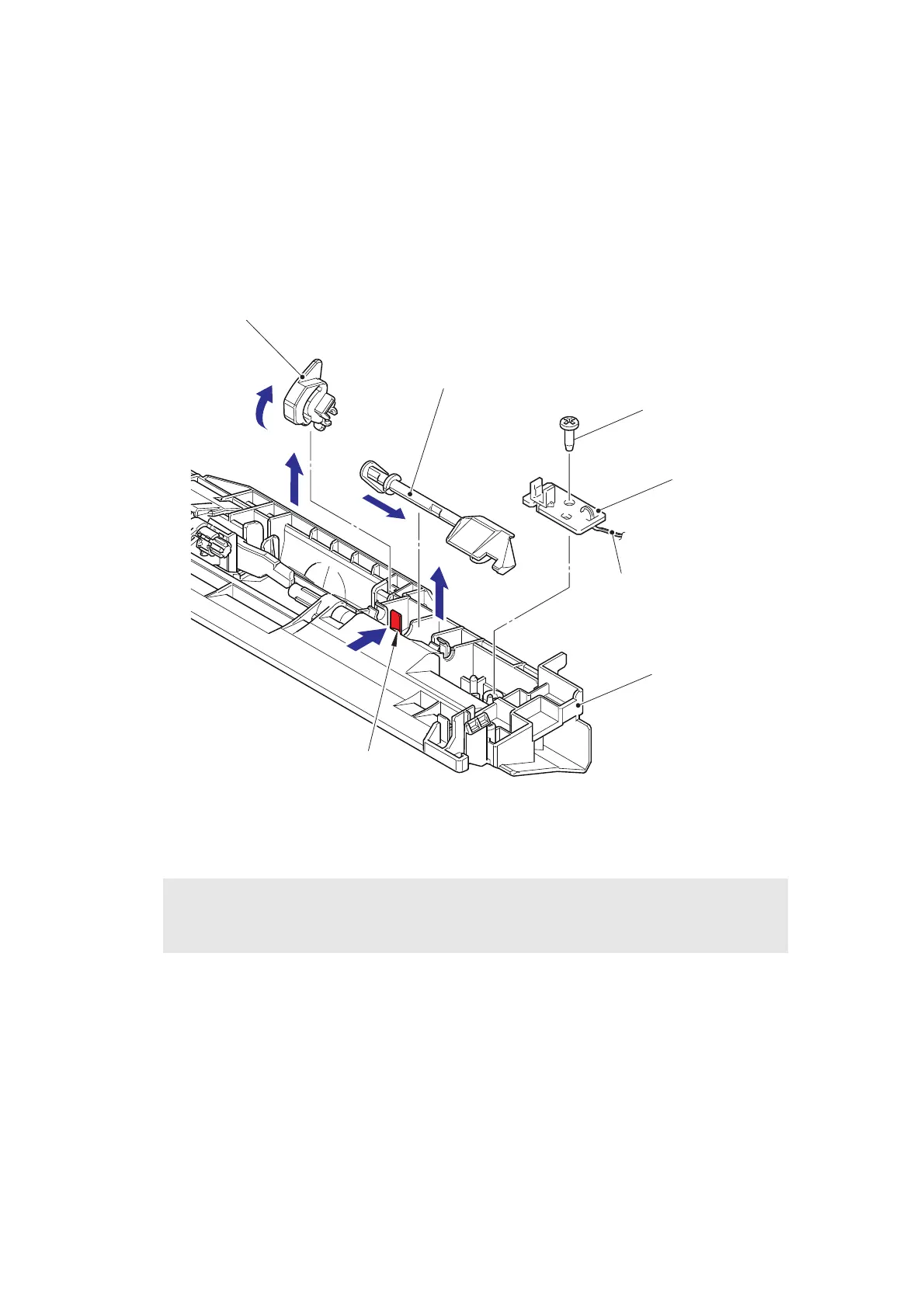

Fig. 3-118
Assembling Note:
• Insert the end of MP paper empty actuator 1 into the groove on the MP paper empty
actuator 2.
Taptite bind B M3x10
MP paper empty sensor
PCB ASSY
MP feed frame
Hook
MP paper empty actuator 2
MP paper empty actuator 1
6
5c
5d
5a
5b
MP paper empty sensor harness
